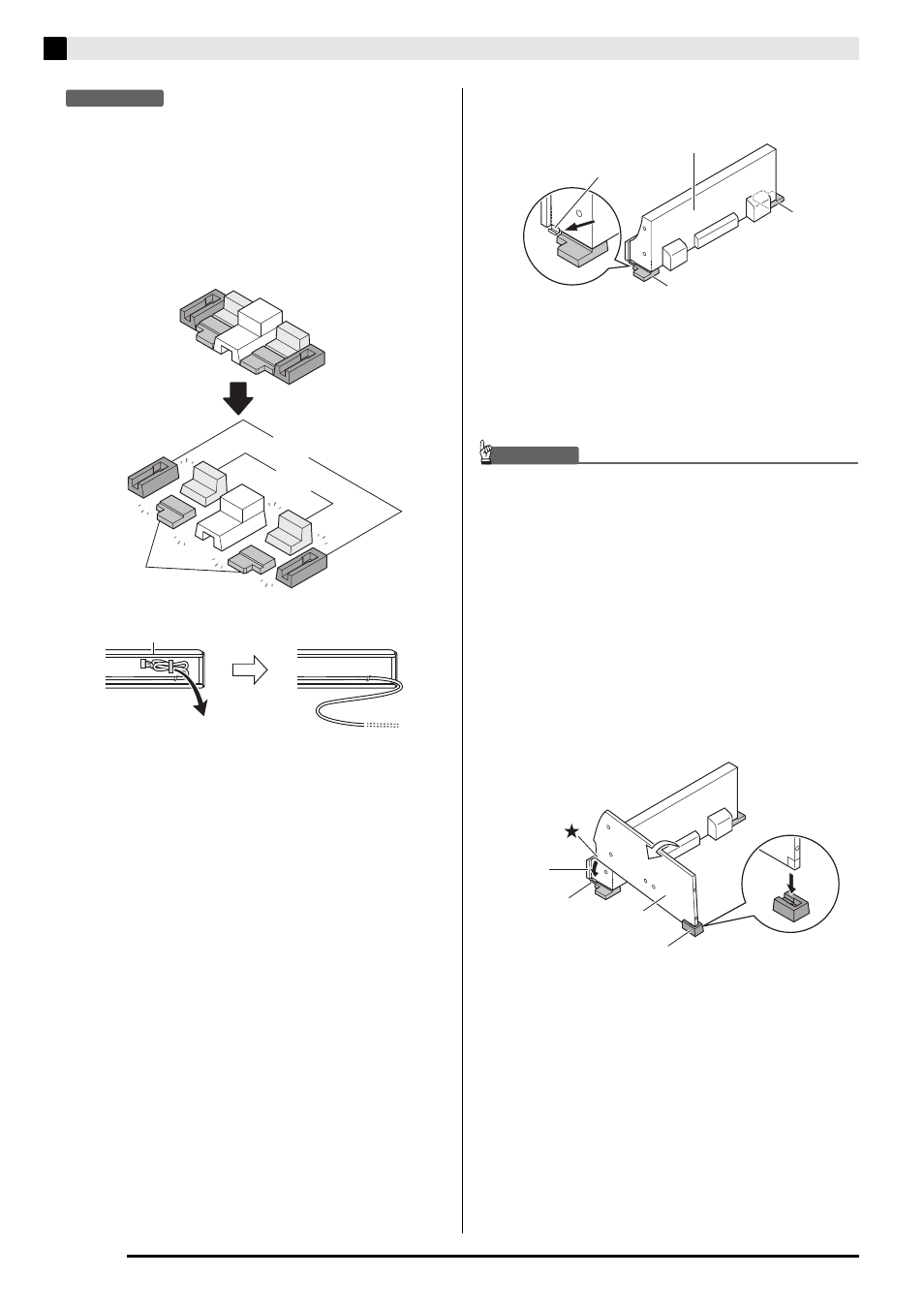

Assembling the Stand

PREPARATION

• Before starting assembly of the stand, divide the

polystyrene foam packing material L into the
sections as shown in the illustration below. After
dividing up the material, you should end up with a
total of six pieces named L

-(a)

, L

-(b)

, and L

-(c)

, which

you will use while assembling the stand.

• If you do not have any packing material available for

some reason, use a magazine or some other thick
item.

• Pull the pedal unit cable out from the pedal unit F.

1.

Place the digital piano onto the two

L

-(a)

foam pieces.

* Make sure that the edges of the brackets on either

side of the digital piano are positioned at the top of
the foam pieces.

2.

Perform the following steps to attach side
panel

A

to the digital piano.

IMPORTANT!

• When inserting the corner of the side panel into the

bracket on the side of the digital piano in step (2-3)
below, take care to avoid damaging the side panel
corner (

). Never try to insert the side panel into the

bracket without first tilting the side panel at an angle
as instructed in step (2-2). Doing so creates the risk
of damage of the side panel corner.

L

-(a)

L

-(b)

L

-(c)

F

(2-1) On side panel

A

, locate the corner that has a metal

piece attached to it, and then insert that corner
into foam piece

L

-(b)

.

(2-2) Tilt side panel

A

slightly as indicated by the

arrow in the illustration.

(2-3) Keeping side panel

A

tilted at an angle, carefully

insert the opposite corner (

) into the bracket on

the side of the digital piano.

L

-(a)

L

-(a)

Bracket

*

Bottom of the digital piano

L

-(b)

A

(2-1)

(2-2)

(2-3)

Bracket
