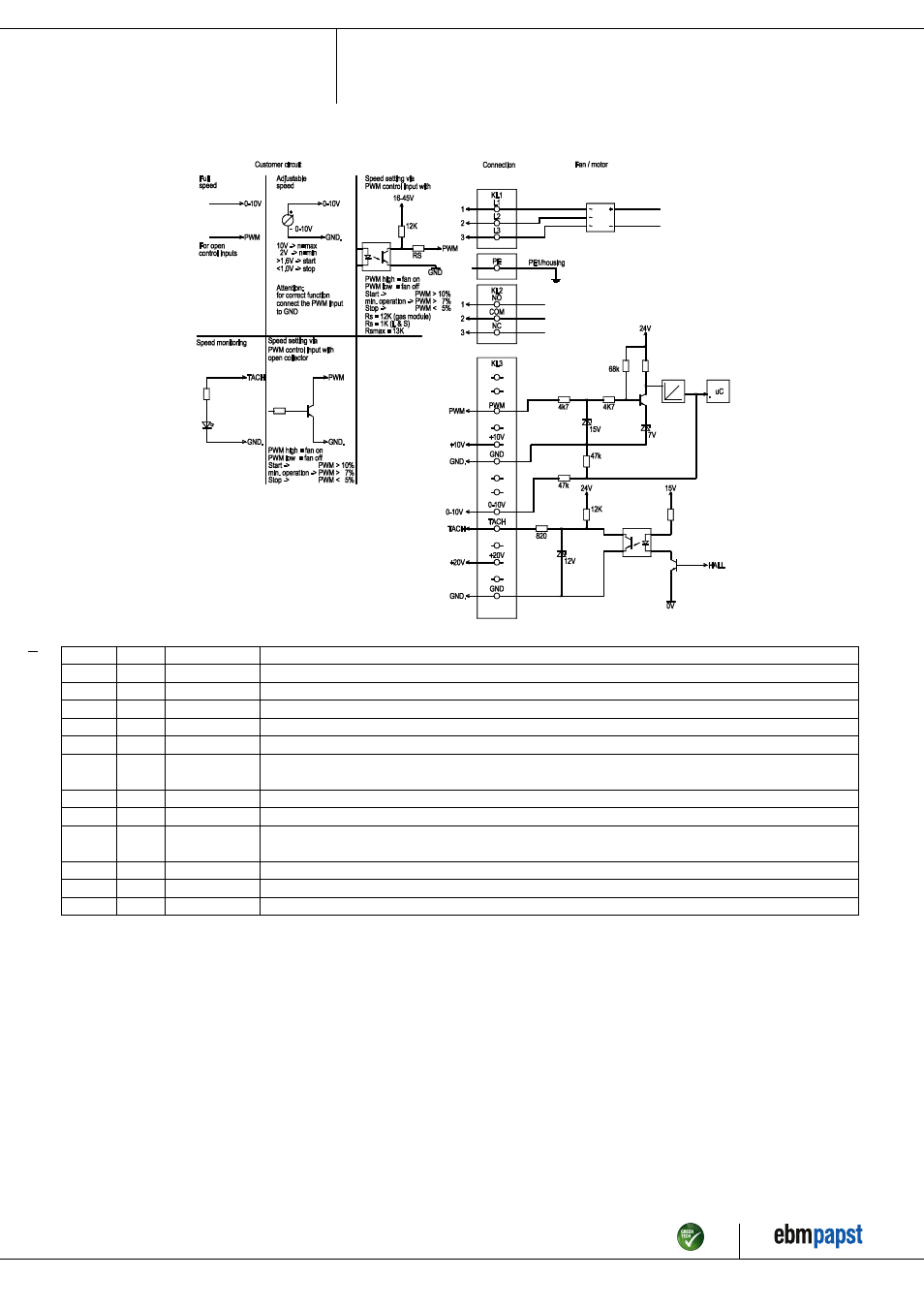

4.5 Connection screen
No. Conn. Designation Function / assignment
1 1,2,3 L1,L2,L3 Power supply 3-phase, 50/60 Hz
PE Protective earth
2 1 NO Alarm relay, make for failure
2 2 COM Alarm relay, common connection (2A, 250VAC,AC1)
2 3 NC Alarm relay, break for failure
3 PWM PWM Set value input via PWM; 16-45 V high level; 1-10 kHz; can be used exclusively as an alternative to
connection 0-10 V
3 GND GND Signal ground for control interface
3 GND GND Signal ground for control interface
3 0 - 10 V 0 - 10 V Analogue setpoint input, 0 - 10 V (impedance 100 kΩ), can be used exclusively as an alternative to
connection PWM; for correct function, the PWM input must be bridged with GND.
3 + 20 V + 20 V Supply for external sensor; 20 VDC(±20%) max. 50 mA
3 + 10 V + 10 V Supply for external potentiometer, 10 VDC(±10%) max. 10 mA
3 Tach Tach Speed monitoring output; 12 VDC(±10%) max. 10 mA; impedance 1 kΩ; 4 pulses / revolution
