Operating instructions R4D310-CK03-01
Translation of the original operating instructions

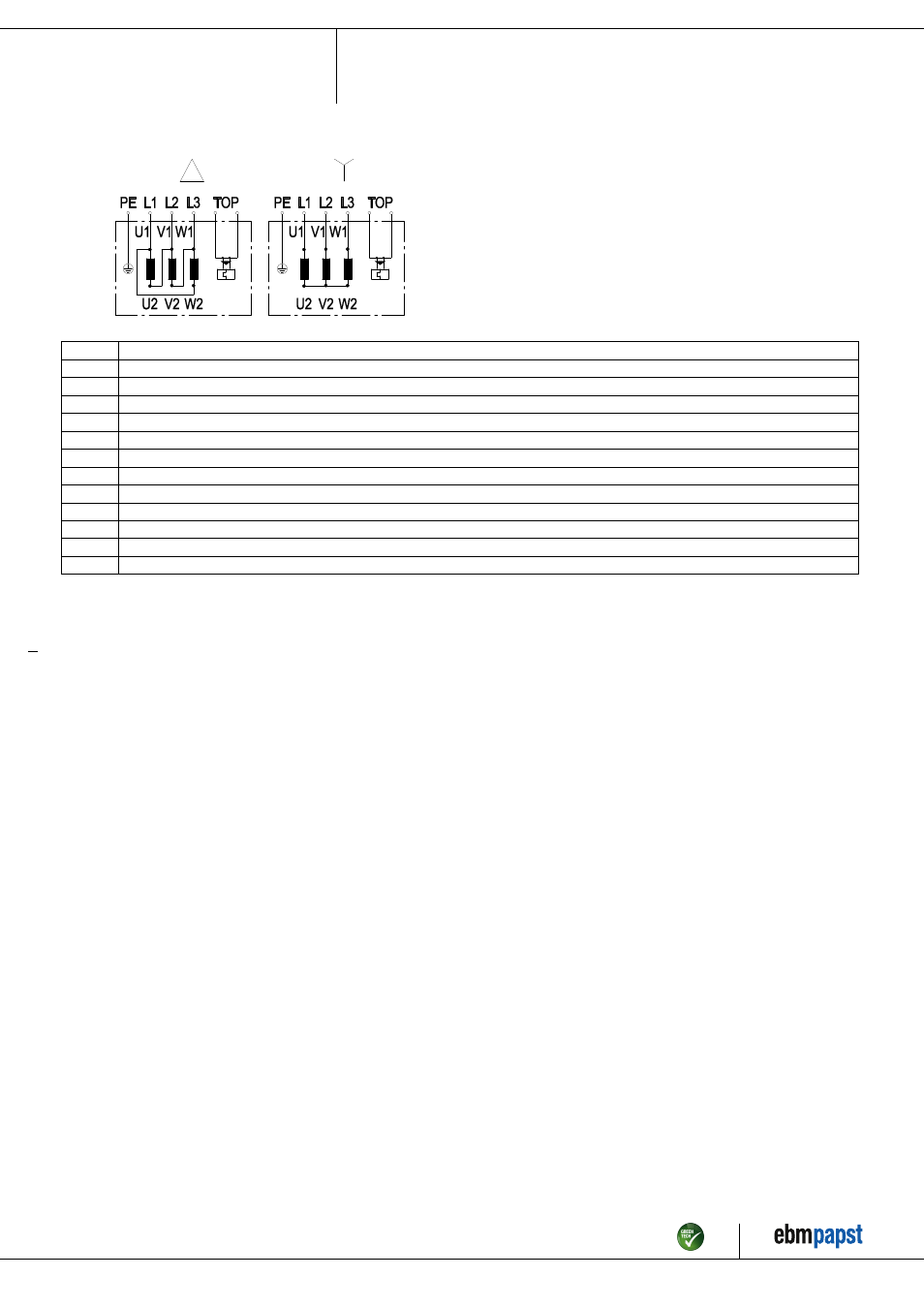

4.4 Connection screen
Δ Delta connection
Y Star connection
L1 black
L2 blue
L3 brown
U1 black
V1 blue
W1 brown
U2 green
V2 white
W2 yellow
TOP 2xgrey
PE green/yellow
