Operating instructions R4D310-CK03-01
Translation of the original operating instructions
3. TECHNICAL DATA

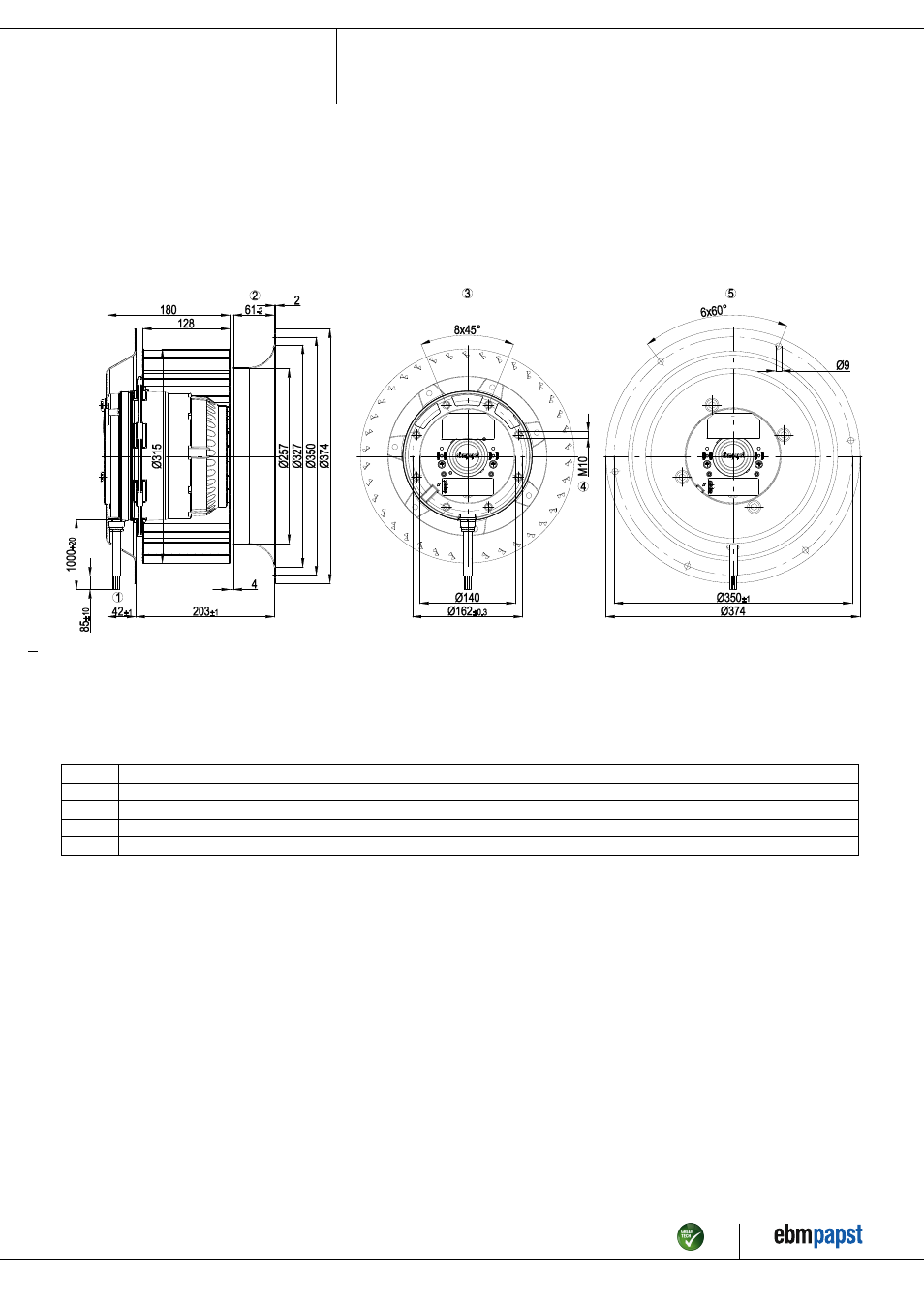

3.1 Product drawing
All measures have the unit mm.
1 Connection line halogen-free, 9 x 0.75 mm², 9 x brass lead tips crimped
2 Accessory part: Inlet nozzle 31010-2-4013 and flange 38310-2-4017 not included in the standard scope of delivery
3 View without flange
4 Depth of screw max. 18 mm
5 View with flange
