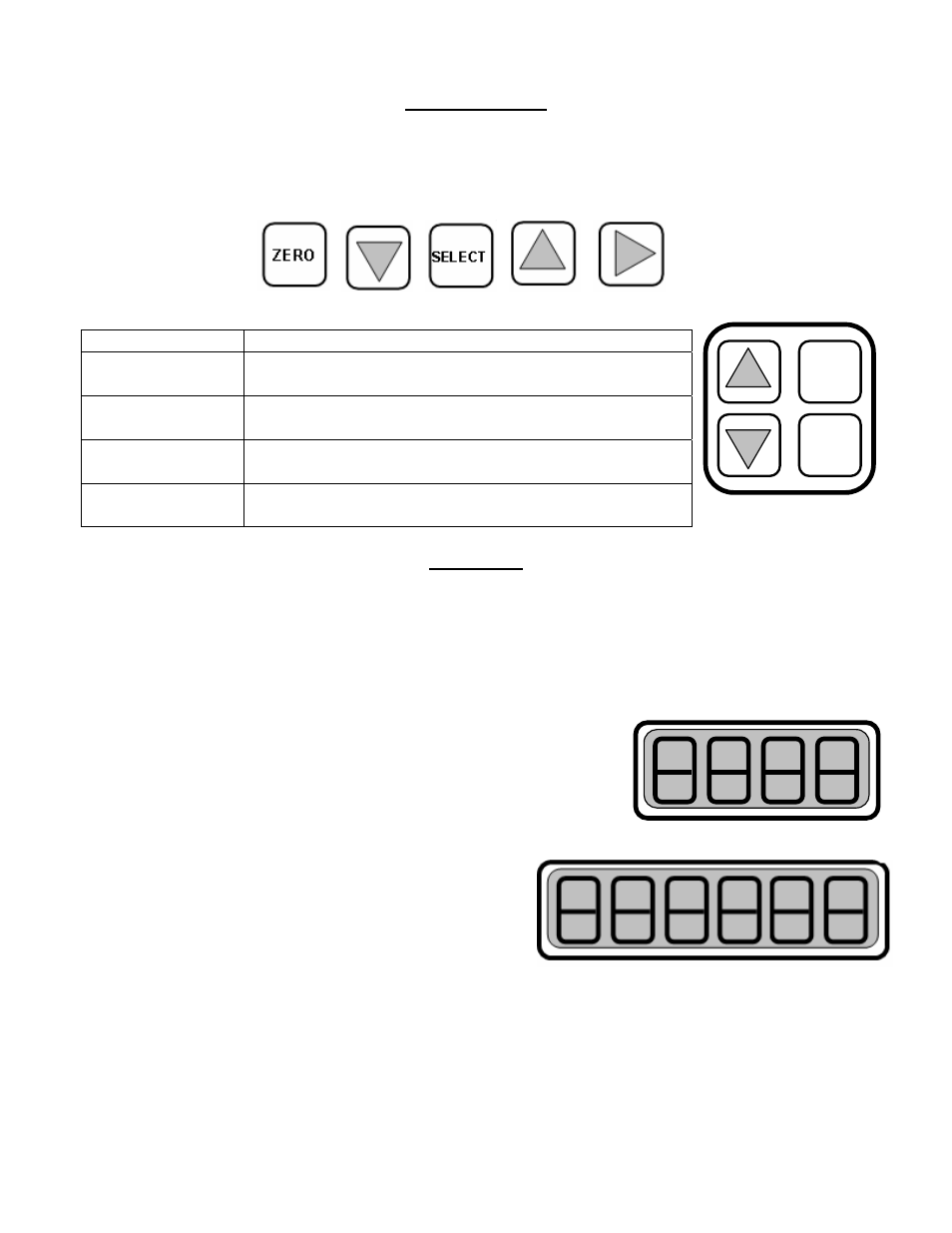

PUSHBUTTONS
The EI-2000 has a set of pushbuttons for each of the two channels, and the EI-1000 has one
set of pushbuttons that control up to four channels (scale bases). The pushbutton functions
listed below describe their typical uses. However, when applicable, the pushbutton(s) may be
used for other functions, which is documented in this manual.
ZERO
Press to zero the gross or used weight.
DOWN ARROW Press to decrement (decrease) the value displayed
if it’s adjustable.
SELECT
Select gross, tare, remaining, etc. This pushbutton
is used for many other functions, as well.
UP ARROW
Press to increment (increase) the value displayed if
it’s adjustable.
RIGHT ARROW EI-1000 only: Selects a channel or exits from front
panel configuration/calibration access.
DISPLAYS
SELECT
ZERO
EI-1000 PUSBUTTONS
EI-2000 PUSHBUTTONS
The main operating mode of the meter is, of course, viewing the weight on the scale(s)
connected to each channel. One can select, via the appropriate SELECT pushbutton, several
weight values; they are as follows:
Gross weight
This is the total weight on the scale, which includes the weight
of the container (e.g., cylinder, tank, or barrel) and the weight of
e product.
e weight of the container (e.g., cylinder, tank, or
arrel).
the product (e.g., Chlorine) that
e container holds.
s with decreasing weight on the scale since
represents the amount of product used so far.
th
Tare weight
This is th
b
Remaining weight (a.k.a. net weight)
This is the weight of
th
Used weight
This is the weight of the amount used since the scale was last zeroed, which is done by
either “starting” the channel (operating modes 2, 3, and 4) or pressing the ZERO pushbutton
while viewing this display. The EI-2000 display will alternate between a “USEd” message and
the actual used weight value. This value increase
it
