Eagle Microsystems WT3600 User Manual
Page 4
2.4
INSTALLATION
1. The WT3600 is “rolled up” prior to packaging and shipment. Prior to installation, the scale assembly
must be “unrolled” so that the flexible conduit is straight on either side of the junction box. Rollers
should face upward.

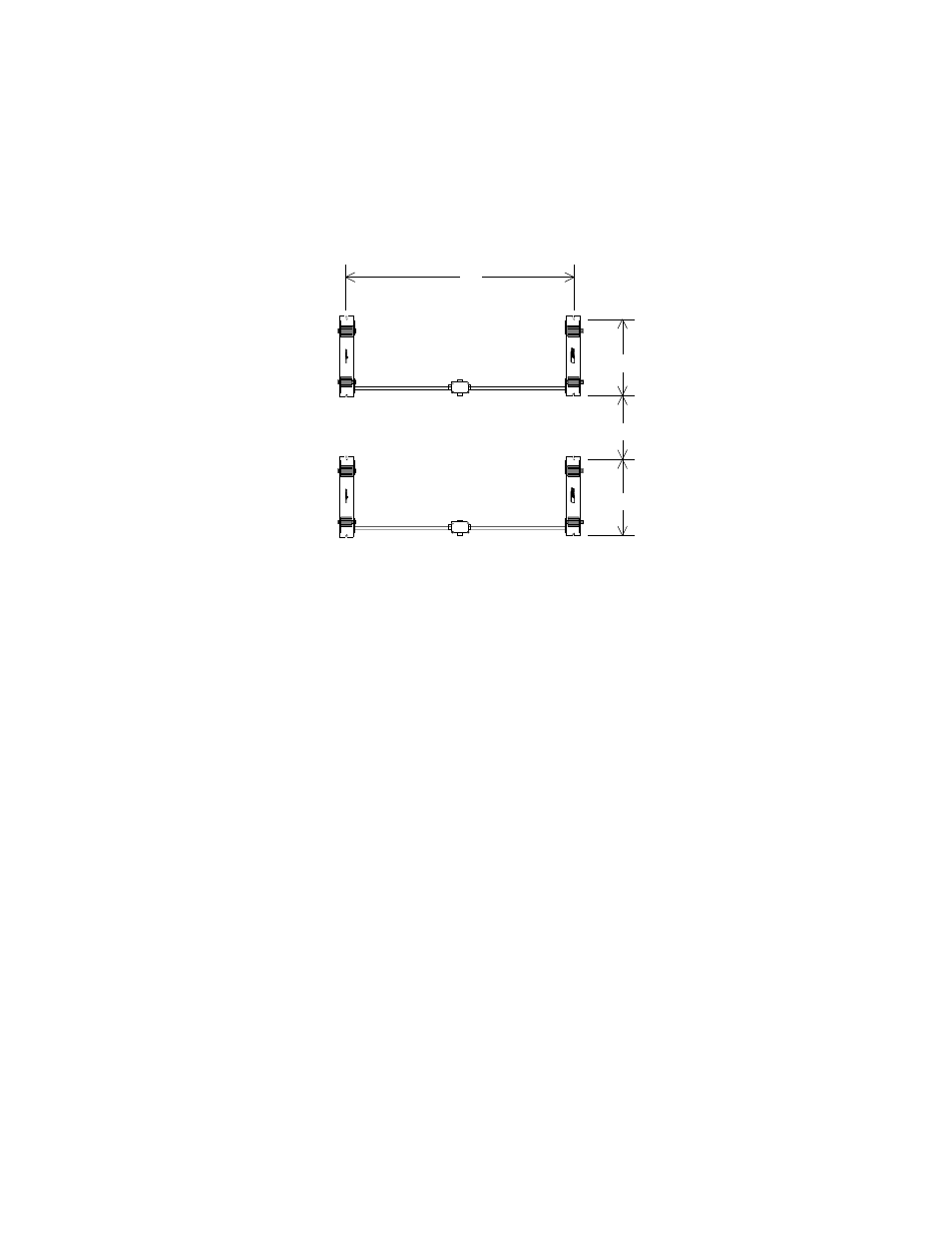

FIGURE 1: Anchor Bolt Spacing
2.
Figure 1. shows the mounting pattern for four 7/16” diameter mounting studs (by others) as well as
the minimum spacing between weigh trunnions for multiple trunnion applications.
3. Mounting tab on the base of each trunnion assembly is 3/4” high. 7/16” mounting studs should
extend no more than 1 3/8” above the floor.
4.
For good scale performance and easy roller operation, care should be taken to ensure that
the two ends of the WT3600 are parallel, concentric and level with each other. If
necessary, use grout to achieve this.
57"
19"
17"
19"
