DVI-7313
DVI-7314
4K Fiber Optic Extenders, 1x LC Quick Start Guide
Introduction
The DVI-7313 and DVI-7314 are high performance 4K Optical Extenders that transmit high resolution
DVI / HDMI signals over extreme distances using a single fiber optic cable. These extenders support
HDMI v1.4 (non-HDCP) signals with resolutions up to 4K (4096x2160 / 30p) over cable distances
up to 1640 ft. (DVI-7313) and up to 1.2 miles (DVI-7314). Each extender set consists of an optical
transmitter module that converts the DVI / HDMI signals into light pulses for transmission over a single
strand of optical fiber cable. An optical receiver module converts the light pulses back to a DVI / HDMI
signal for display on a monitor or projector. The transmitter unit includes an internal EDID memory
that can acquire and store the EDID from any display. The DVI-7313 supports Multi-Mode optical fiber,
while the DVI-7314 supports both Multi-Mode and Single-Mode fiber optic cable. These features make
the DVI-7313 and DVI-7314 the ideal future-proof choices for systems designers and integrators who
need to transmit high resolution DVI / HDMI signals over extreme distances.

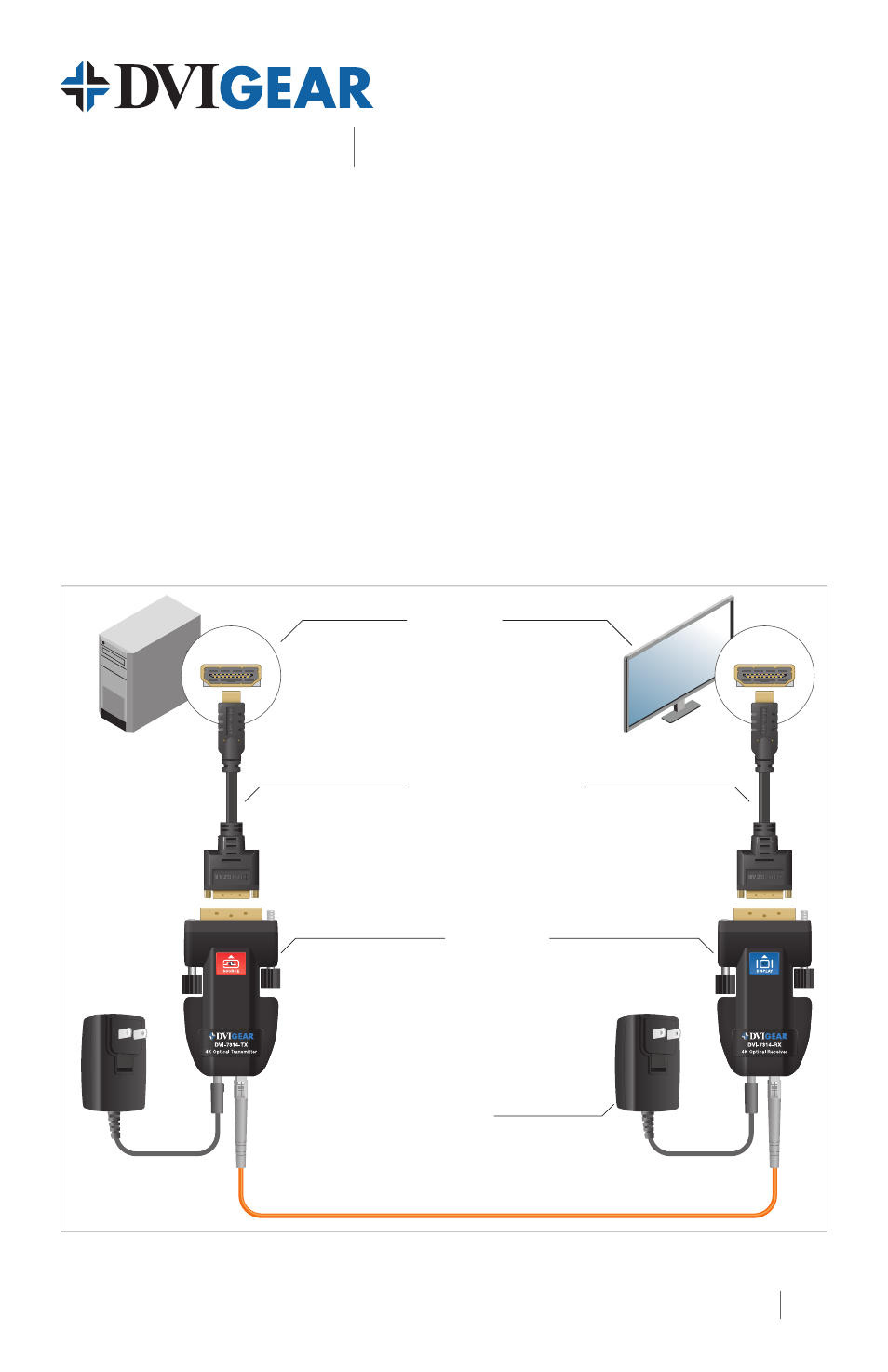

Typical Application
DVI-7313 / DVI-7314 4K Fiber Optic Extenders, 1x LC
1
Receiver
DVI-8511c
Adapter Cable
(included)
HDMI Port
Transmitter
DVI-8511c
Adapter Cable
(included)
HDMI Port
AC Power
Adapter
(included)
1x LC Optical Cable
Optional
AC Power
Adapter
