Page 11 For technical questions, please call 1-800-444-3353. SKU 40432
part Description Qty.
1 Holder 1
4 Hanger 1
5 Rubber Ring 1
6 Screw 2
7 Motor Housing 1
8 Carbon Brush 2
9 Stator 1
10 Screw 2
11 Gasket 1
12 Rubber Ring 1
13 Bearing 1
14 Cover 1
15 Screw 2
16 Rotator 1
17 Impeller 1
18 Bearing 1
19 Cover 1
20 Screw 2
21 Flexible Shaft 1
22 Chuck Housing 1
23 Bearing Set* 1
24 Chuck 1
25 Chuck Key 1
26 Power Plug 1
27 Foot Control 1
28 Plug-Female 1
29 Plug 1
* Includes 2 Bearings and Shaft
pLEASE READ THE FOLLOWING CAREFuLLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED
THE PARTS LIST AND ASSEMBLy DIAgRAM IN THIS MANUAL AS
A REFERENCE TooL oNLy. NEITHER THE MANUFACTURER oR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY
oF ANy kIND To THE BUyER THAT HE oR SHE IS qUALIFIED To
MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
qUALIFIED To REPLACE ANy PARTS oF THE PRoDUCT. IN FACT, THE
MANUFACTURER AND/oR DISTRIBUToR ExPRESSLy STATES THAT ALL
REPAIRS AND PARTS REPLACEMENTS SHoULD BE UNDERTAkEN By
CERTIFIED AND LICENSED TECHNICIANS, AND NoT By THE BUyER.
THE BUyER ASSUMES ALL RISk AND LIABILITy ARISINg oUT oF HIS
oR HER REPAIRS To THE oRIgINAL PRoDUCT oR REPLACEMENT
PARTS THERETo, oR ARISINg oUT oF HIS oR HER INSTALLATIoN oF
REPLACEMENT PARTS THERETo.
Record product’s Serial Number Here:
Note: If product has no serial number, record month and year of
purchase instead.
Note: Some parts are listed and shown for illustration purposes
only, and are not available individually as replacement parts.

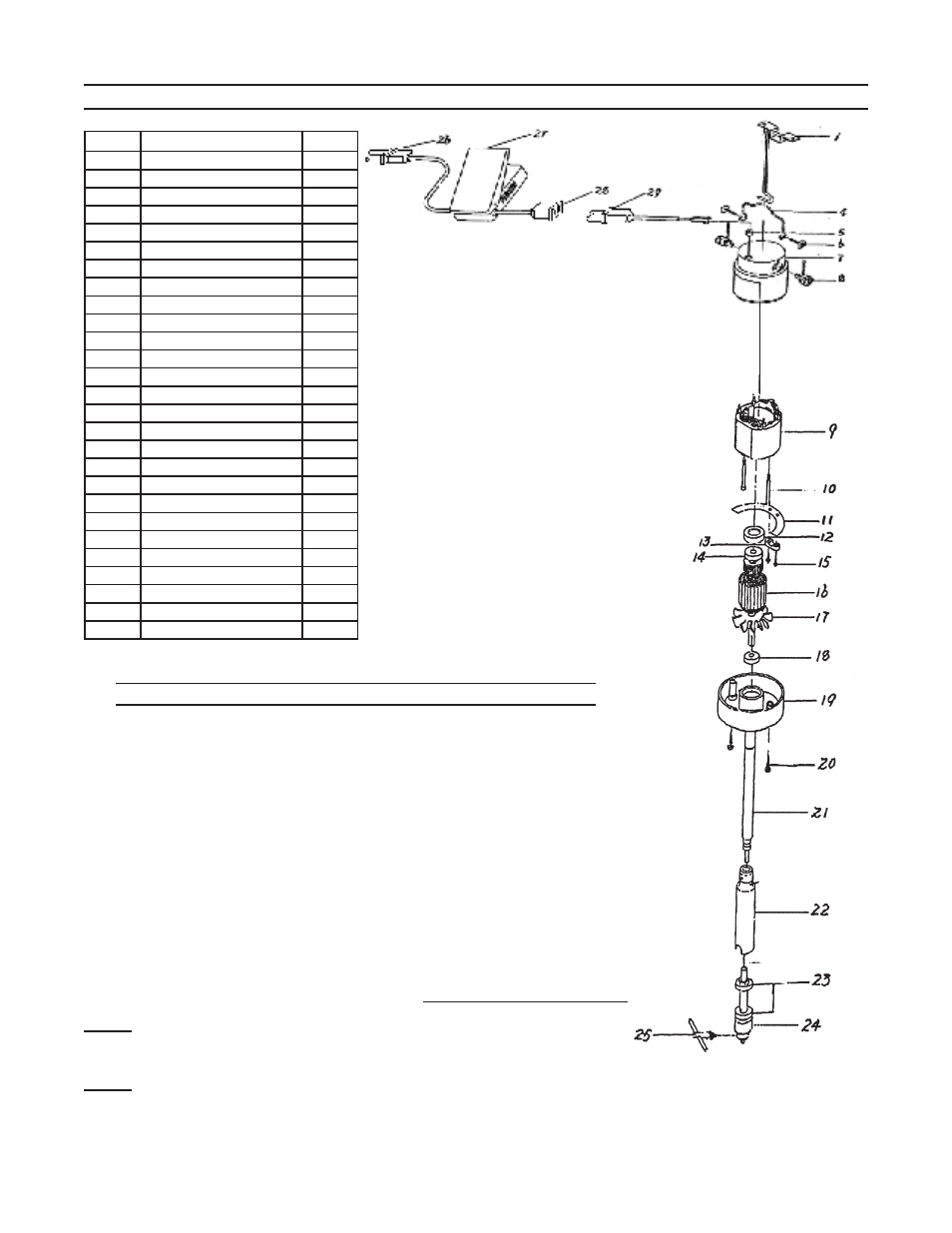

pARTS LIST AND ASSEMBLY DIAGRAM
REV 04c, 06b, 09e
