TROUBLESHOOTING

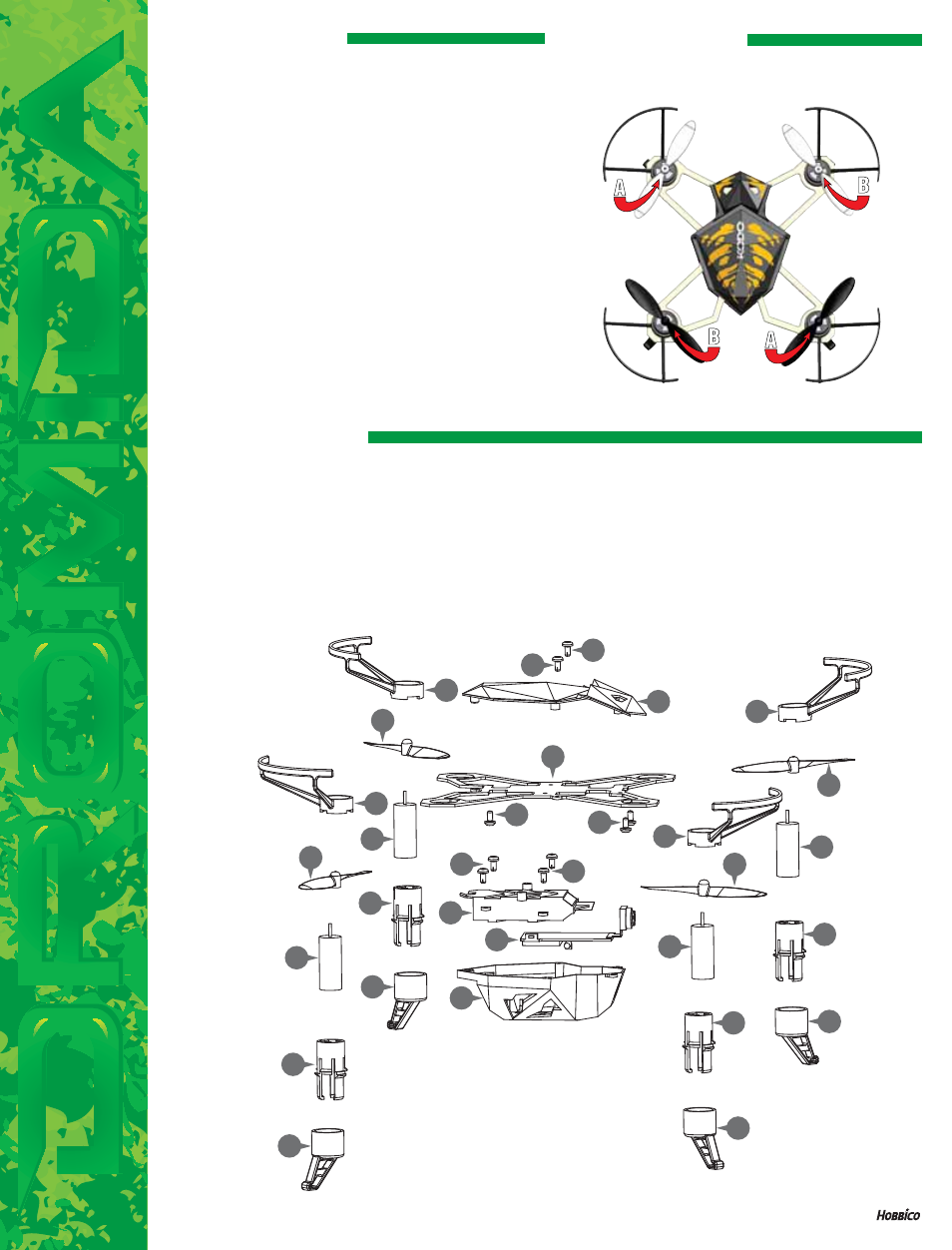

REPLACEMENT PARTS
PROBLEM: The quadcopter will not respond to the radio.
SOLUTION: (1) Turn off the radio and disconnect the battery for
the KODO. Re-link the quadcopter and radio. (2) Make
sure that the battery on the KODO is fully charged.
PROBLEM: Red radio LED light flashing after linking.
SOLUTION: Replace with new AAA batteries.
PROBLEM: KODO will not stay level.
SOLUTION: (1) Place the quadcopter on a level surface and
restart the quad by unplugging and plugging in the
battery. (2) Check the props and motors for damage.
PROBLEM: Unable to Flip but the KODO is flying.
SOLUTION: Battery voltage is low and needs to be charged.
PROBLEM: Will not take off.
SOLUTION: (1) Check the rotor blades for proper installation. (2)
Battery is not fully charged. (3) Check motors and
props for damage.
PROBLEM: Quadcopter is shaking.
SOLUTION: Check the canopy, chassis, motors and rotor blades
for damage.
BLADE REPLACEMENT
A B
A B
FRONT
White Blades,
Blue LEDs
NOTE: Rotor blades must be installed as shown.
REAR
Black Blades,
Red LEDs
4
4
10
10
10
11
5
2
9
9
7
8
6
6
7
8
6
6
1
4
4
10
10
10
7
7
3
3
3
12
3
1 DIDE1500 Upper Shell Black/Yellow
2 DIDE1501 Battery Tray
3 DIDE1502 Prop Set Black/White (4)
4 DIDE1503 Prop Guard Set (4)
5 DIDE1504 Lower Shell
6 DIDE1505 Motor Holder (4)
7 DIDE1506 Motor Cover (4)
8 DIDE1508 Motor CW L/F R/R (2)
9 DIDE1509 Motor CCW R/F L/R (2)
10 DIDE1510 Screw Set
11 DIDM1500 Flight Control Board w/Arms
12 DIDZ1500 Camera
DIDE1511 USB 1S LiPo Charger
DIDE1512 Transmitter
DIDZ1501 Micro Card Reader
DIDE1507 LIPO 1S 3.7V 390MAH
