Appendix – Dangerous Music D-Box User Manual

Page 18

Text mode
Original mode

background image

16 |

DANGEROUS MUSIC

APPENDIX

ANALOG 8 CHANNEL DB25

(TASCAM PROTOCOL)

H = HOT C = COLD G = GROUND

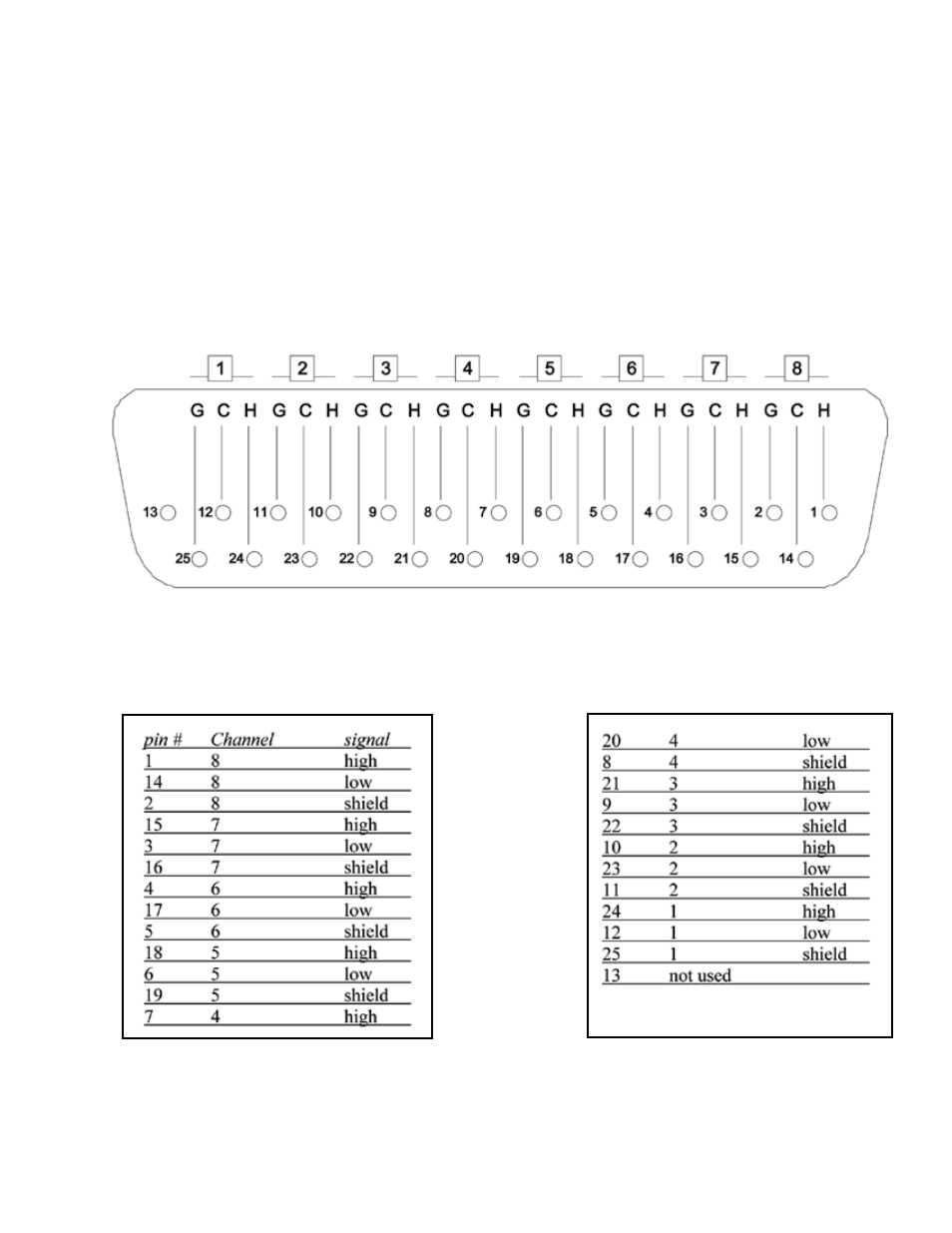

PIN OUT WIRING FOR DB25 CONNECTOR
