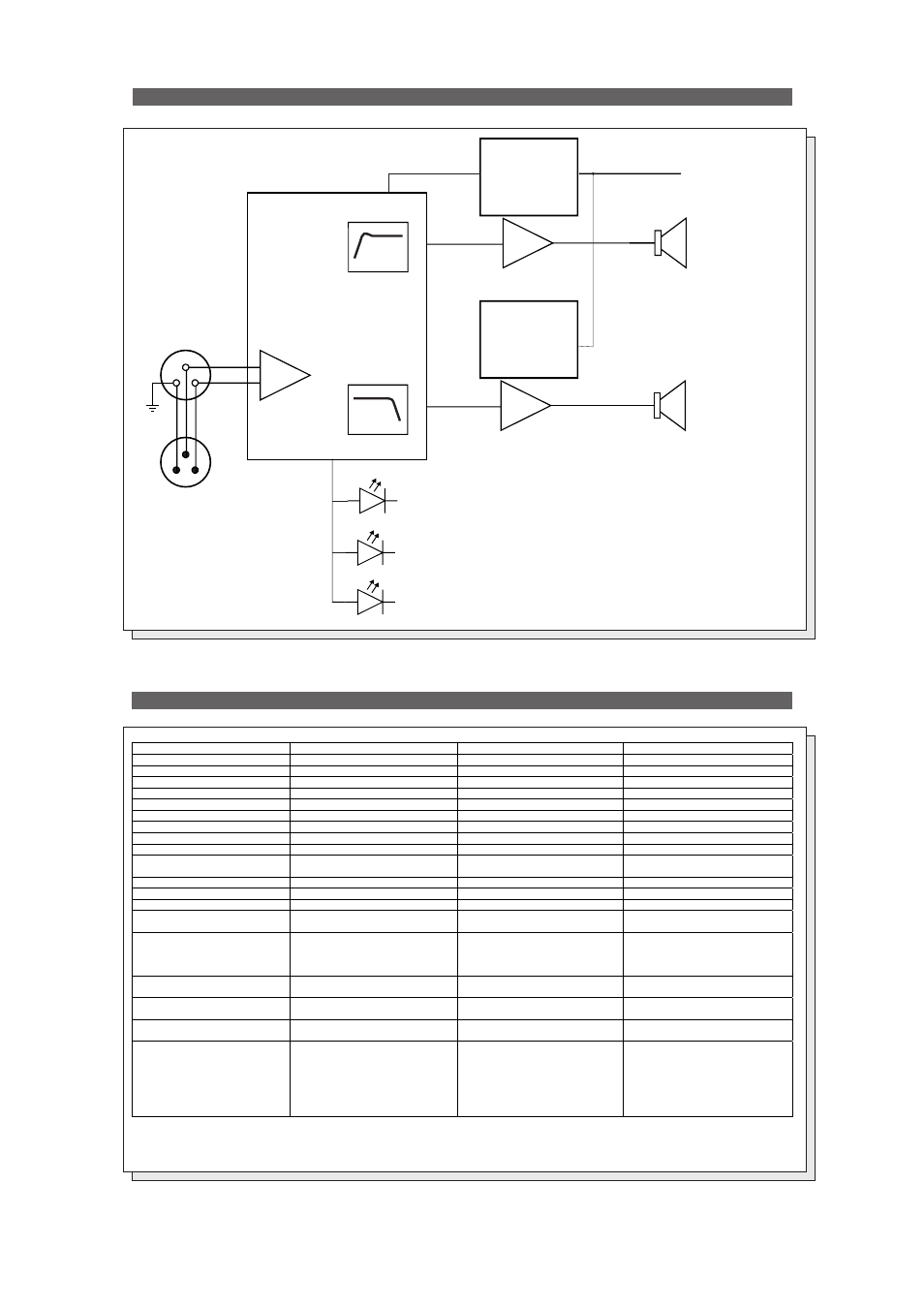

BLOCK DIAGRAM
DSP LOW
MAIN
LF
HF
HIGH
Switching
Power
Supply
Switching
Power
Supply
Input
Loop thru
Signal
ON
Limit
SPECIFICATIONS
Model aero 12A LX-218A LX-218RA
Nominal LF Power Amplifier 500 W (Class D) 2400 W (Class D) 2400 W (Class D)
Nominal HF Power Amplifier 100 W (Class D) --- ---
Input Type Balanced Differential Line Balanced Differential Line Balanced Differential Line
Input Impedance Line: 20 kohms Line: 20 kohms Line: 20 kohms
Sensitivity Line: 1.95 V (+8 dBu) Line: 1.95 V (+8 dBu) Line: 1.95 V (+8 dBu)
Frequency Range (-10 dB) 63 Hz-20 kHz 28 Hz-100 kHz 28 Hz-100 kHz
Horizontal Coverage (-6dB) 90º Nominal --- ---
Vertical Coverage Splay Dependent --- ---
Rated Maximum Peak SPL at 1 m (1) 134 dB 142 dB 142 dB
Transducers/Replacement Parts LF: 1 x 12LNC4/GM 12P4
HF: 1 x M-75N/GM M-75N LF: 2 x 18LX/GM 18LX LF: 2 x 18LX/GM 18LX
Enclosure Geometry Trapezoidal 7º Rectangular Rectangular
Enclosure Material Birch Plywood Birch Plywood Birch Plywood
Color/Finish Black Paint Black Paint Black Paint
Rigging System Splay Angles Integrated in box design Ground Stackable Integrated in box design
Connectors INPUT: Female XLR
LOOP THRU: Male XLR
AC INPUT: PowerCon NAC 3 FCA
AC OUTPUT: Powercon NAC 3 DFCB
INPUT: Female XLR
LOOP THRU: Male XLR
AC INPUT: PowerCon NAC 3 FCA
AC OUTPUT: Powercon NAC 3 DFCB
INPUT: Female XLR
LOOP THRU: Male XLR
AC INPUT: PowerCon NAC 3 FCA
AC OUTPUT: Powercon NAC 3 DFCB
AC Power Requirements 115 V, 50 Hz/60 Hz
230 V, 50 Hz/60 Hz
Universal Mains, 85 – 230 V
(dual voltage)
Universal Mains, 85 – 230 V
(dual voltage)
Dimensions (H x W x D) 31.6 x 140 x 60 cm
12.4 x 55 x 23.6 in
55 x 128 x 65 cm
(22 x 51 x 26 in)
55 x 135 x 69 cm
(22 x 541 x 28 in)
Weight 27 kg (59.4 lbs) 84.5 kg (270.5 lbs) 101.5kg (223.3 lbs)
Accessories AX-aero12 Rigging Grid
AX-Combo12 Rigging Adapter
KITGS-AX-aero12
PL-12S Steel Stacking Dolly
AX-aero50 Bumper
Pick Up Bar for AX-aero50 Bumper
AX-Combo12 Rigging Adapter
KITW-100 Caster kit
KITR-LX218 Rigging hardware kit
PL-LX218 Dolly Panel
PL-218S Flat Bed Dolly
AX-aero50 Bumper
Pick Up Bar for AX-aero50 Bumper
AX-Combo12 Rigging Adapter
KITW-100 Caster kit
PL-LX218 Dolly Panel (included)
PL-218S Flat Bed Dolly
(1).- Maximum calculated Peak SPL based on sensitivity and RMS power handling.
Manual del Usuario / aero 12A / User’s Manual
