12
the base of the AX-TRUSS will be placed on the
corner, making sure that the head of the upper
screw fits into the slot (3) on the base. Then the
special rear side screw, provided with the
hardware (4), will be fixed to the box.

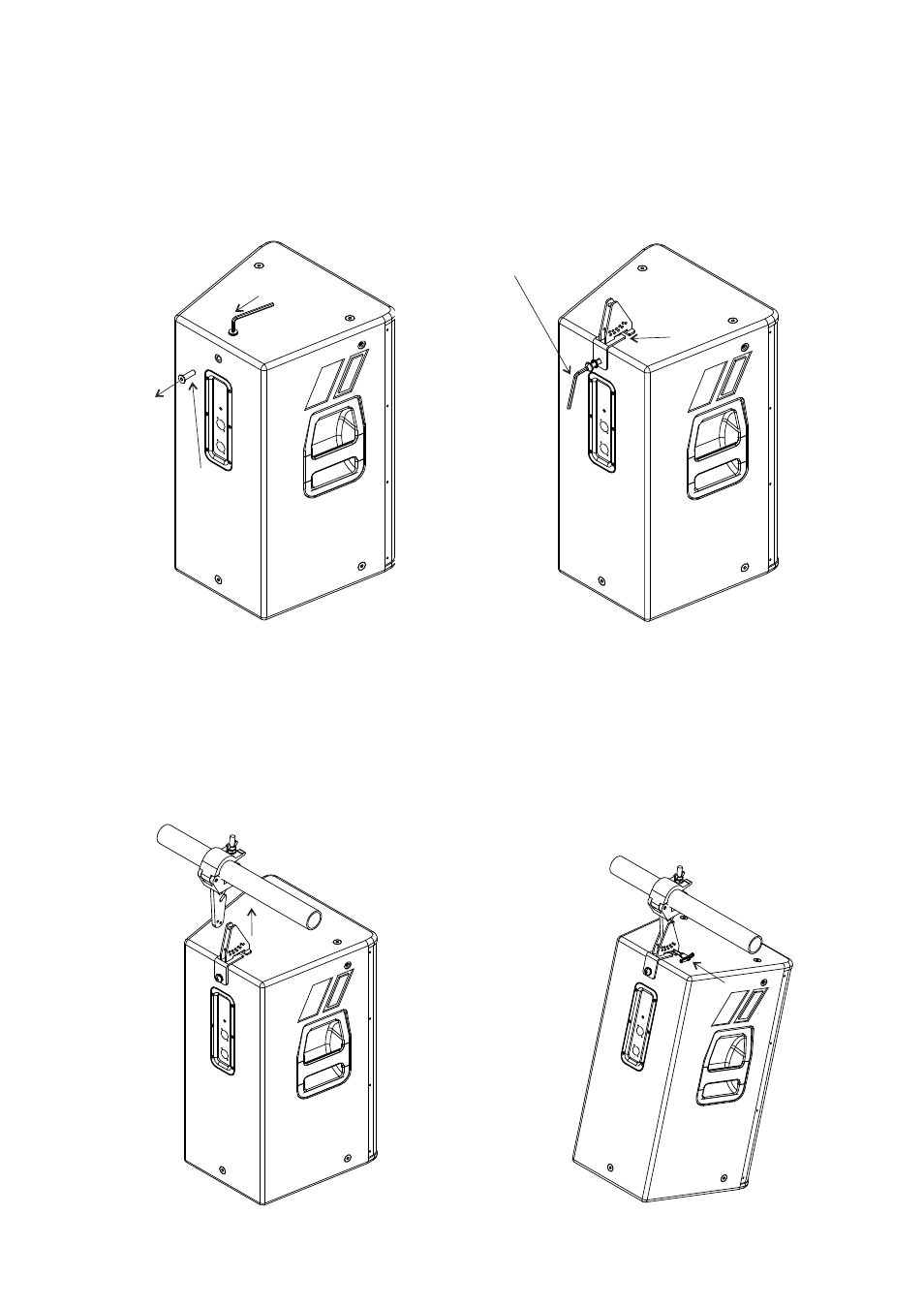

Once the rear side screw has been removed, In order to attach the AX-TRUSS to the box,
firstly the screw on the upper rear side must be
backed out a few turns (1). Then the rear side
screw must be completely removed (2).
Special screw M10x60
Slot
4
3
Back out few turns
Remove screw
2
1
The next step will be to secure the fixing hardware part to the truss. In order to do so, the nut and the
wing nut must be tightened. Make sure that the fixing hardware has been secured tightly to the truss, and
that it is not able to swing. This way both parts of the rigging hardware will be fixed: one to the truss and the
other one to the box.
Note: Maximum load capacity for AX-TRUSS is 50 kg. Never exceed this limit.
Once the fixing hardware has been attached to the truss, then the box can be attached (5).
5
6
The vertical splay angle depends
on the hole where the quick release
pin has been inserted (6).
