Clarke BOOST 28 User Manual
Page 100
Ref #
Part No. Description
Qty
1
50981A
2
60388A
Spacer
1
3
30095A
Tie, Cover Retainer
1
4
80123A
Nut, Brake Drive
1
5
80125A
Key, 3/32 Sq. x 1/4 Lg.
1
6
30094A
Cover, Vinyl
1
7
80124A
Screw Set (Brake Nut
2
to Motor Shaft)
8
10160A
Brake, Asm. 24V
1
NOTE: Only use spacer (ref. #2) on transaxles that have a circular step and
mounting nuts protruding from end of motor. The motor that uses the
spacer can be identified by the motor brush caps protruding past the outside
diameter of the motor.
1
Clarke
®

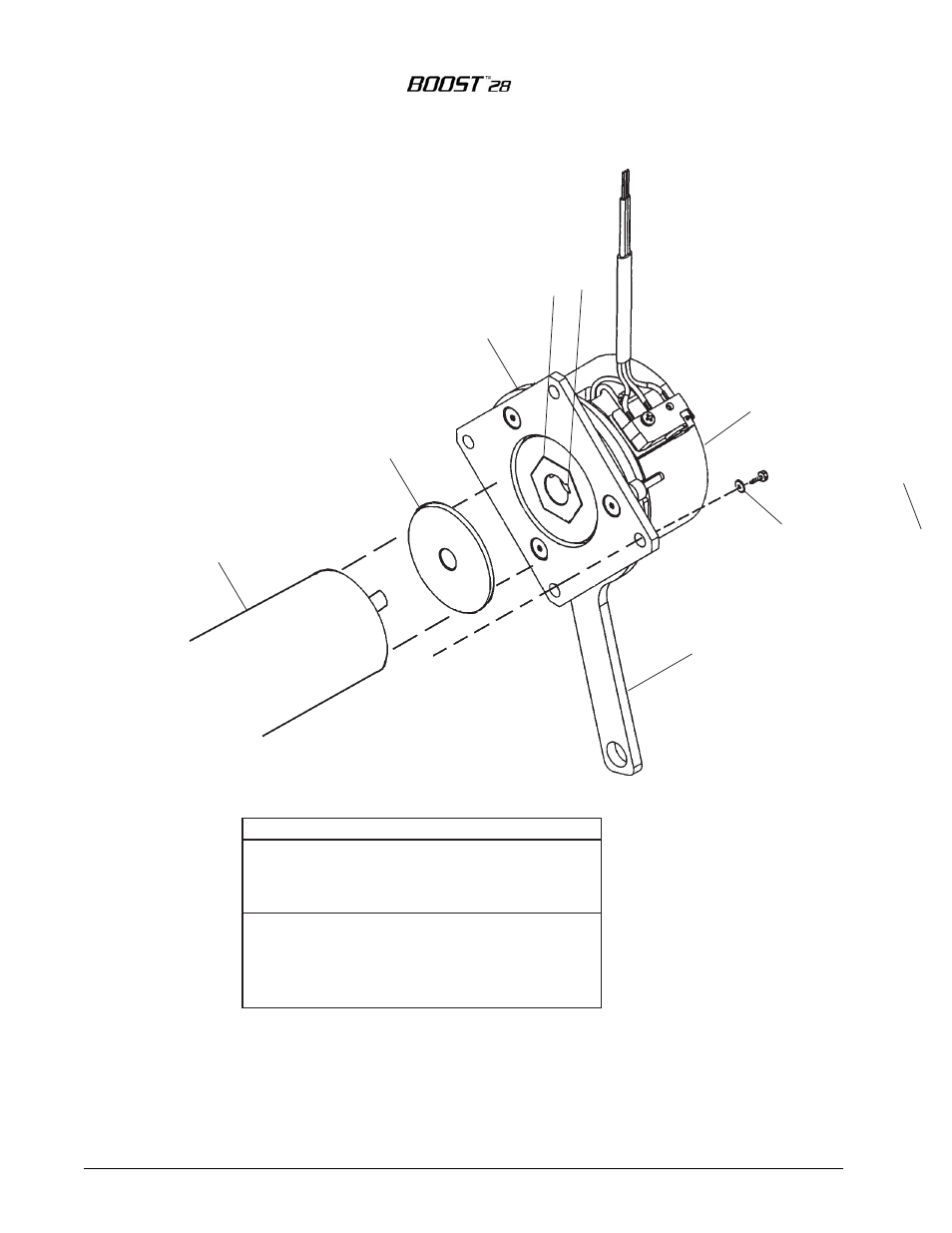

Optional Brake Drawing and Parts List 9/05
Drawing # 10072A
2
3
4
5
6
7
8
Page -100-
Clarke
®
Operator's Manual - BOOST 28
