III. Major Specifications
5

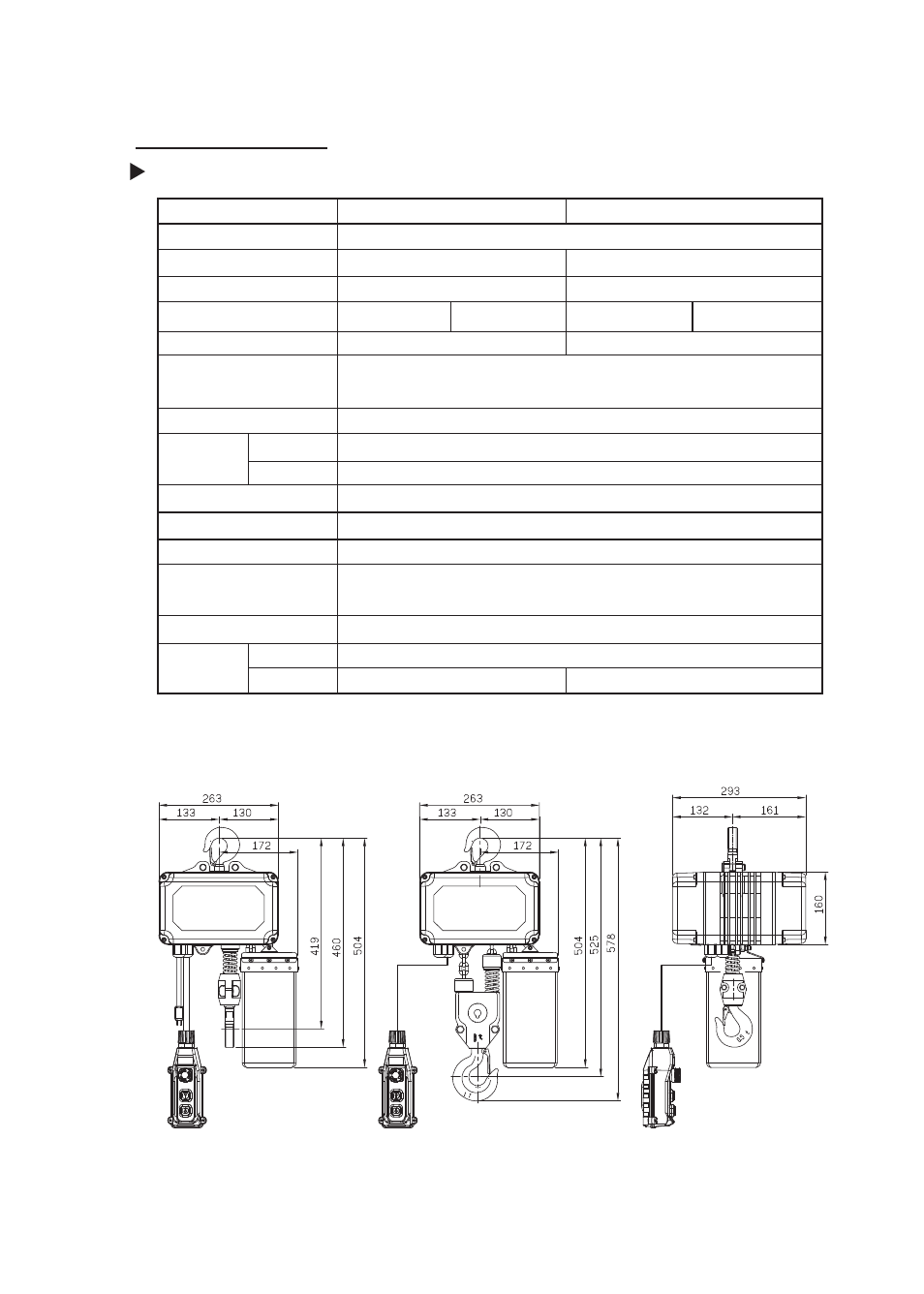

Machine Type and Major Dimensions
CK-500 CK-1000
Model CK-500 CK-1000
Power Supply Single-phase, 100 – 120V, 200 - 240V AC, 50/60 Hz
Type of Fall Single Double
Rated Load 500 kg 1,000 kg
Lifting Height 3 m 6 m
Line Speed 6.5 m/min 3.2 m/min
Percentage Duty
Cycle (%ED)
25% ED with a maximum of 60 starts per hour
Drive Group FEM: 9,511 1Bm, ISO: 4301-1 M3
Motor 100-120V
750 w, 12A permanent magnetic
200-240V 750 w, 6A permanent magnetic
Control System
Power Lead
Direct control with an emergency stop function pendant switch
1.5 mm 2 x 3C x 3 m w/industrial plug
Control cord 1.25 mm 2 x 6C x 3 m / 1.25 mm 2 x 6C x 6 m
Brake
Double brakes of mechanical ratchet pawls and a motor
dynamic brake provide failsafe brake
Gear Ratio 70.2 :1
Load
Chain
Grade Grade 80 – Links 6.3 mm dia x 19 mm long
Length 3.5 m 6.5 m
3 m 6 m
