Chrysler 2009 Country - Owner Manual - Manual (Page 421)

Spare Tire Removal
The spare tire is stowed inside a protective cover located
under the center of the vehicle by means of a cable winch
mechanism. The “spare tire drive” nut is located on the
floor, under a plastic cap at the front of the floor console.
NOTE: The base console, if equipped, must be removed
to raise and lower the spare tire. Refer to “Console
Features” in Section 3 for the console removal procedure.
The tool pouch contains three pieces and can be as-
sembled into a spare tire hook; to remove the compact
spare tire/cover assembly from under the vehicle, or a
Winch “T” Handle; to raise/lower the compact spare
tire/cover assembly.

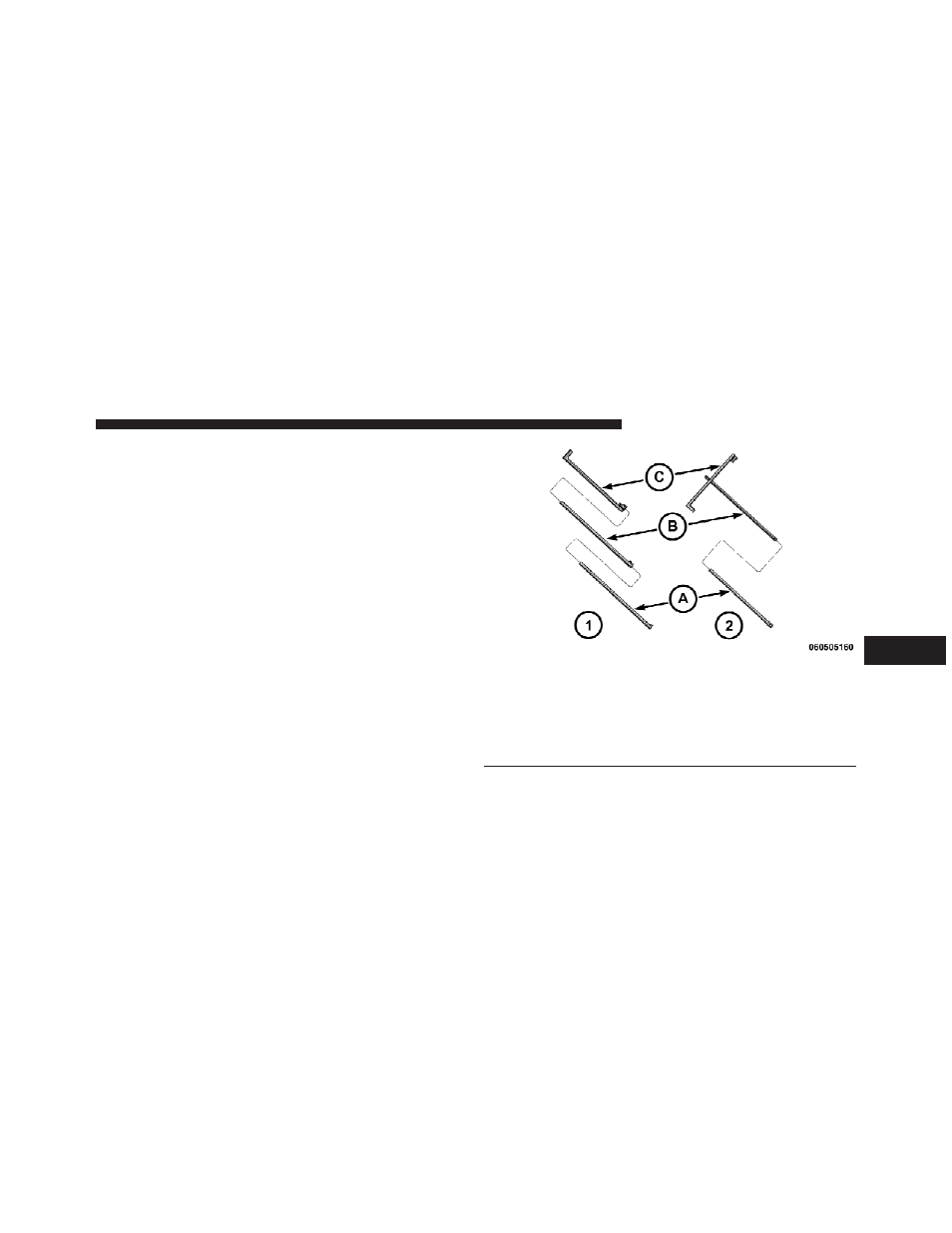

Tools
1A – Spare Tire Hook (Piece 1) 2A – Winch “T” Handle (Piece
1)
1B – Spare Tire Hook (Piece 2) 2B – Winch “T” Handle (Piece
2)
1C – Spare Tire Hook (Piece 3) 2C – Winch “T” Handle (Piece
3)
6
WHAT TO DO IN EMERGENCIES 419
