3. Rotate the socket to the left one-quarter turn, and
replace the bulb.
Front Fog Lights — If Equipped
1. Remove the fasteners attaching the lower splash
shield to gain access to the fog light.
2. Twist and remove the bulb from the fog light housing.
3. Disconnect the electrical connector and replace bulb.

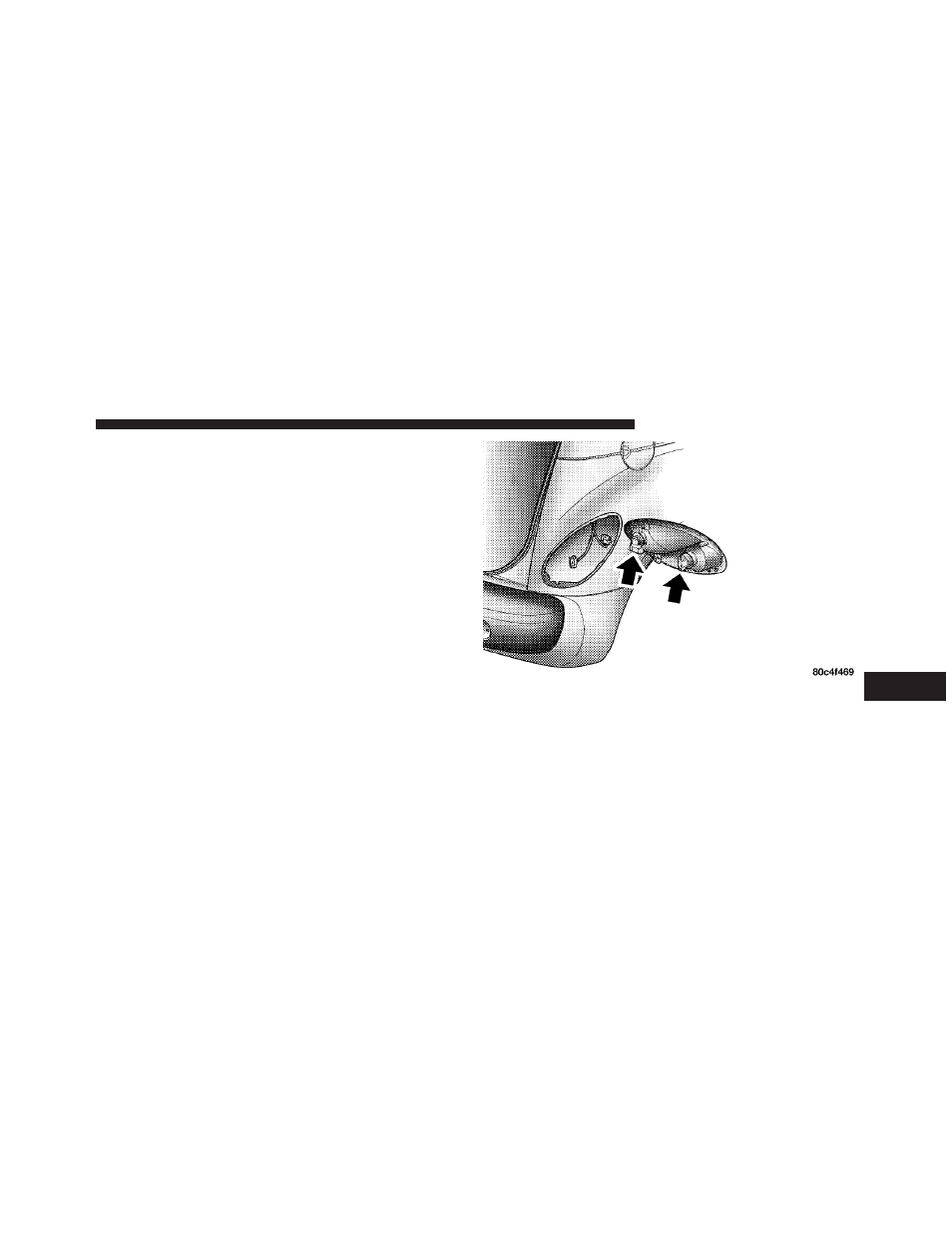

Tail/Stop Lights and Rear Turn Signal Lights
1. Remove the screw attaching the tail light housing and
remove the housing from the vehicle.
2. Twist the bulb socket one—quarter turn to remove it
from the housing.
3. Pull the bulb out of the socket and replace.
7
MAINTAINING YOUR VEHICLE 347
