Peripherals

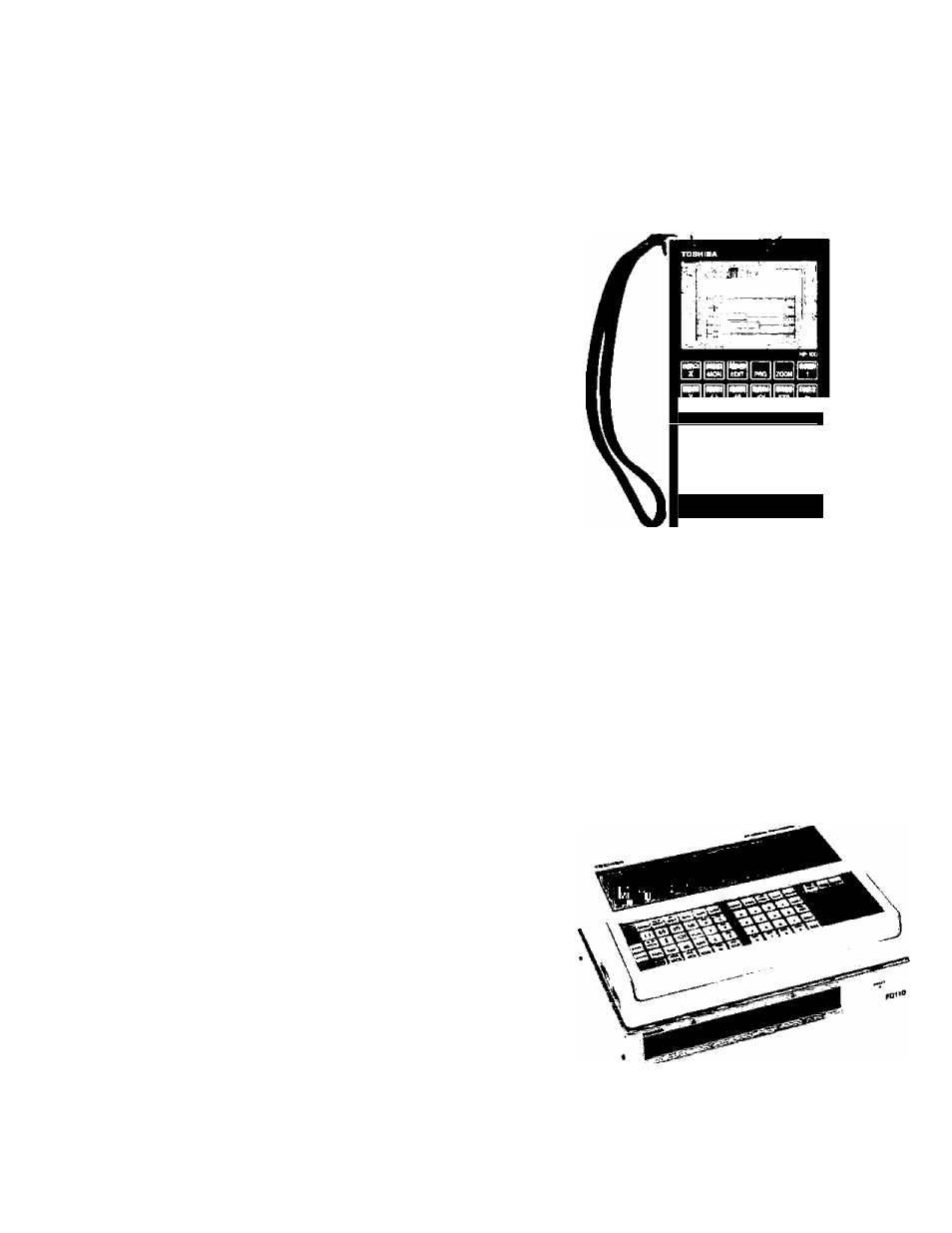

Handy Programmer HP-100
The HP-too is a hand-held graphic programmer used
with Toshiba’s medium size controllers (EX 100, 200B,
250&500). Its portability makes the HP-100 ideal for
maintenance use at remote installations. The HP-100
has all the features of a full size programming terminal.
Enter programs in ladder logic
On-line program edit and monitor ,
(logic intensifies to indicate power How)
Block, monitor for I/O and internal registers
On-line data set
& I/O force
Double-length data monitoring/setting
Two display modes
• Full (normal): 5 lines by 1 1 columns
• Zoom: 2 lines by 2 columns with full device
description
Graphic Programmer GP110
&GP110AP1
The GPl 10 is an enhanced!version of 7'{)shiba's GP-
100 graphic programmer.
It has the same large-dot matrix LCD screen that
displays 7 lines by 1 1 columns.
Logic lines intensify to indicate power flow, device
type, address, current values of timers, counters, and
data registers are shown during program execution.
The GPlOO’s enhanced features include:
• Backlit screen for sharper
contrast in dark areas—
• On-line programming and block read/write
instructions
• Double-length data monitoring/setting
• Stand-alone programming (AP1)
• Built-in Hoppy disk drive interface (AP 1)
• Formats and saves logic programs
on 3.5 inch tloppy disks
• Loads and compares logic
programs saved on disk
f/iCB /ift/
I - II 1 Ilm^McOLlI - 1
asHSHH
Floppy Unit
The floppy disk drive is used with the GP1 1 OAPl for
storing and comparing programs, •
• 3.5 inch floppy disk, I drive (standard)
• Record:
GP FD ■ ■ ■
• Load: FD - GP
• |Compare: FD — GP
• Disk format
