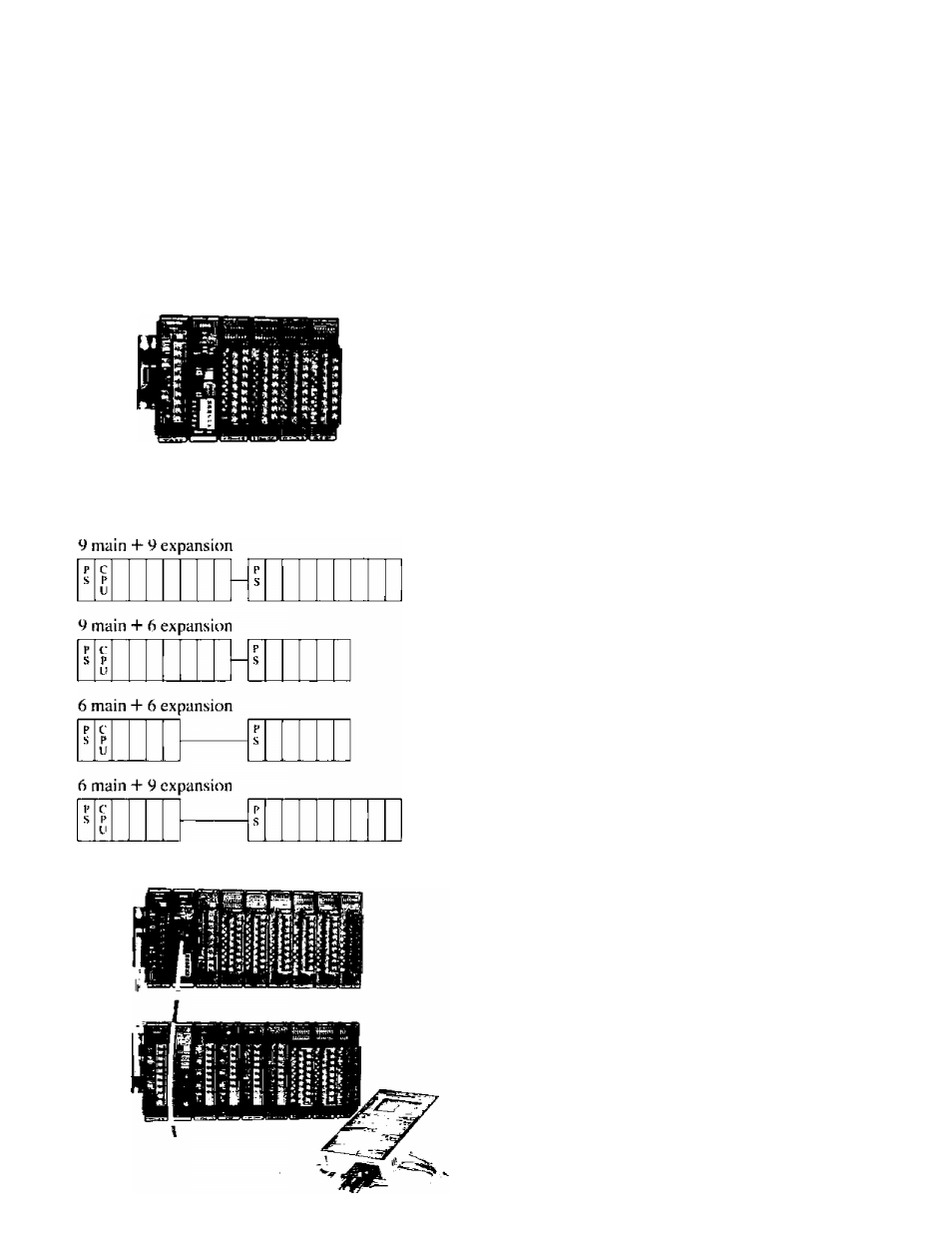

Configuration
Racks
Non-expandable
6 modules
y modules
CPU Module
Expandable
6 modules
9 modules
I/O Expansion Capability
Standard
• 4k program memory
• Write password protection
• On-line programming
• Built-in EEPROM & capacitor
(battery is optional)
Enhanced
• Same as standard
• Built-in RS485 computer link
• Built-in real time clock/calendar
Power Supply Modules
• Types
• l(H)/12[)Vac
• 200/240 Vac
• 24Vdc
-9
Features
• Provides power to CPU
• External 24 Vdc-0,5A power
• Run status contact
High Performance Software
Easy to use ladder diagram programming
Function blocks can be inserted into ladder
diagrams
• Math (double-length registers)
• Data move (register-table, etc.)
_
• Logic (AND, OR, etc.)
• Comparison (<.=, >)
• Trig. (Sin. Cos, etc.)
• Limit
• Special (FF, SR, .sequencer, Function Generator,
min., max., avg., etc.)
• Immediate I/O update
• EE PROM access (V2.1 or after)
Fligh Scan Speed
• 0.9ps/contact
1 10p.s/ l 6 bit addition
Status and Control
• Run
• CPU
• I/O
• Com Link
• Key Switch Access
• Station Selector _
