9
Installations and Operation:

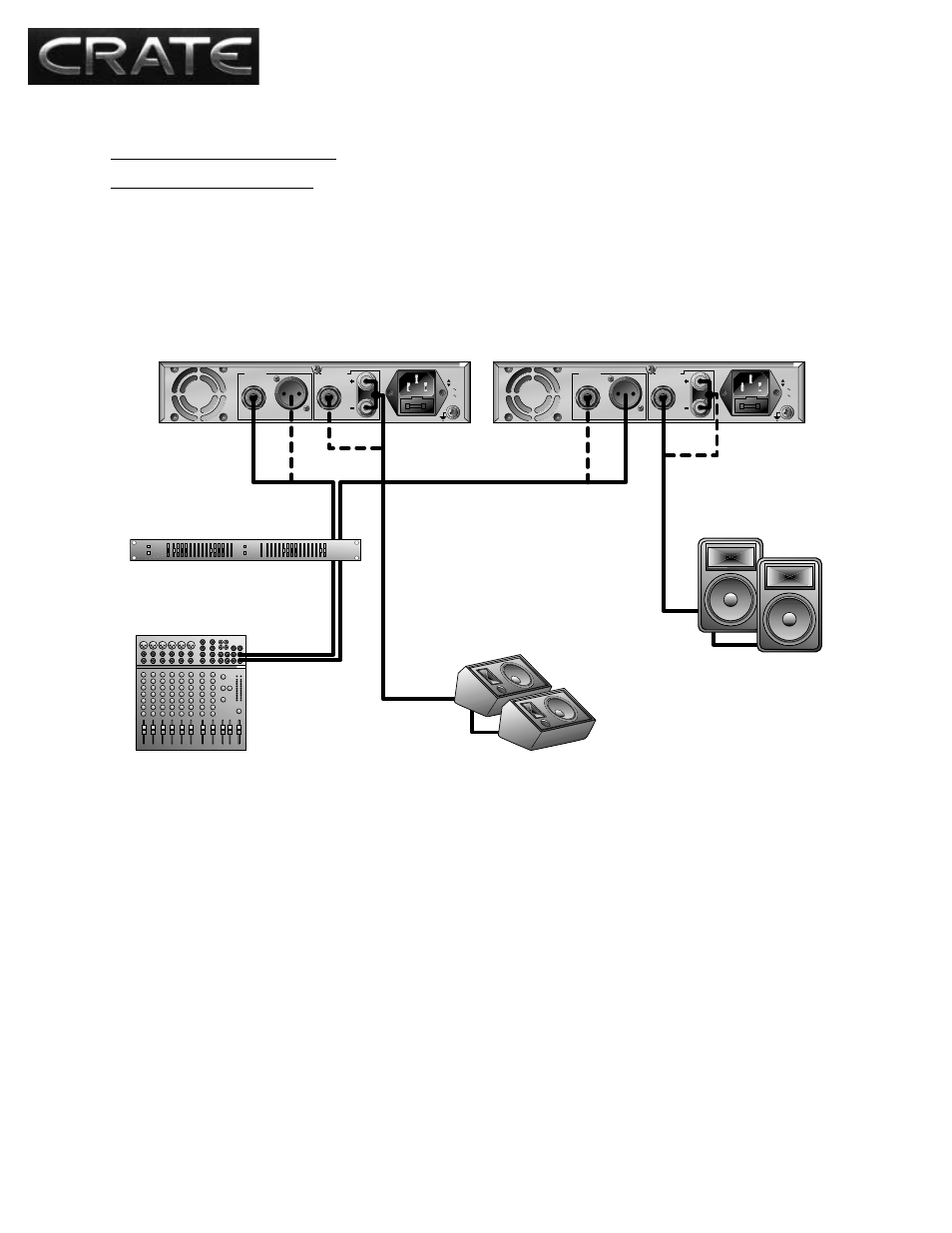

Stereo Operation (Two Amplifiers):
Connect one SPA100 between the output of your house speaker signal source and your house speaker(s). Connect another SPA100
between the output of your monitor signal source and your monitor speaker(s). The minimum impedance for the speaker(s) is 4 ohms
for each amplifier.
LINE
INPUTS SPEAKER
OUTPUTS
4 OHMS MIN
USE ONLY
250V FUSE
115V 60Hz
FUSE: T3AA, 250V
110-120
220-240
230V 50Hz
FUSE: T2A, 250V
LINE
INPUTS SPEAKER
OUTPUTS
4 OHMS MIN
USE ONLY
250V FUSE
115V 60Hz
FUSE: T3AA, 250V
110-120
220-240
230V 50Hz
FUSE: T2A, 250V
MONITOR OUT
MONO/SUM OUT
CH.1
OUT
CH.2
OUT
CH.1
IN
CH.2
IN
MIXING CONSOLE
(CSX12, CMX62, etc.)
GRAPHIC EQ
(LS2-215, LS2-231)
MONITOR AMP SPEAKER AMP
HOUSE
SPEAKERS
STAGE
MONITORS
8 OHM SPEAKERS
(PE12, PE15, etc.)
8 OHM MONITOR SPEAKERS
(UFM12. UFM15, etc.)
SPA100
1 / 2 - R a c k P o w e r A m p l i f i e r
