Installations and Operation:

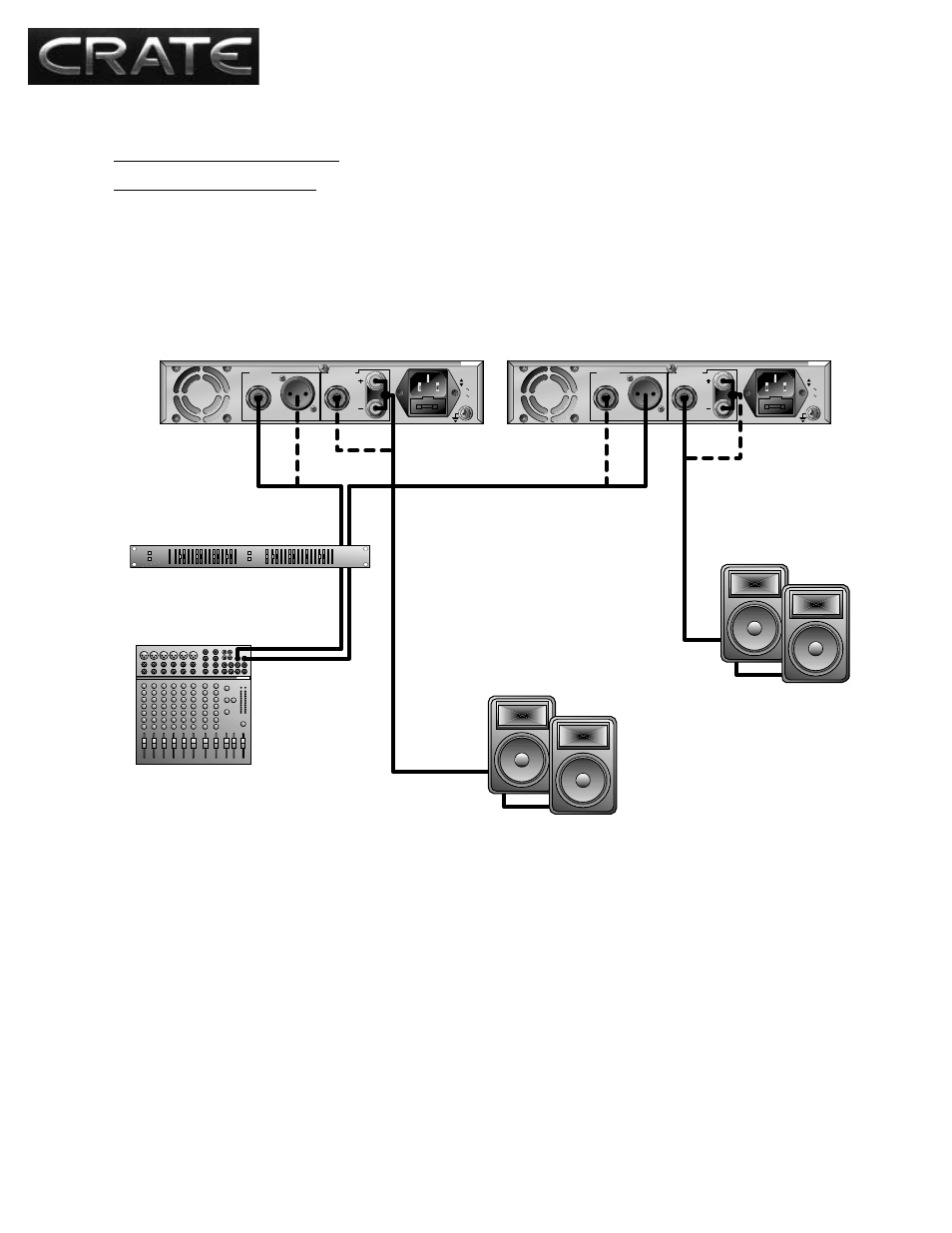

Stereo Operation (Two Amplifiers):
Connect one SPA100 between the left channel output of your stereo signal source and your left channel speaker(s). Connect anoth-
er SPA100 between the right channel output of your stereo signal source and your right channel speaker(s). The minimum impedance
for the speaker(s) is 4 ohms for each amplifier.
