Installations and Operation:

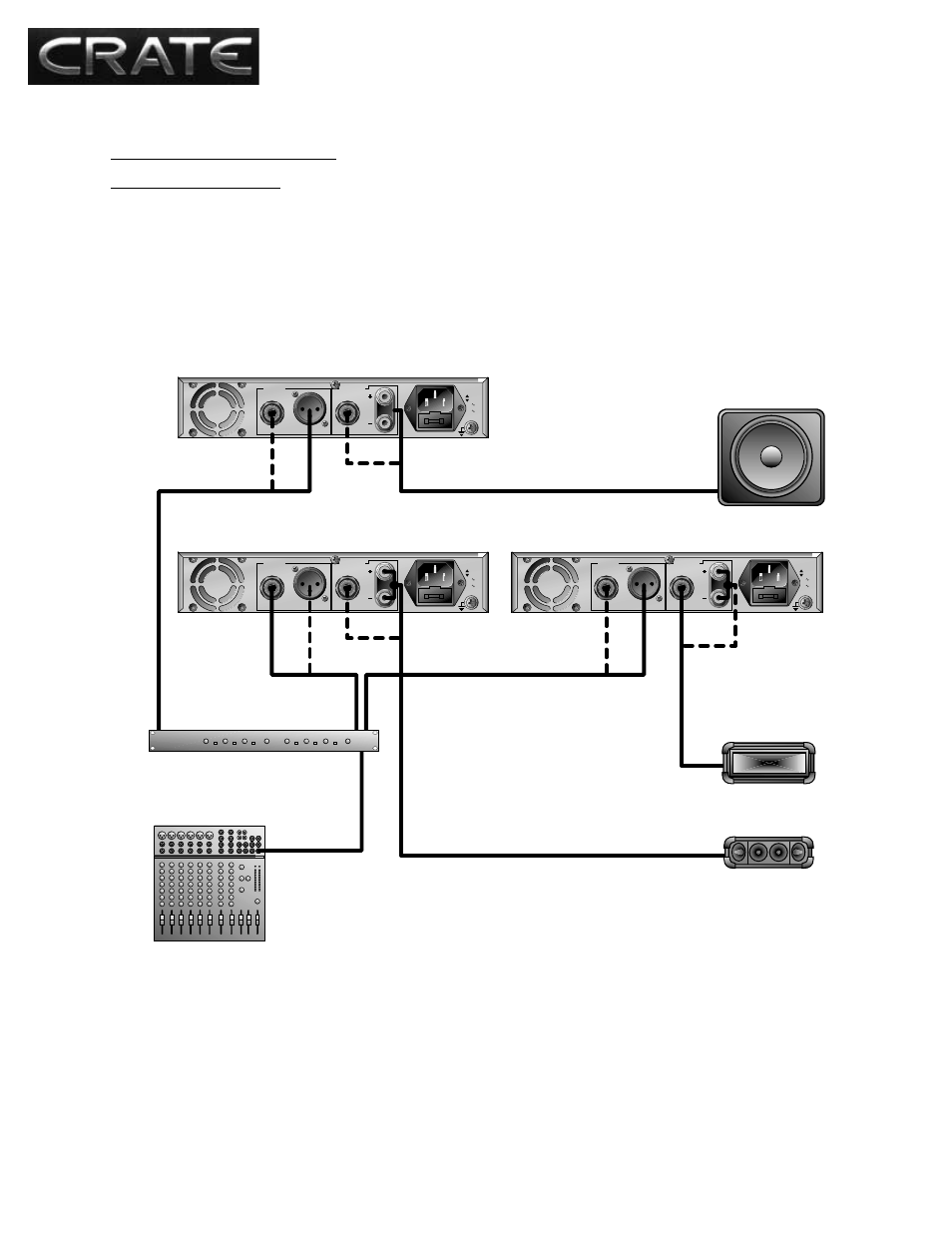

Triamping (Three Amplifiers):
Connect one SPA100 between the output of your low frequency signal source and your low frequency speaker(s). Connect anoth-
er SPA100 between the output of your mid frequency signal source and your mid frequency speaker(s). Connect a third SPA100
between the output of your high frequency signal source and your high frequency speaker(s). The minimum impedance for the speak-
er(s) is 4 ohms for each amplifier.
