STEP 5 - Connecting the System Control Cable

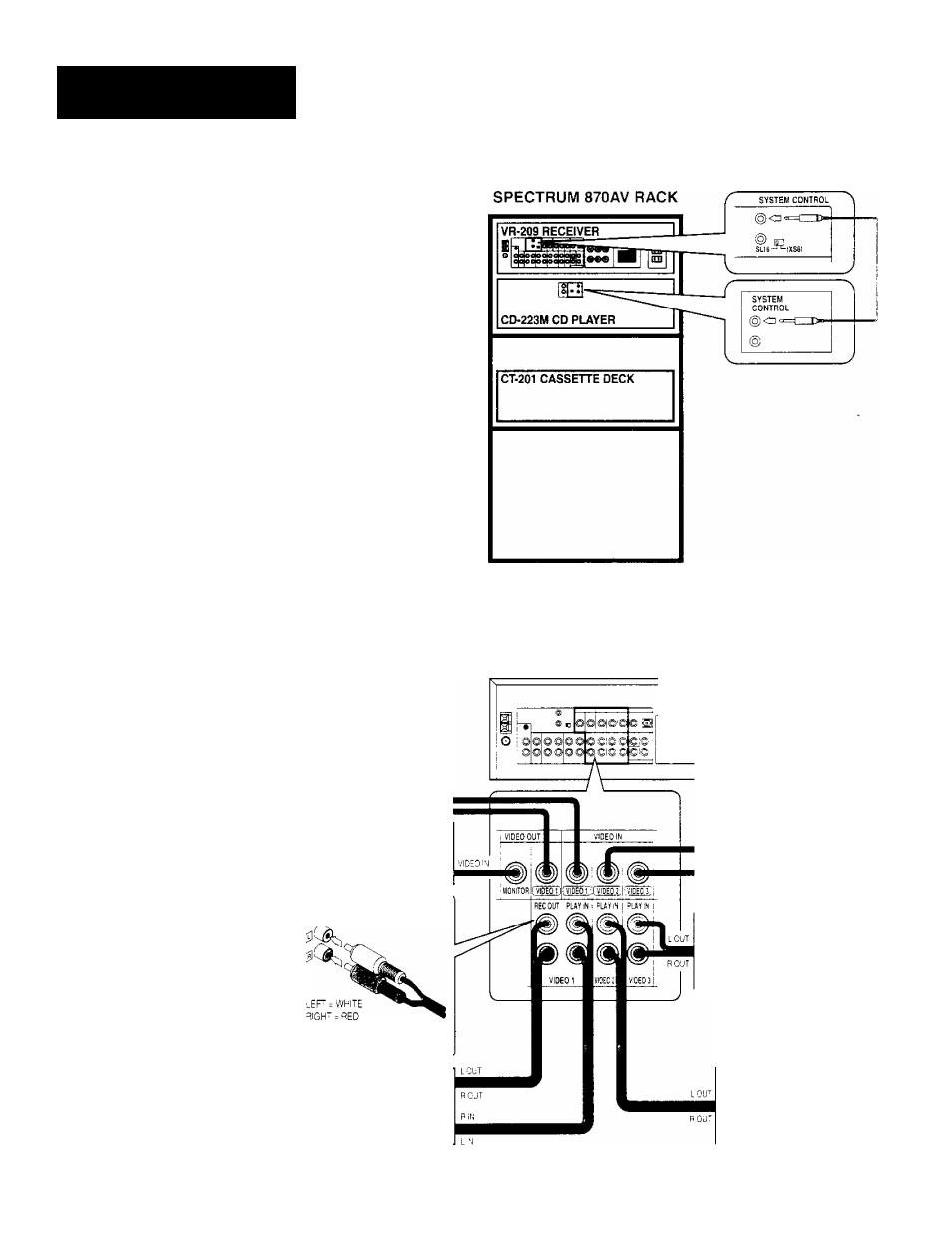

Connect the System Control cable between the
receiver and CD player as shown in the diagram on
the right. Be sure to push the plugs all the way in.
NOTE: Make sure that the SL16/XS8 switch is in
the SL16 position.
STEP 6 - Connecting Video Components
If
you use an optional VCR, laser disc player, or
DVD player’s 2-channel analog connections with
your Spectrum 870 System, connect them as shown
in the diagram on the right.
VR-209 RECEIVER
©i©©
©©©
TV
CONNECTING A STEREO
_ RCA CABLE
VIDEO = YELLOW
VCR
(record and play)
VIDEC OLT
1
DVD* or LD PLAYER
* 2-Ch. Analog Audio Only
DVD*/LD PLAYER or
VCR 2 (play only)
* 2-Ch. Analog Audio Only
