STEM QUICK-CONNECT GUIDE

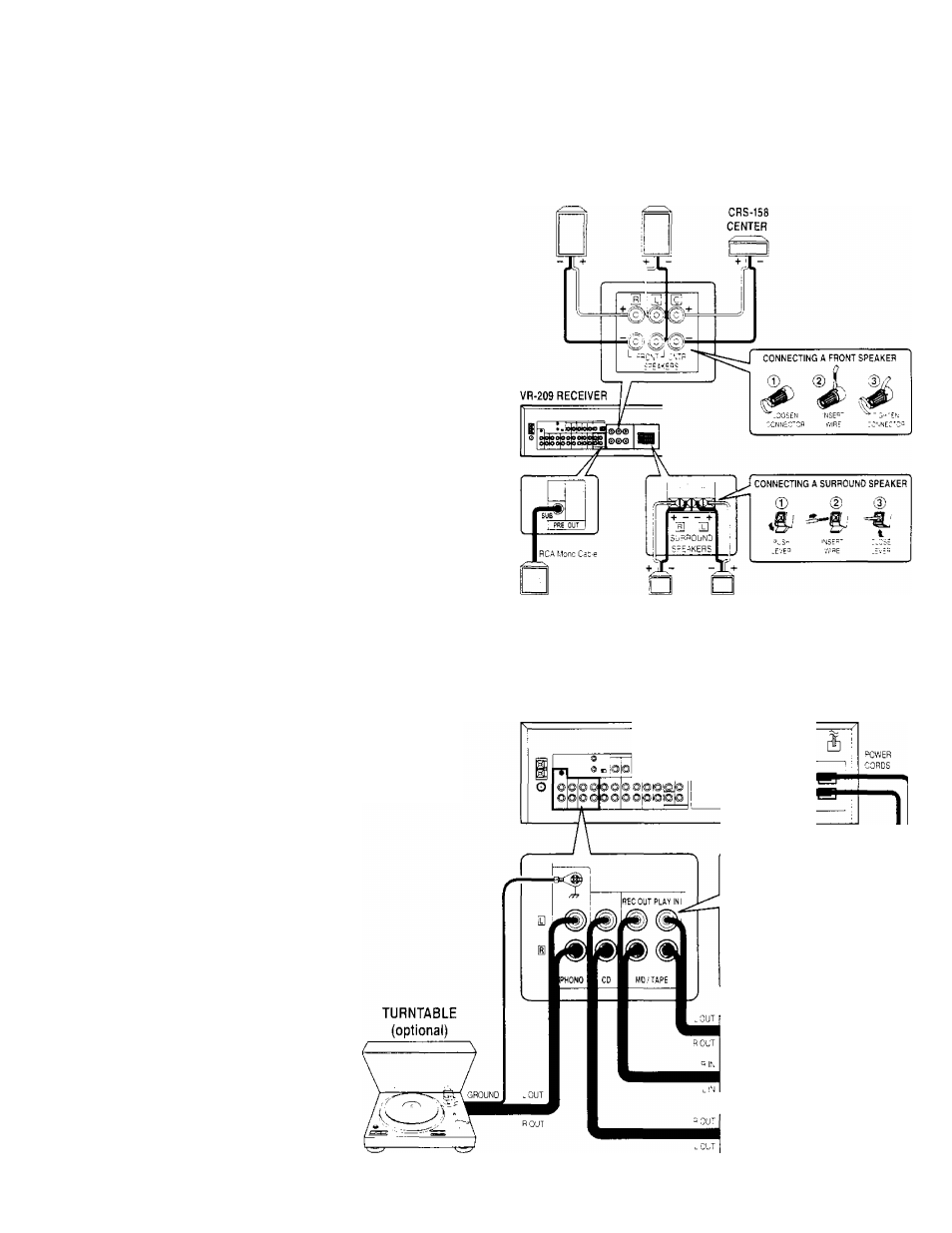

STEP 3 - Connecting The Speakers
Connect the speakers as shown in the diagram on
the right, using the wires supplied with the speakers.
To make it easier, we've removed the insulation from
the ends of the wires.
•
Be sure to connect the {+) terminals on the
receiver to the (+) terminals on the speakers,
and the (-) terminals on the receiver to the (~)
terminals on the speakers. Connecting (+) to (-)
can cause poor sound quality.
•
Never allow the (+) and (-) speaker wires to
touch each other. Touching wires can cause a
short circuit, which couid damage the receiver.
JL-997
RIGHT
JL-997
LEFT
POWERED
SUBWOOFER
(optional)
CRS-158
RIGHT
SURROUND
CRS-158
LEFT
SURROUND
STEP 4 - Connecting The Audio Components
Connect the components that came with the system
as shown in the diagram on the right. Use the cables
supplied with each component. You can connect any
turntable that has a magnetic phono cartridge.
VR-209 RECEIVER
©bi©l©
©©©
©©©
CONNECTING A STEREO
^ RCA CABLE
'HITE
ÌED
LEF = WHITE
HIGHT:.RED
CT-201 TAPE DECK
CD-2331VI CD PLAYER
»art 3 B60-SPEC~RUM870AV
