5. 1W/25W SELECTOR ... controls transmitter output power. The IW(watt)
position should always be used for in-port or short range communications.
6. CH16 SELECTOR , . . provides instant CH16 by overriding Rotary Channel
selector. LED indicator will light indicating unit is on Channel 16.
7. LED NUMERICAL CHANNEL INDICATOR . . . indicates channel in use.
8. TRANSMIT/RECEIVE LED INDICATOR ... indicates whether transmit or
receive mode is in use. (Red for transmit. Green for receive.)
9. LOW POWER LED INDICATOR ... shows when unit is switched to Low
power (1 watt).
10. CHANNEL 16 LED INDICATOR . . . lights to show CH1G switch has been
activated.
11. DIM CONTROL . . . used to adjust the brightness of the LED's & LED display.

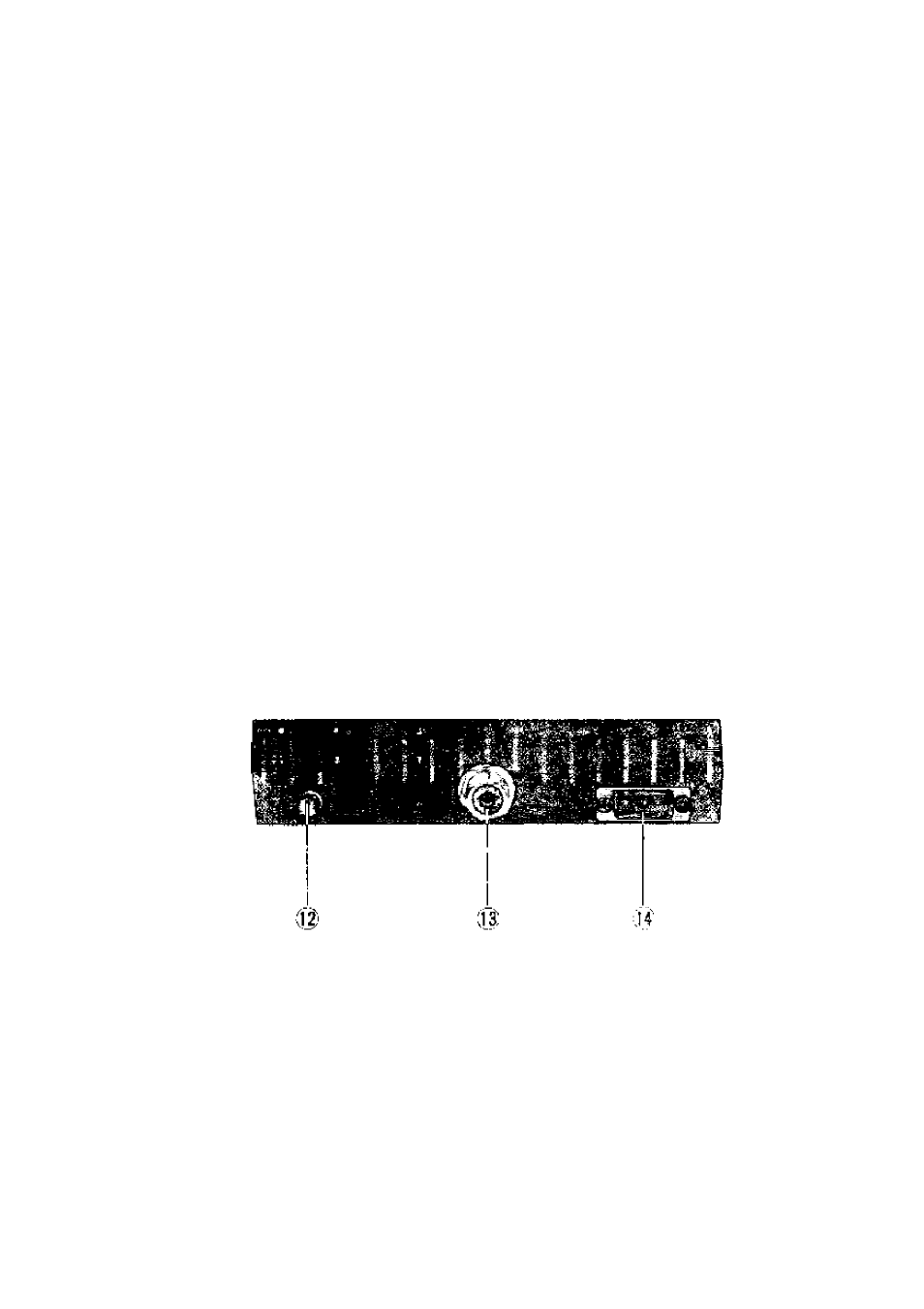

REAR PANEL CONNECTORS
12. REMOTE SPEAKER CONNECTOR ... If it is desired to use another speaker
in addition to the one in the radio, a four or eight ohm speaker equipped with
a miniature phone plug may be connected to this jack.
13. DC POWER CONNECTOR . . , Battery connections are to be made with the
cable supplied to mate with this connector. Remember, red is -f-, black is The
power cord is equipped with a fuse to protect the radio. Use only a Six (6)
AMPERE fast blow fuse for replacement,
14. ANT CONNECTOR . . .This connector is for connection of the antenna. A
type PL259 connector is required to make proper connection.
8 -
