2-7
Ring Speed
Ring Speed
The module defaults to a 16Mbps ring speed on all rings. This may be changed
though local management.
Multi-Ring Out Capability
Any port of the module may be configured as a ring-out port through
management software. In this configuration a stand-alone passive concentrator
(such as an IBM 8228) may be added to the ring as shown in Figure 2-5. This
allows for a star-wired network with the MMAC-Plus at the center. Consult the
MMAC-Plus Local Management Guide for information on configuring the ports.

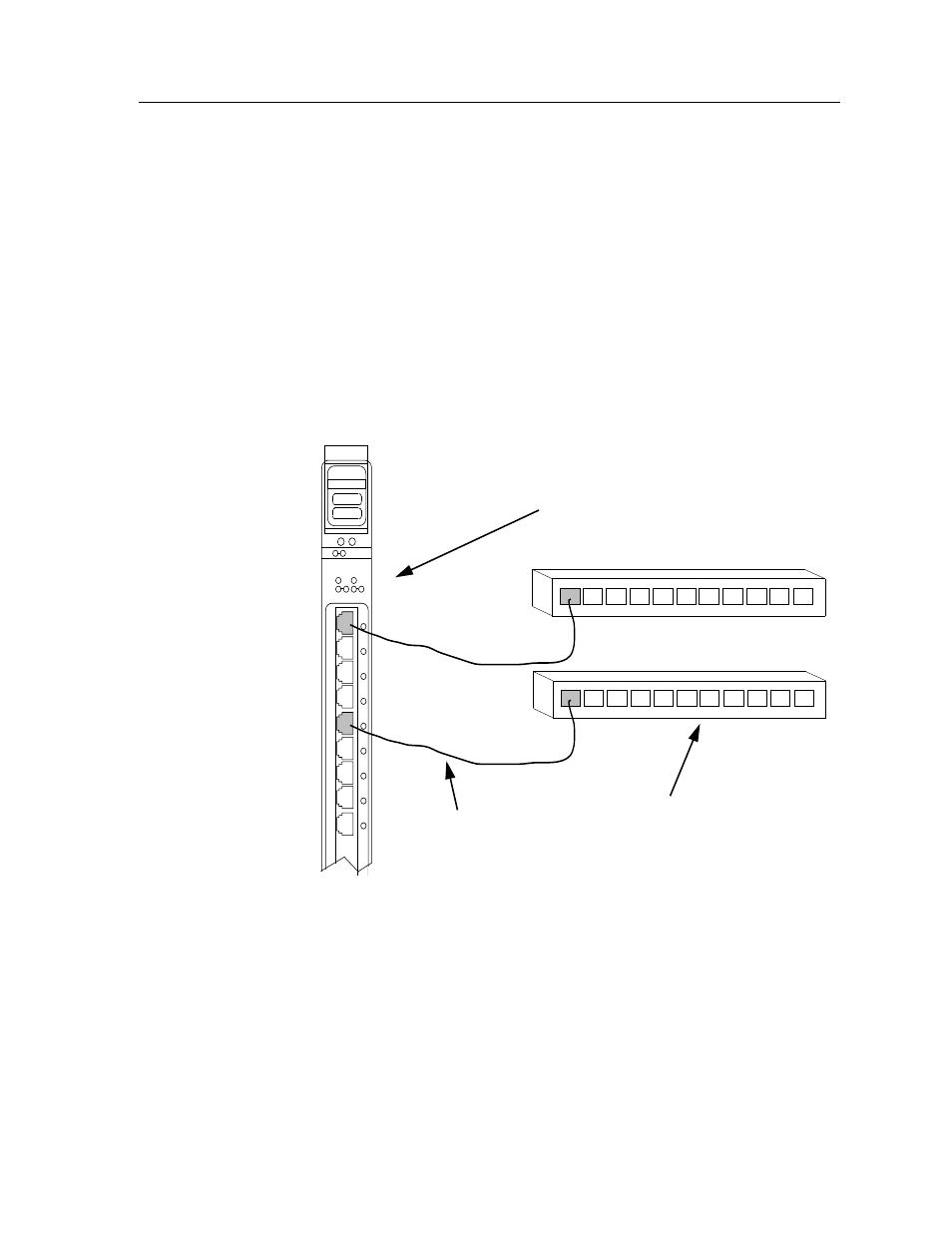

Figure 2-5. Using a Ring-Out Port
9T122-24
TOKEN RING
G
R
O
U
P
1
1
2
3
4
5
6
7
8
9
FNB
SMB CPU
1 2
9T122-24
IBM 8228™
STP Cable
