5-channel System
2-Channels High-Pass, 2-Channels Band-Pass Plus Sub

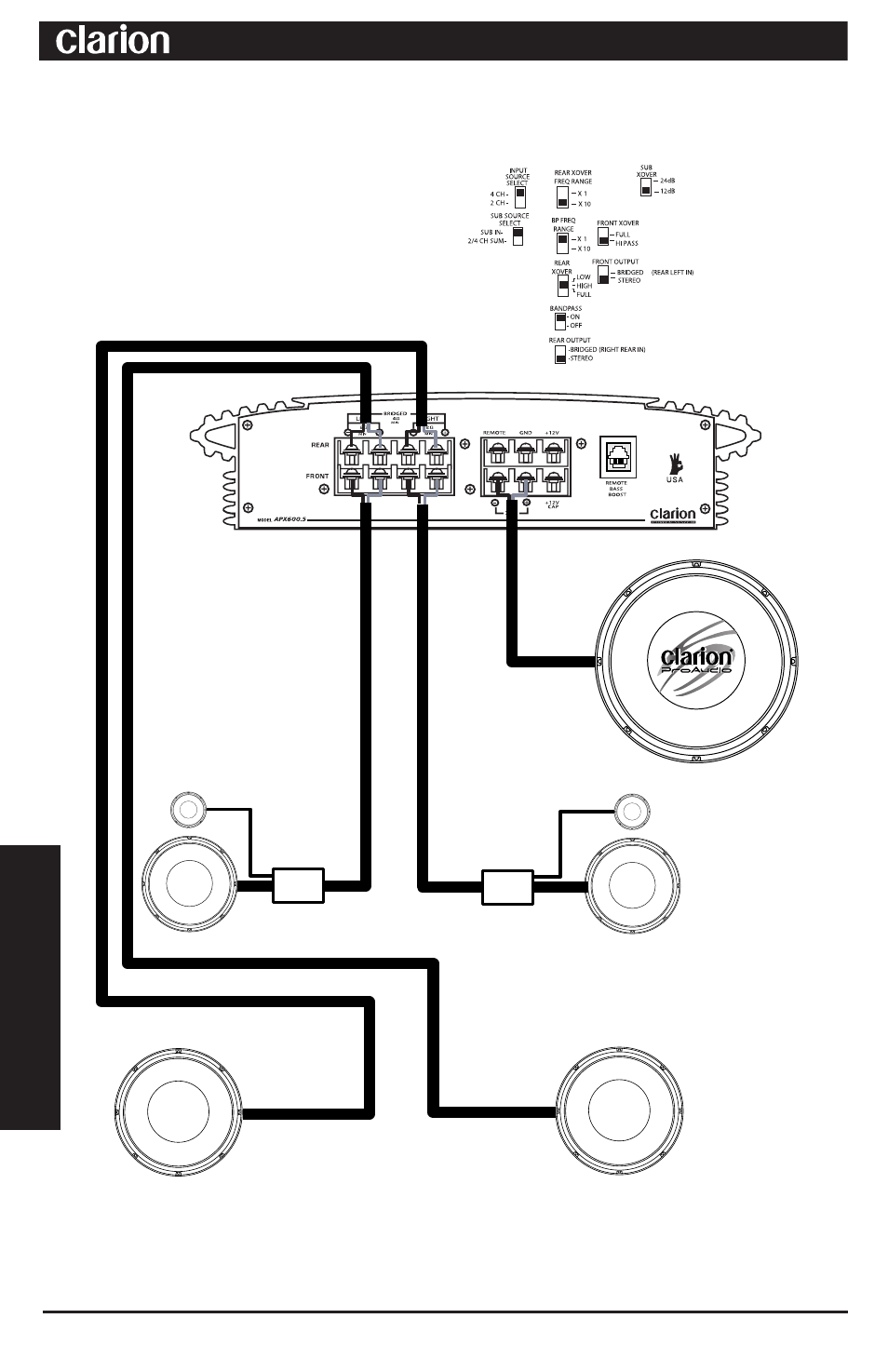

Figure 6 - In this 5-channel system, the APX600.5 drives a pair of stereo
satellites for the front and a pair of stereo mid bass for the rear plus a sub. Note
the system configuration settings.
APX600.5 Power System Amplifier
8
APPLIC
A
T
IONS
APX600.5 Power System Amplifier
APPLIC
A
T
IONS
L Mid Bass R Mid Bass
L Satellite
2-way Passive
Crossover
R Satellite
2-way Passive
Crossover
