brake. This lead must

king brake switch.

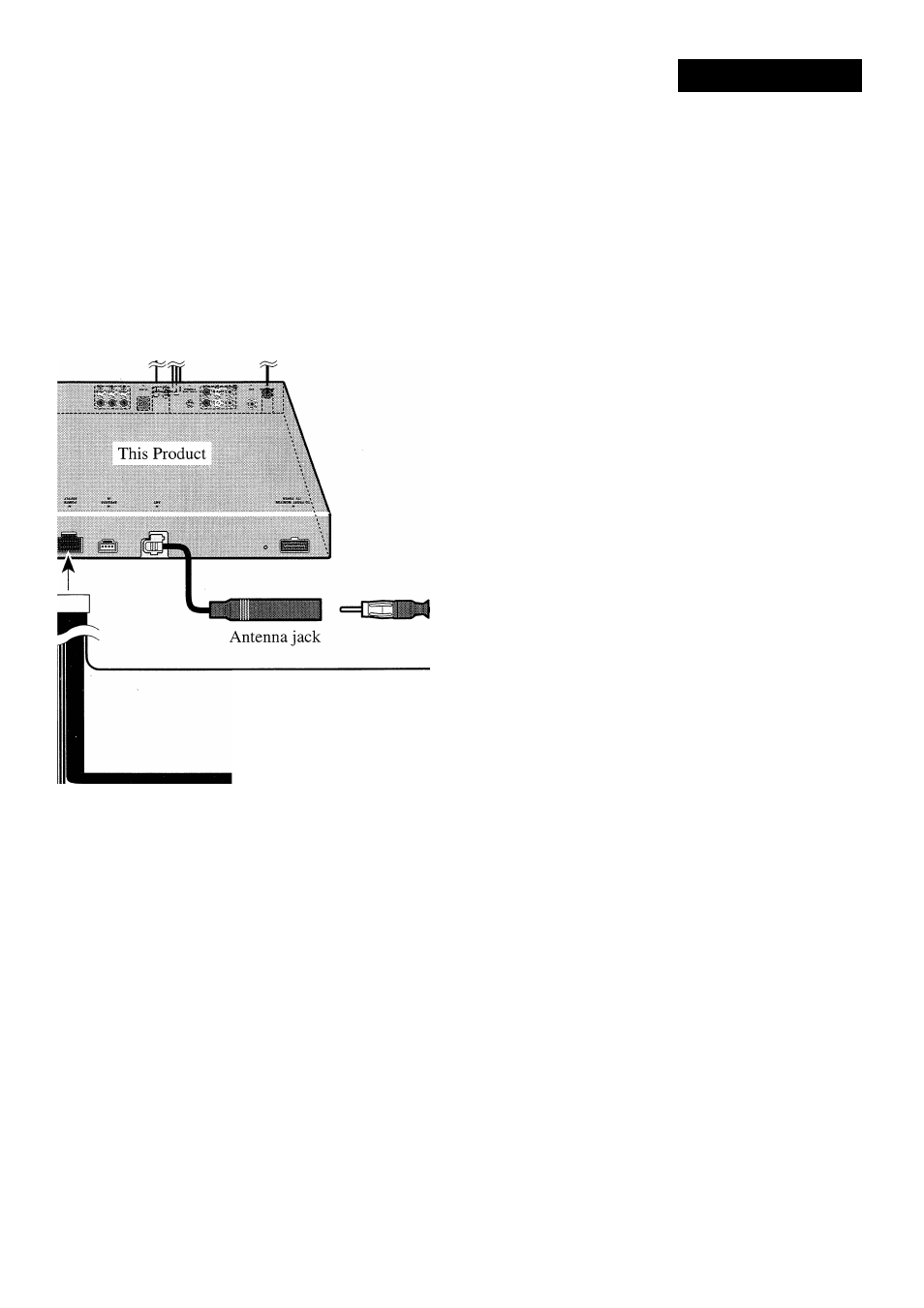

Antenna extension cable (supplied)
If the antenna from the vehicle does not reach
the Antenna jack, use this cable.

6 m

Blue/white
To system control terminal of the power amp

or Auto-antenna relay control terminal.

(Max. 300 mA 12 V DC)

Front

i\ ©

speaker

T]—

Left

White/black

Green

Rear

hn®

speaker

—

Gray

—[|

Front speaker

©^

Gray/black

Violet

Right

—[T

Rear speaker

Green/black Violet/black

With a 2 speaker system, do not connect anything to the speaker leads that are not connected to

speakers.
