Connecting the Units

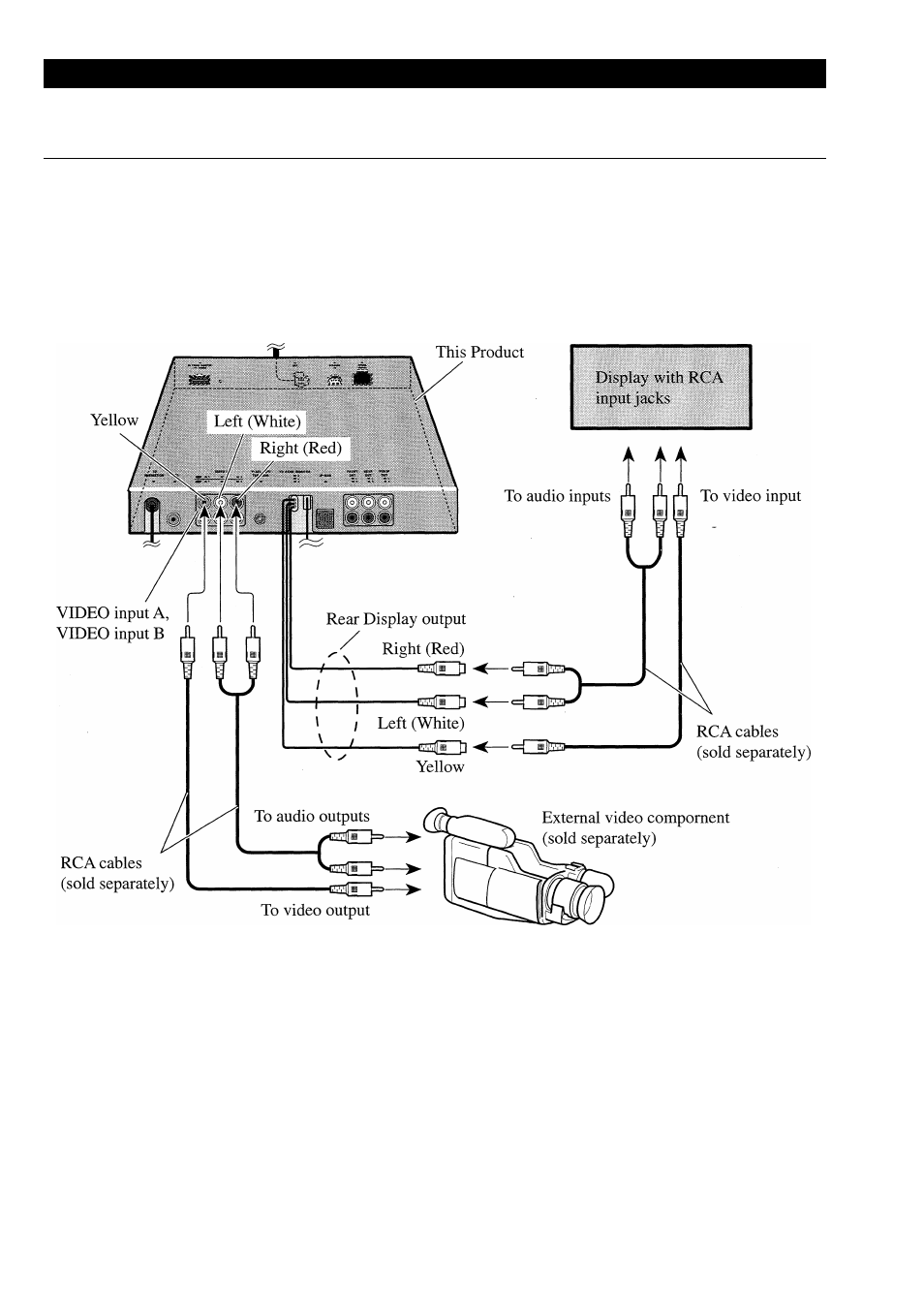

VIDEO Input/Output Connection
It is possible to use up to two external video components by connecting them to the video
inputs A and B on this product.
When connecting the Display with RCA input jacks to Rear Display output, you can also
watch the external video component’s picture.
