This product is an RCA/IP-BUS converting con­
nector designed to be used to connect devises
with RCA output (car navigation units, VCRs,
DAT decks, etc.) to the IP-BUS main unit.
Installation
• Before finally installing the unit, connect the
wiring temporarily and make sure the unit
and the system work properly.
Location
• Install the unit where it does not get in the
driver's way and cannot injure a passenger
if there is a sudden stop, like an emergency
stop.
• Do not mount the player near the heater out­
let, where it would be affected by heat, or
near the doors, where rainwater might
splash onto it
installing the unit
Mounting with Velcro tapes

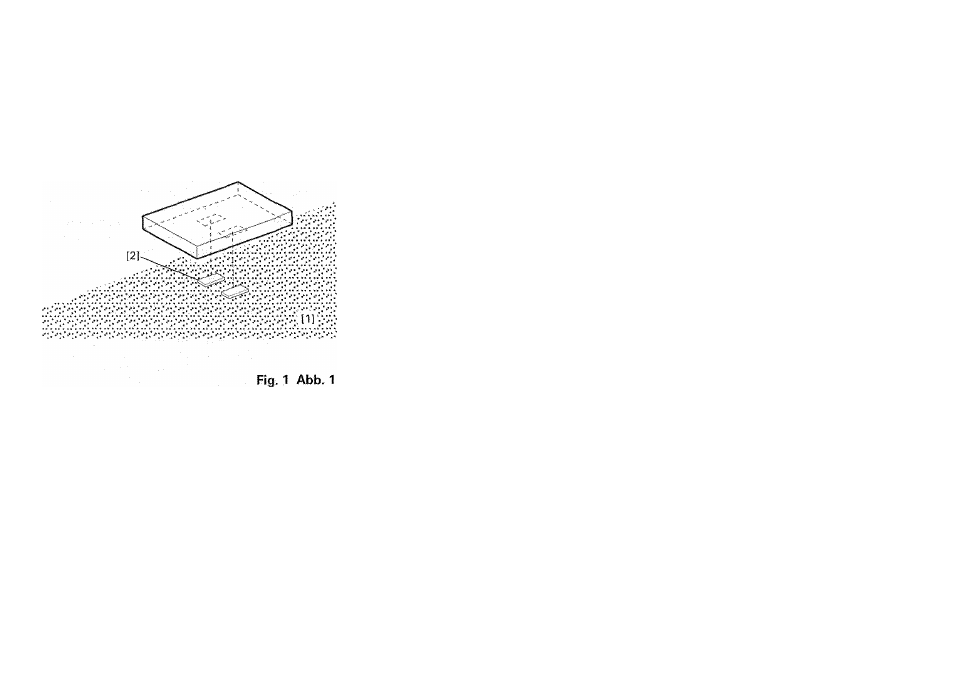

(Fig. 1)
[1] Car mat
[2] Velcro tape
Attach Velcro tape to the bottom of the
unit and the carpet of the vehicle.
In case of trouble
When the unit does not operate properly,
contact your dealer or the nearest autho­
rized PIONEER Service Station.
Specifications
power source
...... 14.4 V DC (10.8—15.6 V allowable)
Grounding system .................. Negative type
Max. current consumption ............ . 50 mA
Maximum rated input level ................ . IV
Dimensions........ 84 (W) x 30 (H) x 87 (D) mm
Weight .................................................. 300 g
Note:
Specifications and the design are subject to
possible modification without prior notice due
to improvements.
