• Before making or changing the connections, switch off the
STANDBY/ON switch and disconnect the power cord from the
AC outlet.

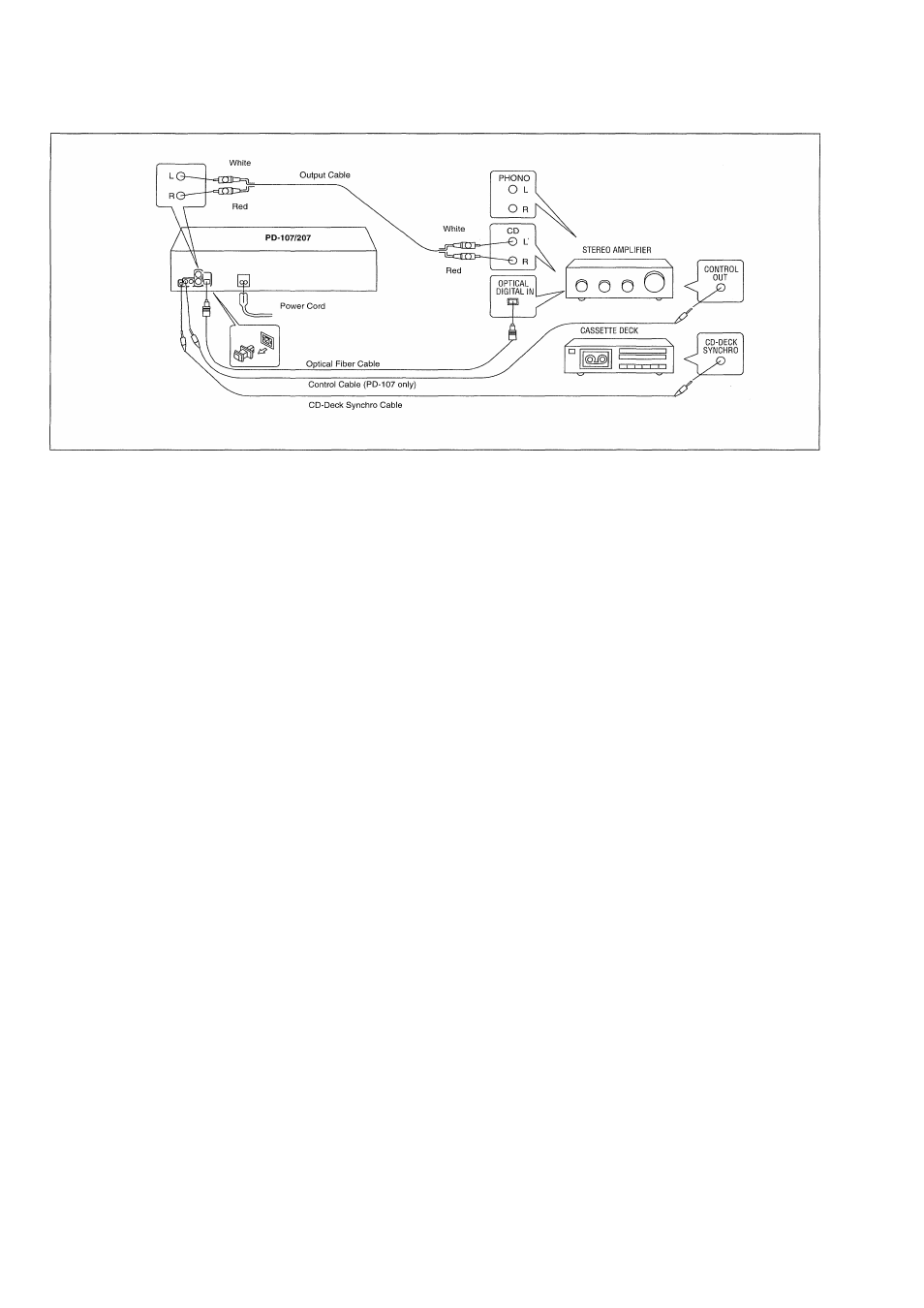

CONNECTING THE OUTPUT CABLE:
Connect the LINE OUT jacks of this unit to the input jacks (CD or
AUX) of the amplifier. Make sure that the white plugs are connected
to the left (L) jacks and the red plugs to the right (R) jacks.
• Be sure not to connect this unit to the amplifier's PHONO jacks,
as sound will be distorted and normal playback will not be
possible.
CD-Deck synchro function
If you have a Pioneer cassette deck provided with the CD-Deck
synchro function, connect the CD*DECK SYNCHRO jacks of the
CD player and cassette deck. With this function, synchro recording
can be carried out between the player and deck.
® For details on connections and operation, refer to the Operating
Instructions supplied with the cassette deck.
« The CD-DECK SYNCHRO cable is not supplied with the CD
player.
NOTE:
In order to enable the CD-DECK SYNCHRO recording function, the
nornnal output cable must be connected to the stereo amplifier.
System remote control with a Pioneer stereo
amplifier that has the Q mark
(Available with the PD-107 only.)
When a Pioneer stereo amplifier bearing the H >^ark is used,
connect the CONTROL IN jack on the rear panel of the CD player
to the CONTROL OUT jack of the amplifier. This will enable the
CD player to be controlled using the remote control unit supplied
with the stereo amplifier. If you do not plan to use this feature, it is
not necessary to connect the CONTROL IN/OUT jacks.
• Be sure to use the supplied control cable.
•
The remote control unit supplied with the amplifier can be
used to control Play, Stop, Pause and Track Search.
• For instructions regarding connections and operation, refer
to the Operating Instructions provided with your stereo
amplifier.
Notes for PD-107:
9 When a control cable is connected to the player's CONTROL IN
jack, direct control of the player with the remote control unit is
not possible. Operate the player with the remote control unit by
aiming it at the amplifier.
• Be sure to connect both of the control cable's plugs securely to
the CONTROL IN and CONTROL OUT terminals. Do not connect
only one end of the cable.
CONNECTING THE OPTICAL FIBER CABLE
This unit can be connected to an amplifier equipped with an optical
digital jack.
1. Remove the protective dust cap from this unit's DIGITAL OUT
OPTICAL jack
2. Use an optica! fiber cable to connect the DIGITAL OUT OPTICAL
jack of this unit to the optical input jack of the amplifier.
• Align the-plug of the optical fiber cable with the optical digital
jack and fully insert the plug to make a secure connection.
Use a separately sold optical fiber cable for the optical digital jack
connections.
Precautions concerning use of optical fiber cables
•
Fully insert the optical fiber cable plugs all the way into the
jacks.
• Be careful not to fold or crimp the cable. When coiling an optical
fiber cable for storage, make sure the diameter of the coil is 15
cm (6 in.) or larger.
• Use an optical fiber cable with a length of 3 m (10 ft.) or less.
• Protect the optical fiber cable plugs from scratches and dust.
•
When the unit is not connected using an optical fiber cable, be
sure to keep the protective dust cap plugged into the optical
digital output jack at all times.
CONNECTING THE POWER CORD:
Connect the power cord to a household AC wall outlet or an AC
outlet on your amplifier. (See the section "AC power cord connection
and functions" on page 3.)
• Make sure plugs are inserted fully into the jacks and wall outlet.
•
Be sure to turn off the power of the amplifier when connecting
the power cord and output cable.
4
