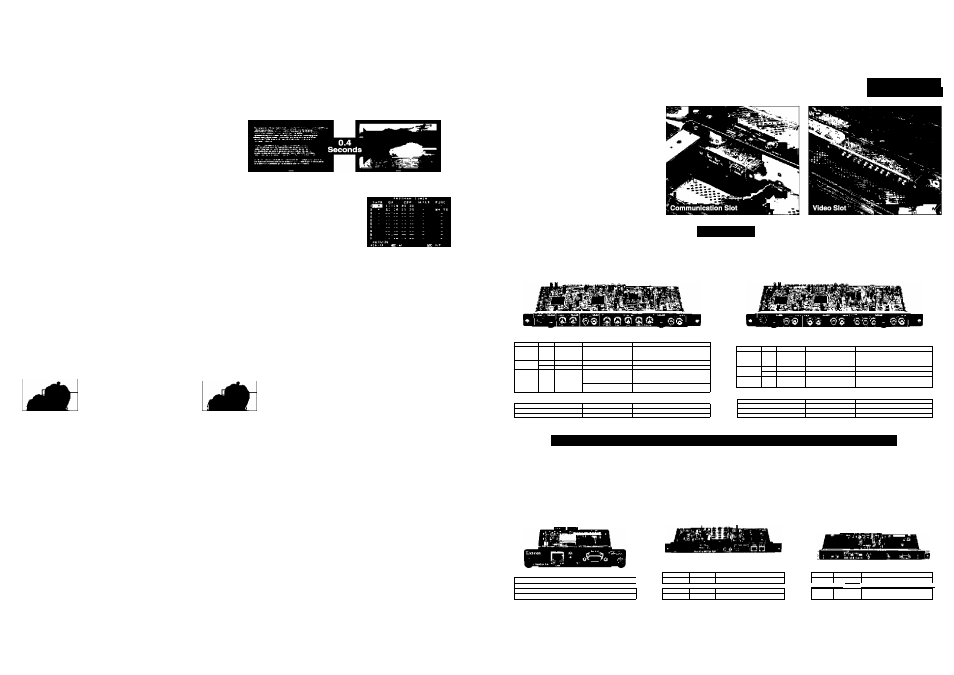

I n t e l l i g e n t S e r v i c e a b i l i t y
RS-232C Status Feedback
When a command is transmitted from a controi device to the PDP via the RS-232C
interface, the PDP returns its status. This not oniy permits remote confirmation
of current PDP status, it can aiso report the cause of errors, shouid they occur,
expediting service response. The PDP-607CMX provides high-controi capacity:
combination (serial ioop through) connections, variabie baud rate setting,
acknowledge function and more.
High Speed Image Switching
The PDP-607CMX has a high-performance, duai-image processing function that
switches from one input image to another at the high speed of approximateiy
0.4 seconds, ensuring smooth dispiays and presentations.
' Serial number information
’ Product model name
' Hour meter
' Interior temperature information
• Power on/off information
• Input signal information
• Cause of error
Programmable Timer and Repeat Timer
AMX Duet™ Program Support
The PDP-607CMX makes use of AMX's Duet™ Partner technology to
offer automatic and smooth system integration. By enabiing two-way
communication with the AMX controiler via the RS-232C interface.
Controi designated functions according to
a schedule by using the weekly timer and ten
programmable functions including power on/off,
input selection, and activation of image retention
alleviation modes. In addition, the Repeat Timer
can be set to repeat various image states at
prescribed times. (When using Video Wall,
operates only with 2x2 and 3x3 configurations)
E n g i n e e r e d R e l i a b i l i t y
Seamless Orbiter
Conventional orbiter modes reduce image retention by moving the displayed
image by one pixel at regular intervals. Because some viewers may notice
the movement, it interferes with a smooth picture quality. The Seamless Orbiter
function, however, moves the entire image in smaller steps of less than a pixel.
Extensive Pioneer research determined the best image orbiting patterns without
creating noticeable movement.
Conventional orbiter modes
The entire image moves one dot at a time. The movement is
easily noticeable.
Seamless Orbiter Mode
Image moves in extremely small steps, so viewers do not notice that it is changing.
Other Image Retention Management Modes
•Auto side mask:
When a 4:3 image is displayed, the side masks are automatically
applied.
»Side mask brightness adjustment:
Adjusts side mask brightness during
4:3 image display.
«White signai dispiay:
Displays white over the entire screen.
E n e r g y E f f i c i e n c y
•Screen reversal dispiay:
Reverses the display image colors to help manage image
retention.
«Soft focus:
Slightly blurs the edges of displayed images, to minimize
noticeable image retention.
Low Power Consumption and Four Energy Saver Modes
This PDP-607CMX achieves the industry's lowest power consumption of 450 W
peak thanks to the high, light emission efficiency of Pioneer's latest exclusive
panel technologies. Four energy saver modes contribute to further lowering
o t h e r F e a t u r e s
power consumption: Power Save, Intermediate, Linear Brightness (which decreases
the peak intensity of high-brightness images), and Video Mute (which temporarily
turns off the displayed image).
• Large GUI Display • Frame Rate Conversion Mode • Dispiay Cail • Point Zoom • Inteiligent Auto Setup
• Coior Detail Adjustment • Smart Cooling System • Vertical and Left to Right Mirror Modes • Priority Input Mode
• Normal and Studio Coior Modes • OSD Off • LED Off • IR and Key Lock • Memory Lock
E x p a n s i v e F l e x i b i l i t y
Unlimited Expandability to Meet Present and
Future Needs - ES* Card Slot Interface
•Expansion Solutions
E X P A N S I O N
S O L U T I O N S
The PDP-607CMX is designed for virtually any type of
application with the integration of two ES Card Slot
interfaces, one for communication and one for enhanced
data. It comes supplied with a removable communication
card that includes RS-232C and combination I/O interfaces.
The second slot may optionally be used to enable
capabilities via a wide range of analog or digital signals,
with additional control. This means that one PDP-607CMX
can be used for multiple tasks, including various
applications that other PDPs can't handle. Extensive
flexibility is available right out of the box, and stays ready
for future needs. Pioneer's "Expansion Solutions" are
one more reason why the PDP-607CMX should be your
first choice for a professional plasma display.
Options
BNC Connector Interface Card
PDA-5003
■ VIDEO INPUT/OUTPUT
3.58NTSC, 4.43NTSC, PAL, SECAM, PAL-N, PAL-M
Connector
Signal
Level/Impedance
INPUTS
IN
Mini DIN 4-pin
(S tenninal)
Y/C Separate Video Signal
Y:1Vp-p/75Q
C: 0.286 Vp-p/75 a (NTSC)
0.3Vp-p/7SQ(PAL)
INPUT4
IN
BNC
Composite Video Signal
1 Vp-p/76Q
OUT
BNC
Composite Video Signal
75 Q
INPUTS
IN
BNCxS
Analog RGB Signal
(Compatible with G on Sync)
RGB: 0.7 Vp-p/75 Q
G on Sync: 1 Vp-p/75 0
HD/CS,VD:TTLIevel/750 or2.2kQswltchable
Component Video Signal
Y:1 Vp-p/75 Q
Pb/Cb, Pr/Cr: 0.525 Vp-p/75 0 (75% saturation)
■ AUDIO INPUT/OUTPUT
Connector
Level/Impedance
AUDIO INPUT(INPUT3/4)
RCA pin X 2
L/R: 500 mVims/more than 10 kQ
AUDIO INPUT(INPUT5)
RCApinx2
IVR: 500 mVrms/more than 10 kQ
RCA Connector Interface Card
PDA-5004
■ VIDEO INPUT/OUTPUT
3.58NTSC, 4.43NTSC, PAL, SECAM, PAL-N, PAL-M
Connector
Signal
Level/Impedance
INPUTS
IN
Mini DIN 4-pln
(S terminal)
Y/C Separate Video Signal
Y: 1 Vp-p/75 Q
C: 0.288 Vp-p/75 Q (NTSC)
0.3 Vp-p/75 Q (PAL)
INPUT4
IN
RCA
Composite Video Signal
1 Vp-p/75 Q
OUT
RCA
Composite Video Signal
75 Q
INPUTS
IN
RCAxS
Component Video Signal
Y. 1 Vp-p/75 Q
Pb/Cb, Pi/Cr 0.525 Vp-p/75 Q (75% saturation)
■ AUDIO INPUT/OUTPUT
Connector
Level/Impedance
AUDIO INPUT(INPUTS)
RCA pin X 2
L/R: 500 mVrms/more than 10 kQ
AUDIO INPUT(INPUT4)
RCA pin X 2
L/R: 500 mVrma/more than 10 kQ
AUDIO INPUT(INPUT5)
RCA pin X 2
L/R: 500 mVrma/more than 10 kQ
Pioneer's Certified Third Party Expansion Solution Cards
IP Link™ Interface Module
Extron® Electronics
IPL M PDP-ES
This compact ethernet control card enables
IP-based remote control, proactive monitoring,
and troubleshooting.
I/O
Connector
Signal
LAN
аМ5
10Base-T, haK/full duplex with autodetec^
1 1 1200,2400,4800,9600,19200,38400 baud (adjustabis)
RS-232
D-sub 9-pln
8dala bits, 1 stop bit, no partly
For more information: Extron Electronics
1230 South Lewis Street, Anaheim, CA 92805 USA
Tel: 800-633-9876 or 714-491-1500 Fax:714-491-1517
lntegr£rted Analog CAT-5 Receiver
Magenta Research
MultiView^AKIOOOPDP
Enables high resolution video distribution over
CAT-5/UTP. Signals can be transmitted over
longer distances.
Maximum resolution: 1920 x 1200 @ 60 Hz (From 0 ft. to 1000 ft.)
Video compatibility: RGBHV, RGsB, NTSC, PAL
I/O
Connector
Signal
Unk IN
RJ-4S
MuttiVlew fomiat Video and Serial Data
Unk OUT
ам5
The UTP signal to be daisy-chained (6 PDP)
Optional OUT
HD9
Fuii Modem serial option
Optional Audio
RCAx2(L+R)
/Vjdk)
For more information: Magenta Research, Inc.
934 Federal Road, Brookfield, CT 06804 USA
Tel: 203-740-0592 Fax: 203-740-0596
HDSDI Digital Video Interface
Alcorn McBride
PDP HDSDI™
Allows the PDP to connect directly to professional
quality broadcast equipment or any other device
with SMPTE-292M and SMPTE-259M output
capability.
i/o
Connector
Signai
input
BNC
SMPTE-292M and SMPTE-259M
I
Loop Through | BNC
I
Buffered &R94:lock0dSMFTE.292M loop through |
Analog input
Mini D-sub 15-pin RGBHV/YPbPr component Tri-levei or
Bi-leveisync
For more information: Alcorn McBride Inc.
3300 S.Hiawassee Road, #105, Orlando, FL 32835 USA
Tel: 407-296-5800 Fax: 407-296-5801
*Third party Expansion Solutions cards are not Pioneer products and are subject to each manufacturer’s own warranty.
