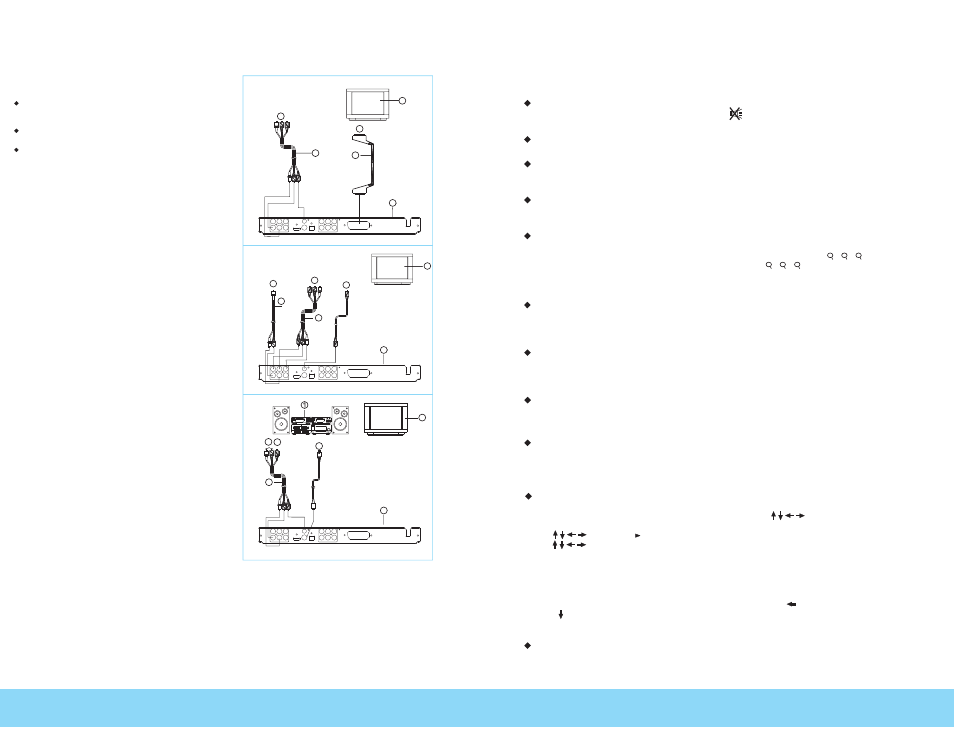

BASIC CONNECTION

Ensure that the power switch of this unit and
other equipment to be connected is turned off
before commencing connection.
Read through the instructions before connecting
other equipment.
Ensure that you observe the colour-coding
when connecting audio and video cords.

A: Connecting to a stereo TV set

1. TV set (optional)
2. DVD/CD player
3. Connecting Video, R/L audio cords
4. To TV set audio input connector
5.Connecting cord to Scart jack(option)
6.To Scart jack
To get the best viewing quality you are advised to
use S-video cord to connect the TV set with S-video
input and to change the TV set to S-video input mode.

B: Connection to monophonic TV

1. TV set (optional)
2. DVD/CD player
3. Audio cords
4. To TV set audio input connector
5. To TV set video input connector
6.Component connector cord (optional)
7.To TV component (Y,Pb/Cb,Pr/Cr)input connector

C: Connection to audio equipment

1. Audio player (optional)
2. TV set (optional)
3. DVD/CD players
4. Video/audio cords
5. To TV video input connector (yellow)
6. To audio input connectors (red, white)
7. To TV S-video input connector

OPERATION

MUTE

Press MUTE button during play, the player shows

and there is no audio output (silence),

Press again to cancel MUTE.

VOL+/VOL-

Press VOL+/VOL- button play may change volume for audio output.

RETURN

For VCD when playing 2.0 PBC is operating. Press RETURN key, it will return to menu mode.

OSD

Press OSD button during play to show the disc s relevant information on TV screen(such as
playing time, chapter number, playback status).

ZOOM

Zoom function can only be operated in JPEG disc and VCD/DVD format disc. By pressing zoom
button
When playing JPEG disc, there are 3 levels of zoom available( 1, 2, 3)

when playing DVD/VCD discs, there are 3 levels of zoom available ( 1, 2, 3)

Note: Zoom function is not working on PAL system DVDs.

MP3 does not have this function

A-B REPEAT

Press A-B button during playback at the point where repeat play is to commence (a) then press again
at the point where repeat play is to be concluded (B). Repeat playback between point (A) and point (b)
starts. Press A-B button once more where TV screen appears REP OFF to return to normal play.

REPEAT

Press the repeat key to choose repeat play chapter or title (DVD) and play single audio or full disc
(VCD, CD, MP3).
Note: Some VCD do not have repeat function with PBC ON state.

PBC function (only VCD)

When playing VCD 2.0 press PBC button to display title menu use number key choice and ENTER
button to play music.

ANGLE

Press ANGLE continuously during playback DVD disc to toggle the disc between available angles
recorded on the disc if the disc has multi-angle function.

When playing DVD/MP3/JPG discs. Press RETURN key, it will return to menu mode.

AUDIO

Press AUDIO button during playback to toggle between available audio language recorded on
the disc if the disc has this multi-language.

Press AUDIO button could toggle available audio language soundtracks.

Note:

PROGRAM

Press PROG button, the program playback screen appears on the TV monitor, 12 tracks
or chapters can be programmed. Use number(0-9,10+) and

button on the remote

control to select your preferred track (CD/VCD) or title and chapter (DVD),
press

button to

play , then press ENTER button to confirm.

“

”

pr es s

but t on to “c lea r p ro gr am ” , th en pr es s EN T E R b ut to n to cle ar pr og ra m .

Yo u can only pr es s the P LAY b ut to n o n the re mot e co nt ro l to s ta rt p lay ing af te r yo u
f inis h th e pr og ra m s et tin g. P re s s th e PR O G but t on dir ec t ly to re tu rn to no rma l p lay mod e.
I n t his c as e , th e pr og ram is no t co nf irm ed.

Pb/Cb

Pr/Cr

COAXIAL

HDMI

S-VIDEO

OPTICAL

VIDEO

CEN

SCART OUT

AUDIO

Pb/Cb

Pr/Cr

COAXIAL

HDMI

S-VIDEO

OPTICAL

VIDEO

CEN

SCART OUT

AUDIO

Pb/Cb

Pr/Cr

COAXIAL

HDMI

S-VIDEO

OPTICAL

VIDEO

CEN

SCART OUT

AUDIO

CD/MP3 PROGRAM

P re ss PRO G b ut t on, t he p r og ra m pla y bac k sc r ee n a ppe ar s o n the T V mo nit or,
Select the “Edit mode” on the TV screen and press divect key “

” to program and select track.

p re s s “

” b u t to n s elect “and t o p ro gr am ” th en pr es s the “ E NT ER ” an d s ele c t “pr ogr am v iew ”.

P re ss t he “ Play ” b ut to n to p r ogr am p lay ing .
