INSTALLATION REQUIREMENTS
installation hardware

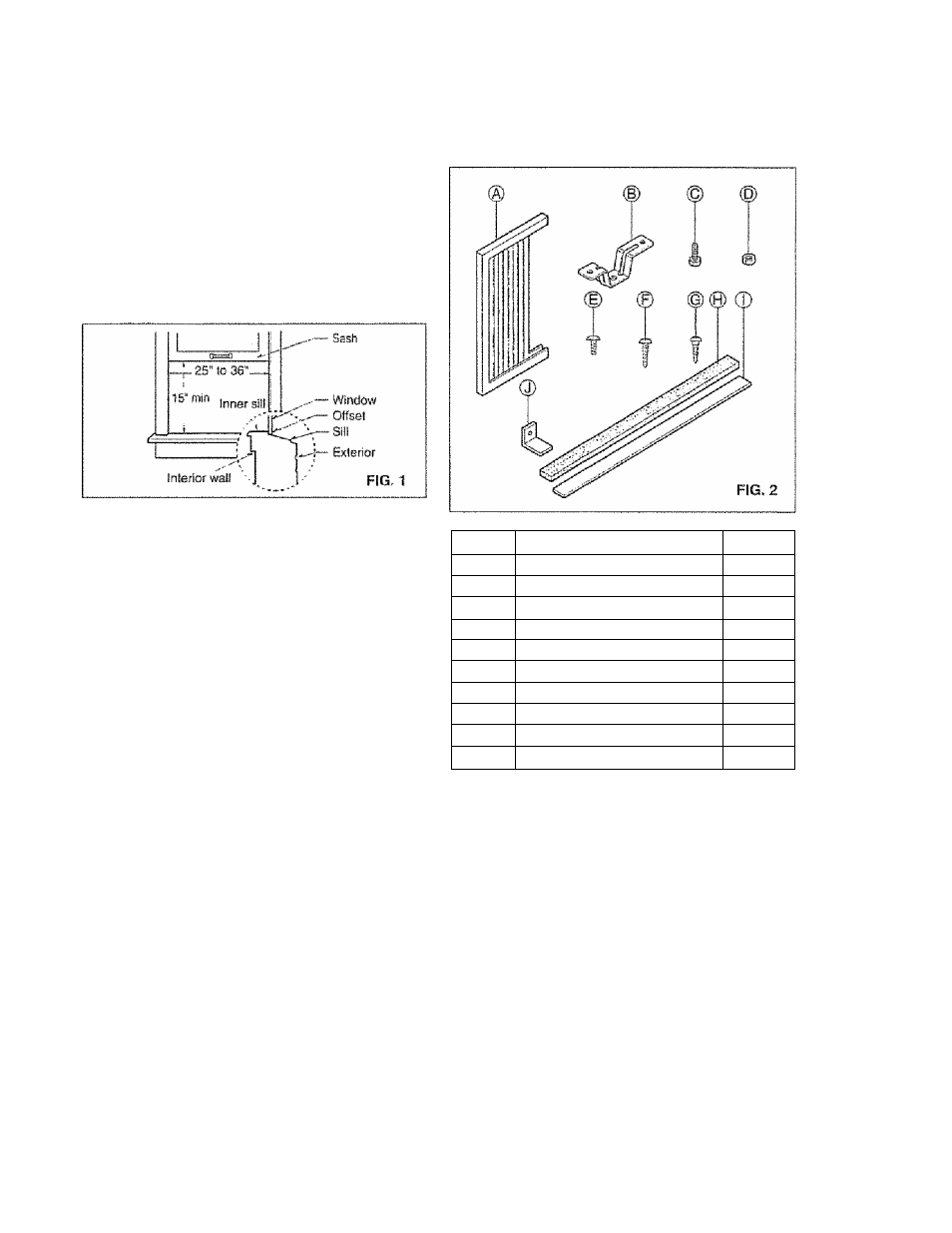

Your air condttfoner wil! install into standard double hung
windows with actual dear opening widths of 25 to 36
inches (635mm to 9l4mm) {FIG 1)
Lower sash must open sufficiently to ailow a clear
verlicai opening of 15 inches (381mm).. Side louvers
and the rear of the air conditioner must have dear
air space to allow enough airflow through the
príndAn^íPr fnr hppf rpmn\/Al TH
a tpat rtf fhp Jinif
f I I «4/4 J Í tk I I I 1%!./ ■ a l.> If l\.# i eS'Ciij \J I LI I ^4# l-iCl I E V
must be outdoors, not inside a building or garage.
pi cpTDir*AI CiFRVirF
Check your available electrical service. The power
supply available must be the same as that shown
on the unit nameplate {found on right side of cabinet)
All models are equipped with a 3-prong service plug
to provide proper service and safe positive
grounding. Do not change plug in any way Do not
use an adapter plug. If your present wall outlet does
not match your plug, call a qualified electrician to
make the necessary corrections,
SAVE CARTON and this OWNER'S MANUAL for
future reference. The carton is the best way to store
unit during winter or when not in use.
* •
To avoid risk of personal injury, property damage,
or product damage due to the weight of this
device and sharp edges that may be exposed!
• Air conditioners covered in this manuai pose an
excessive weight hazard Two or more people
are needed to move and instail the unit,
To prevent injury or strain, use proper lifting and
carrying techniques when moving unit,.
»Carefully inspect location where air conditioner
will be installed. Be sure it will support the
weight of the unit over an extended period of
time.
■ Handle air conditioner with care. Wear
protective gloves whenever lifting or carrying the
unit. AVOID the sharp metal fins of front and
rear coils.
»Make sure air conditioner does not fall during
installation.
ITEM NAME OF PARTS Q'TY
A SIDE CURTAIN 2
y
0 SILL SUPPORT 2
C BOLT 2
D LOCK NUT 2
E SCREW: 25/64"
13
p
SCREW: 5/8"
3
G
SCREW: 5/8" 5
H FOAM STRIP
1
1
FOAM SEAL
1
J L
BRACKET
1
REQUIRED TOOLS:
. Tight Fitting gioves
• Standard screwdriver
• Phillips screwdriver
• Pliers
• Sharp knife
• 3/8-inch open end wrench or adjustable wrench
• 1/4-inch hex socket and ratcher
• Tape measure
»Electric drill
»1/4-inch drill bit
- 5
