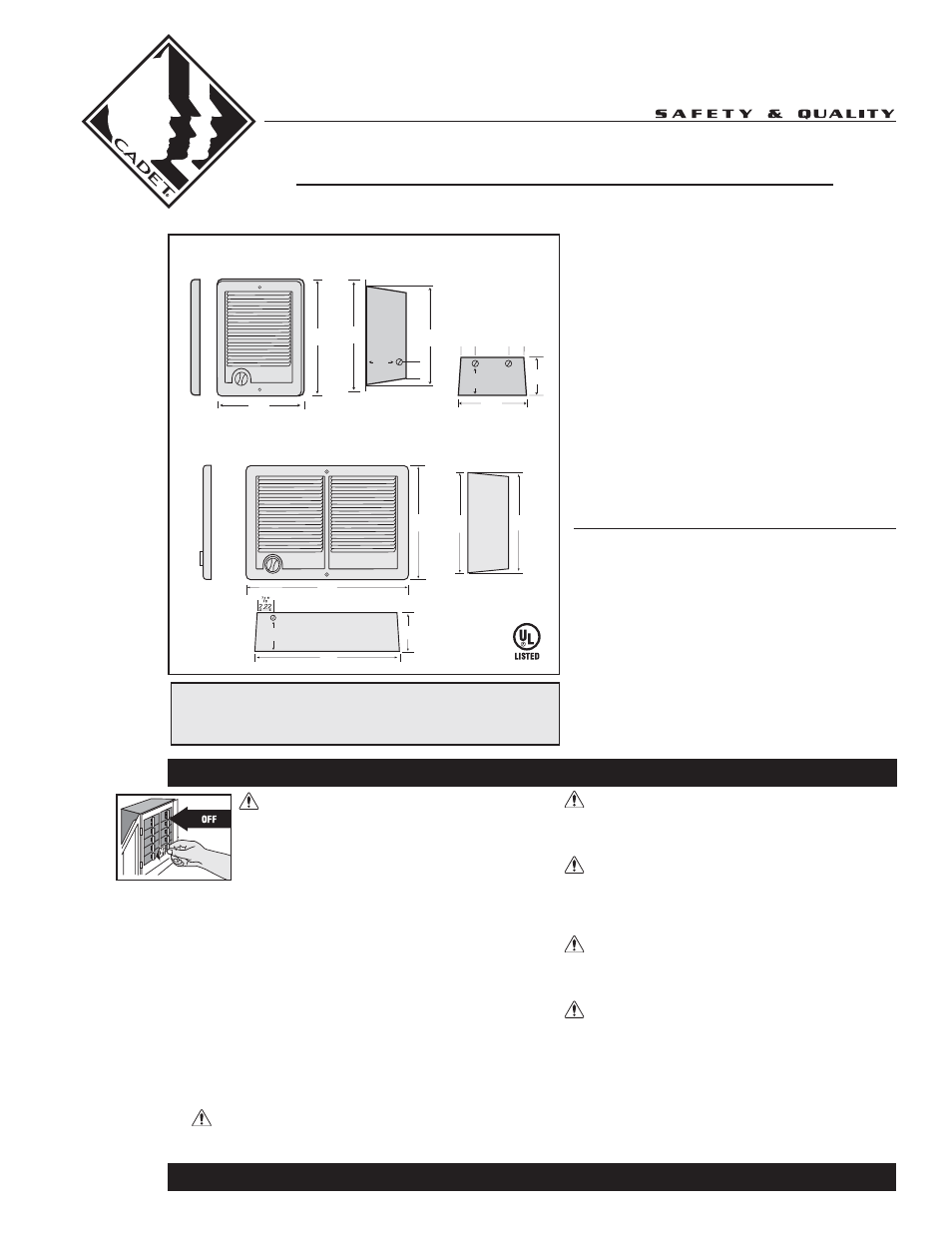

OWNER’S GUIDE

The Com-Pak

Plus

SAVE THESE INSTRUCTIONS

IMPORTANT INSTRUCTIONS

11

1

/

2

29.21

3

1

/

4

8.26

1

1

/

4

3.18

10”

25.4

1

3

/

4

4.45

1

1

/

4

3.18

7

7

/

8

20.00

4”

10.16

3”

7.62

9”

22.86

12”

30.48

10”

25.4

11

1

/

8

28.26

12”

30.48

16

1

/

4

41.27

The Com-Pak

TM

Plus Model C

The Com-Pak

TM

Twin Plus Model CT

Side

Wall Can Side

Grill Front

Wall Can Bottom

Side

Wall Can Side

Grill Front

TOOLS REQUIRED:
Phillips Screwdriver
Straight Screwdriver
Wire Strippers

Utility Knife
4 1

1

/

2

“ Wood Screws

3 Insulated Wire Connectors
1 Strain Relief Connector

WARNING

Turn the electrical power off at the electrical
panel board (circuit breaker or fuse box) and
lock or tag the panel board door to prevent
someone from turning on power while you are
working on the heater. Failure to do so could
result in serious electrical shock, burns, or
possible death.

1.

Read all instructions before using this heater.

2.

Read all information labels. Verify that the electrical supply
wires are the same voltage as the heater.

3.

All electrical work and materials must comply with the National
Electric Code (NEC), the Occupational Safety and Health Act
(OSHA), and all state and local codes.

4.

Connect the grounding pigtail (copper wire) provided in the wall
can to the supply ground wire.

5.

If you need to install a new circuit or need additional wiring
information, consult a qualified electrician.

6.

Protect electrical supply from kinks, sharp objects, oil, grease,
hot surfaces or chemicals.

7.

WARNING

Overheating or fire may occur. Do not install the heater in a floor,
behind doors, or outdoors.

8.

WARNING

Fire or explosion may occur. Heater has hot and arcing or sparking
parts inside. Do not install heater in any area where combustible
vapors, gases, liquids, or excessive lint or dust are present.

9.

WARNING

Burn Hazard. This heater is hot when in use. To avoid burns, do
not let bare skin touch hot surfaces. Use extreme caution when
any heater is used by or near children or invalids and whenever
the heater is left operating unattended.

10.

WARNING

Risk of Electrical Shock. Keep all foreign objects out of heater.
Do not operate after heater malfunctions or has been dropped or
damaged in any manner.

11.

WARNING

Risk of Fire. Do not block heater. Heater must be kept clear of all
obstructions: a minimum of 3 feet in front, 6 inches above and on
both sides. Heaters must be kept clean of excessive lint, dirt and
debris. (See Maintenance Instructions).

12. Use this heater only as described in this manual. Any other use

not recommended by the manufacturer may cause fire, electrical
shock, or injury to persons.

360-693-2505 Fax: 360-694-8668 P.O. Box 1675 Vancouver, WA 98668-1675

3”

7.62

14

1

/

2

36.83

4”

10.16

Features & Benefits

Primary and secondary thermal safeguards

Commercial grade high temperature
manual reset

Over temperature one-time thermal
device

Nichrome element wrapped around mica
insulators for durability

Powder coat paint process eliminates
sharp cutting edges

Two year extended warranty

Wall can designed for ease of installation

Factory tested

MODELS
The Com-Pak

TM

Plus

C051

*C051T

C152

*C152T

C052

*C052T

C202

*C202T

C072

*C072T

C208

*C208T

C102

*C102T

C101

*C101T

C122

*C122T

C151

*C151T

The Com-Pak

TM

Twin Plus

CT252

*CT252T

CT102

CT302

*CT302T

CT402

*CT402T

CT408

*CT408T

*Standard built-in thermostat is single pole and has no

“OFF” position

Wall Can
Bottom
