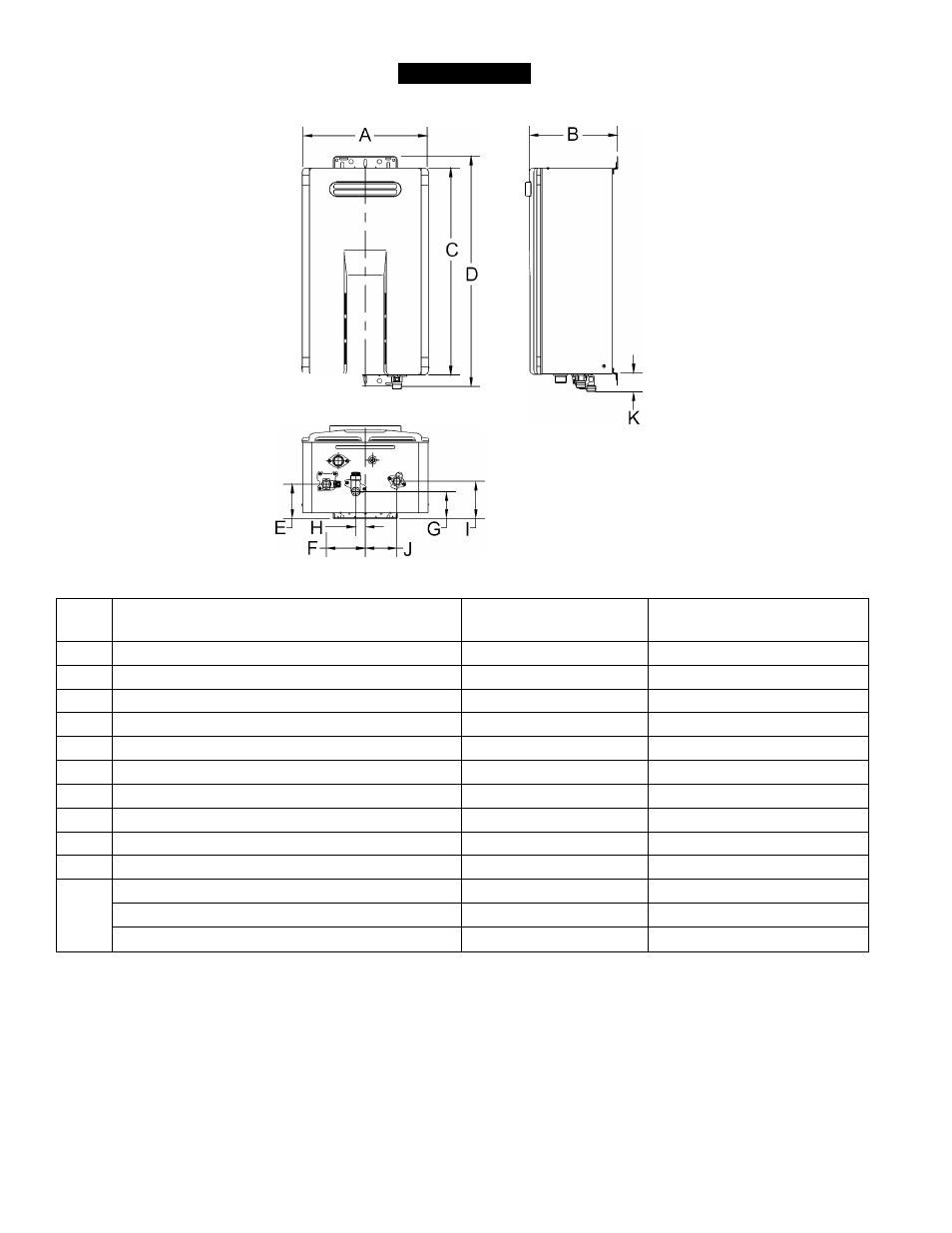

DIMENSIONS
DIM DESCRIPTION
305 Series
in. (mm)
505 Series
in. (mm)
A Width 14 (355.6) 14 (355.6)
B Depth * 9.8 (249.5) 9.8 (249.5)
C Height - Unit 22.9 (582) 22.9 (582)
D Height - with brackets 25.4 (646.4) 25.4 (646.4)
E Hot Water Outlet - from wall * 3.8 (96) 3.8 (96)
F Hot Water Outlet - from center 4.3 (110) 4.3 (110)
G Cold Water Inlet - from wall * 3.0 (76) 3.0 (76)
H Cold Water Inlet - from center 1.1 (27) 1.1 (27)
I Gas Connection - from wall * 4.1 (104) 4.1 (104)
J Gas Connection - from center 3.5 (89) 3.5 (89)
From base to gas connection 1.6 (40) 1.6 (40)
K From base to cold connection 2.0 (50) 2.0 (50)
From base to hot connection 1.6 (41) 1.6 (41)
* This is the minimum dimension from the wall. The wall bracket is adjustable to allow an additional 1.57 inches (40 mm).
305 & 505 Outdoor Manual
