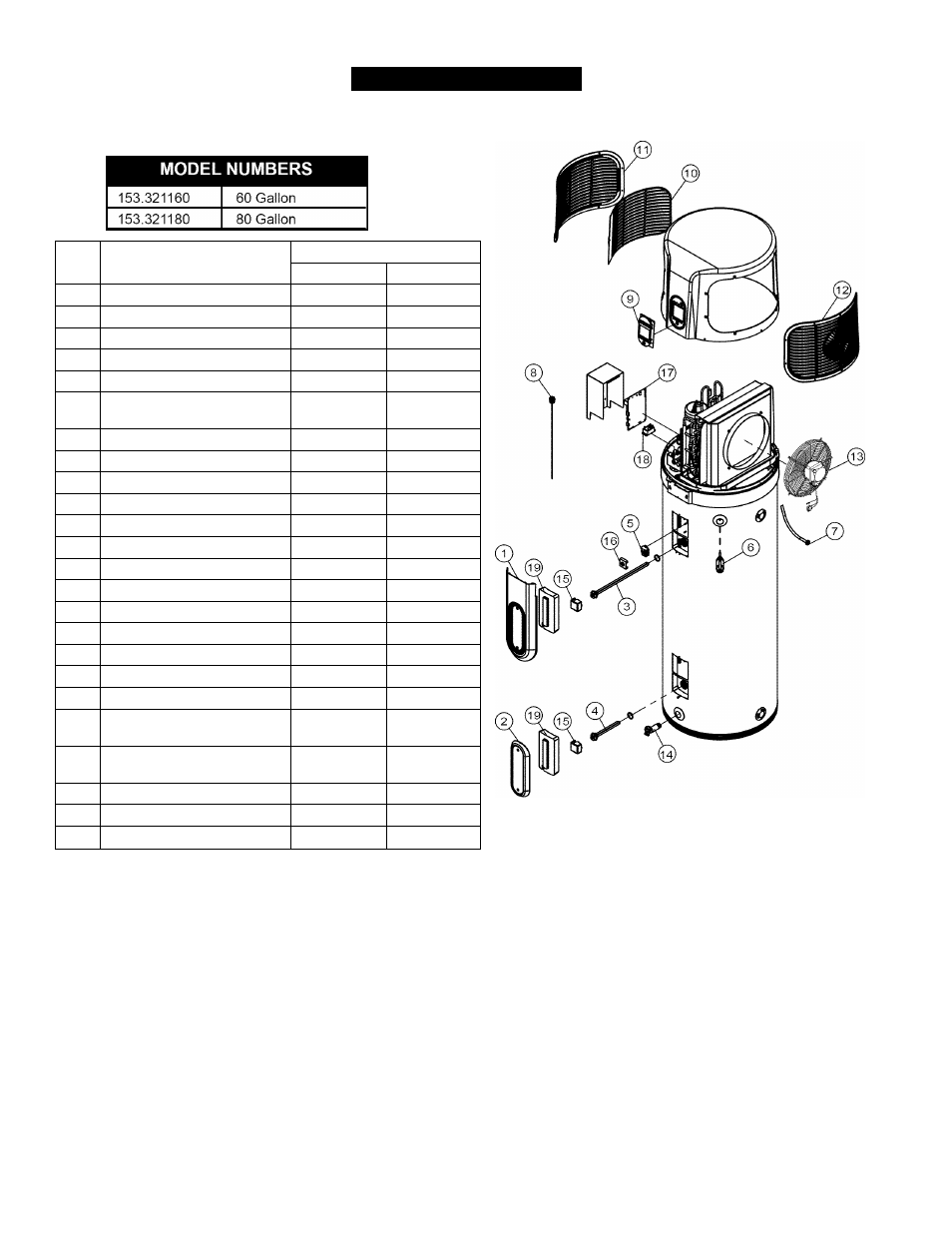

REPAIR PARTS LIST
KENMORE ELITE HYBRID ELECTRIC
HEAT PUMP WATER HEATERS
ITEM
NO.
PARTS DESCRIPTION
MODEL NUMBER
153.321160 153.321180
1 Upper Access Cover 409230-000 409230-000
2 Lower Access Cover 409231-000 409231-000
3 Upper Element (4500 Watts) 9007479015 9007479015
4 Lower Element (2000 Watts) 9003946115 9003946115
5 Energy Cut-Off (ECO) Switch 9007480015 9007480015
6 Temperature & Pressure
Relief Valve (T&P)
9007483005 9007483005
7 Dip Tube (at hot water outlet) 9007481015 9007481015
8 Powered Anode Rod 9007324005 9007564005
9 User Interface Module 9007478005 9007478005
10 Air Filter 9007482005 9007482005
11 Air Inlet Side Panel 409184-000 409184-000
12 Air Outlet Side Panel 409185-000 409185-000
13 Fan Assembly 9007486005 9007486005
14 Drain Valve 9001870015 9001870015
15 Element Terminal Cover 409195-000 409195-000
16 ECO Cover 408454-000 408454-000
17 Control Board 9007477005 9007477005
18 Compressor ECO Relay 9007476005 9007476005
19 EPS Cover 409196-000 409196-000
20** Ambient / Coil / Discharge
Temperature Sensor
9007473015 9007473015
21** Upper / Lower Tank
Temperature Sensor
9007474015 9007474015
22** Run Capacitor 9007475005 9007475005
23** Control Board Module Fuses 9007485015 9007485015
24** Manual 319994-000 319994-000
Not Shown
Now that you have purchased this water heater, should a need ever
exist for repair parts or service, simply contact any Sears Service
Center or call 1-800-4-MY-HOME® (1-800-469-4663). Be sure to
provide all pertinent facts when you call or visit.
All Parts listed may be ordered from any Sears Service Center and
by calling 1-800-366-PART (1-800-366-7278).
If the parts you need are not stocked locally, your order will be
electronically transmitted to a Sears Repair Parts Distribution Center
for handling.
The model number of the water heater will be found on the model
rating plate located near the access panel.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION:
Model Number
Serial Number Part Number
Part Description
THIS IS A REPAIR PARTS LIST, NOT A PACKING LIST.
