Cooktop Display Windows
The cooktop controls provide a digital display for each
of the cooking zone located on the cooktop. Power levels
and messages are easily monitored and adjusted using the
corresponding control keypads in combination with the
window displays.
The Available Power Level Settings
The cooktop control will display heat levels ranging from
Hi (Figure 1) to Lo (Figure 6 ), OFF (Figure 7) and Pb (Power
Boost; Figure 8). The settings between 9.5 (Figure 2) and
3.0 (Figure 3) decrease or increase in increments of .5 (1/2).
The settings between 2.8 (Figure 4) and 1.2 (Figure 5) are
Simmer settings which decrease or increase in increments
of .2 (1/5) to Lo (Figure 6; lowest Simmer setting) for more
precise settings at lower heat levels. The highest setting
“Power Boost” (Figure 8) provides approximately 139%
power for 10 minutes.
Before Setting Surface Controls

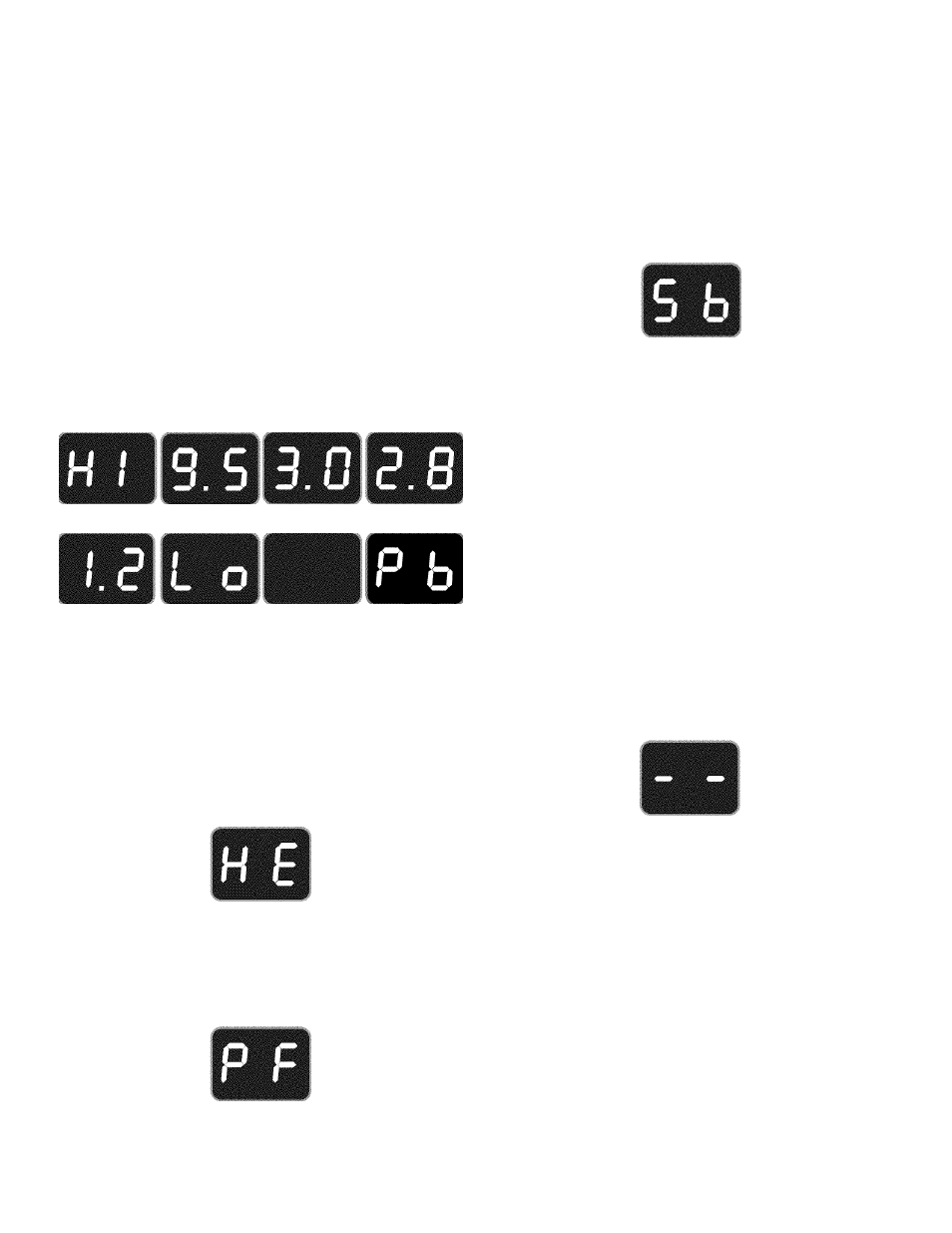

Fig. Fig. 2 Fig. 3 Fig. 4
Fig. 5 Fig. 6 Fig. 7 Fig. 8
Hot Element Indicator
Message
(HE)
After using any of the cooking zones on
the cooktop, the glass surface may be HOT from residual
heat transferred from the cookware and burns may occur if
surface is touched.
The control monitors the temperature of the cooktop and
displays the message “HE” (hot element) warning when the
cooktop is still too hot to touch (Figure 9). If the HE message
appears in the window, the control can still be turned on
again for use.
Fig. 9
Power Failure (PF) Message
The PF message (Figure 10) will be displayed whenever there
has been a power interruption to the appliance. The PF
message will disappear by itself after a few seconds.
Fig. 10
Sabbath Feature (Sb) Message
The cooktop display windows will show the Sb message
whenever the Sabbath feature is active (Figure 11). When
activated, the Sabbath feature works for both the oven
and cooktop together. Once the Sabbath feature is active,
changes to the heat levels for the cooktop heating elements
will not show in the displays. The cooktop will react slower
to heat level changes. See Sabbath feature section for
complete instructions.
Fig. 11
Cooktop Lockout (—)
Use the Cooktop Lockout to lock all surface elements from
being accidentally turned ON (including Warmer Zone). This
feature will only lockout the cooktop features.
To turn the Cooktop Lockout feature ON:
1. Be sure all surface element controls are OFF.
2. Press and hold Cooktop Lockout keypad until acceptance
tone sounds (about 3 seconds).
When the cooktop is locked, the cooktop locked indicator
icon will appear in the oven control display window (Fig. 12).
■■■■■■■I
Fig. 12
The (—) message will appear in the cooktop display windows
whenever the Cooktop Lockout feature is active (See Fig. 13).
Fig. 13
If a triple beep sounds (entry error tone) instead, check
and be sure all surface elements are turned OFF before
activating the Cooktop Lockout feature.
To turn the Cooktop Lockout feature OFF:
Press and hold Cooktop Lockout keypad until acceptance
tone sounds (about 3 seconds). The cooktop locked indicator
light will turn OFF and the cooktop may be used for normal
cooking operations.
Important notes:
• If Cooktop Lockout is active and a power failure occurs,
when power is restored the cooktop will remember the
setting and remain locked.
• Starting a Flex Clean cycle will automatically turn ON the
Cooktop Lockout feature. The cooktop will remain locked
until the Flex Clean cycle is finished and the oven door
has unlocked.
