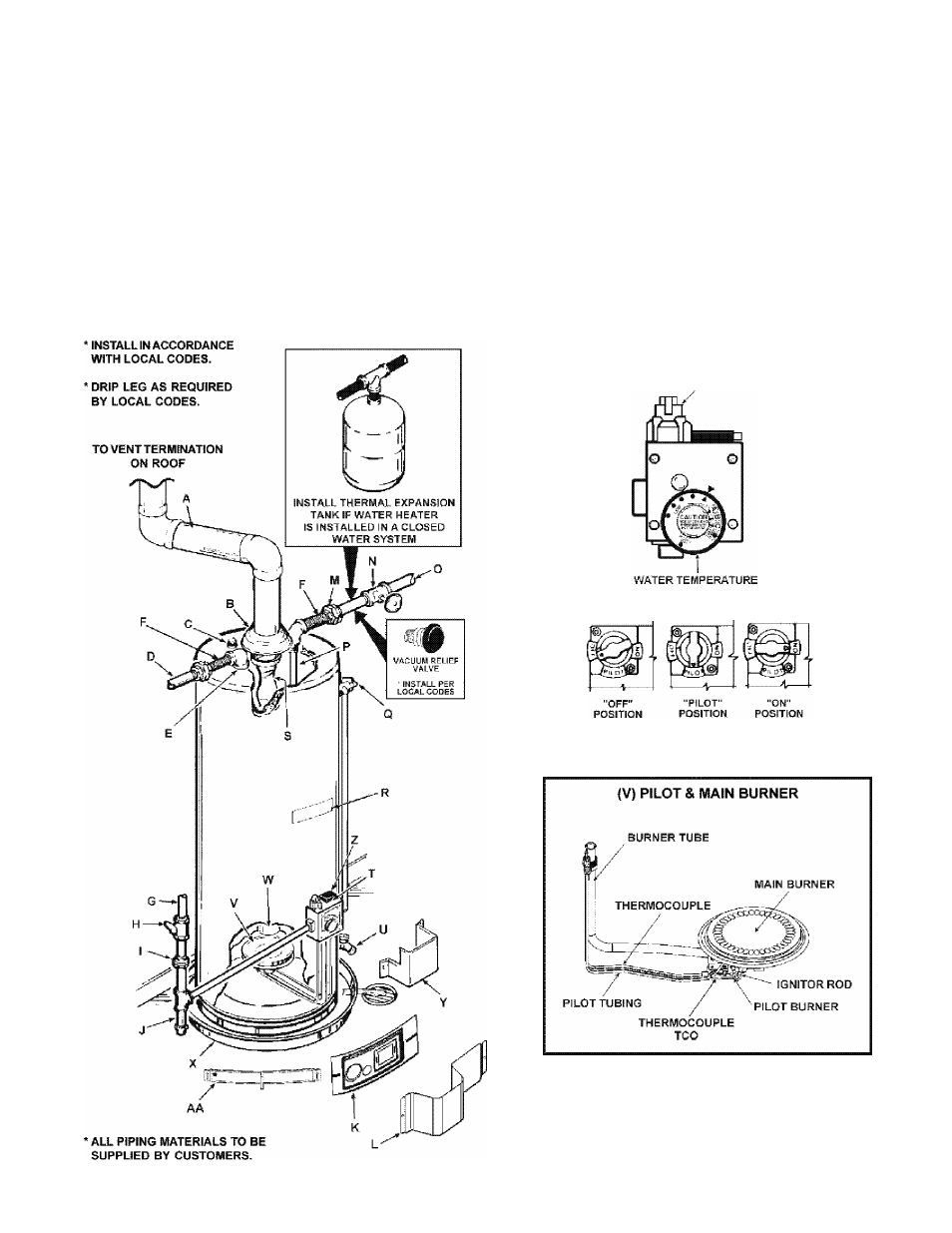

GET TO KNOW YOUR WATER HEATER - GAS MODELS
A
Vent Pipe
J
Drip Leg (Sediment Trap)
S
Flue Baffle
B
Draft Hood
K
inner Door
T
Thermostat
C
Anode
L
Outer door
u
Drain Valve
D
Hot Water Outlet
M
Union
V
Pilot and Main Burner
E
Outlet
N
inlet Water Shut-off Valve
w
Flue
F
Flexible Water Connections
0
Cold Water Inlet
X
Drain Pan
G
Gas Supply
P
Inlet Dip Tube
Y
Thermostat Shield (optional)
H
Manual Gas Shut-off Valve
Q
Temperature-Pressure Relief Valve
z
Piezo Ignitor
1 Ground Joint Union
R
Rating Plate
AA
Air Intake Screen
{T) THERMOSTAT
GAS CONTROL KNOB
(ADJUSTING DIAL)
-TOP VIEW-
FIGUI^I.
7
