Installation Instructions
STEP 9 ATTACH SIDE PANEL TO SUPPORT
BRACKET AND TOGGLE BOLTS
Place the side panel against the panel support bracket and
insert two 1/4" machine screws through the side panel and
support bracket while aligning the side panel with the toggle
bolts. Install the lock washers and 1/4" nuts on the machine
screws but do not tighten.
Install the remaining two 1/4" machine screws through the side
panel and toekick panel. Install the lock washers and 1/4" nuts
on the machine screws, but do not tighten.
Tighten the fosteners in this order:
1. Toggle bolts or wood screws on bock of panel (if present)
2 . Machine screws on top of panel
3. Machine screws on bottom of panel.

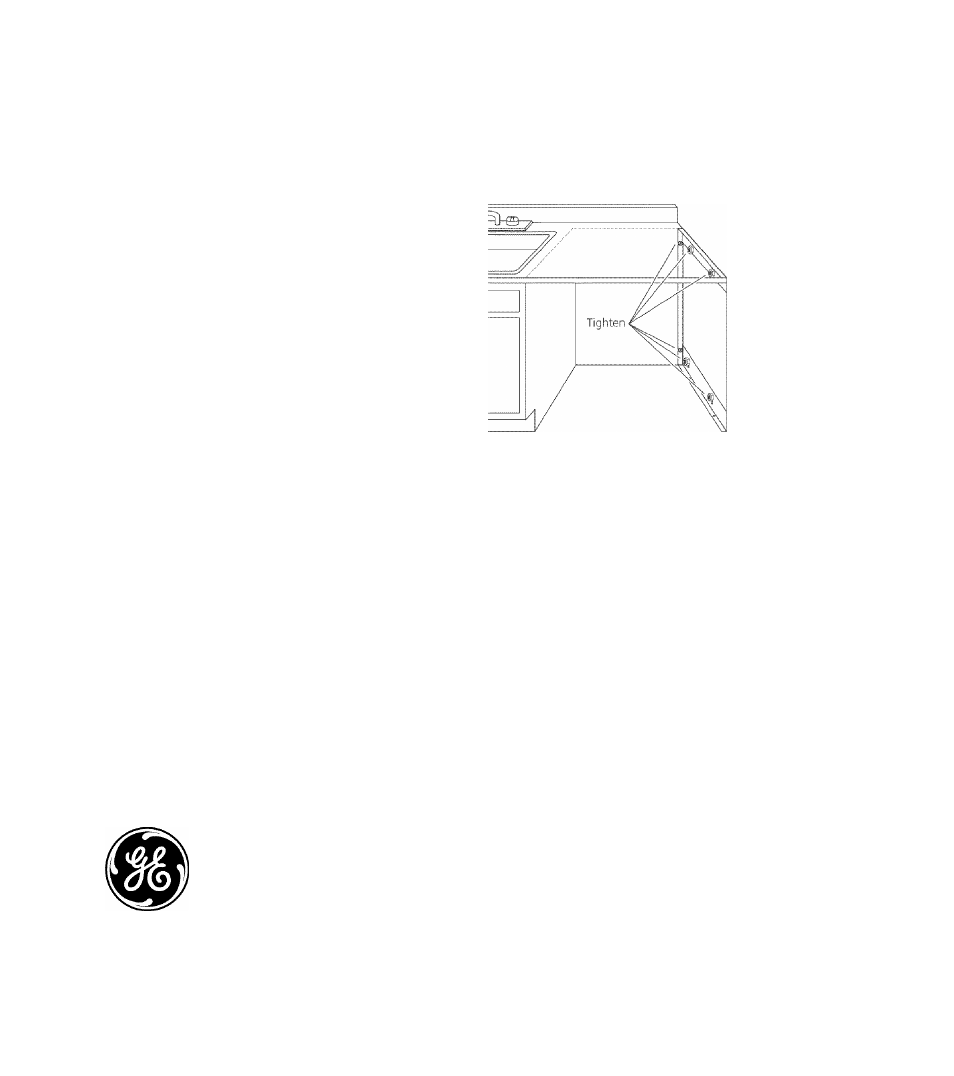

Figure H
imagination at work
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
GE Consumer & Industrial
General Electric Company
Louisville, Kentucky 40225
ge.com
Pub. No. 3030204
Dwg. NO.206C1559P144
ND05J-1434 (9/051
