Installation Instructions

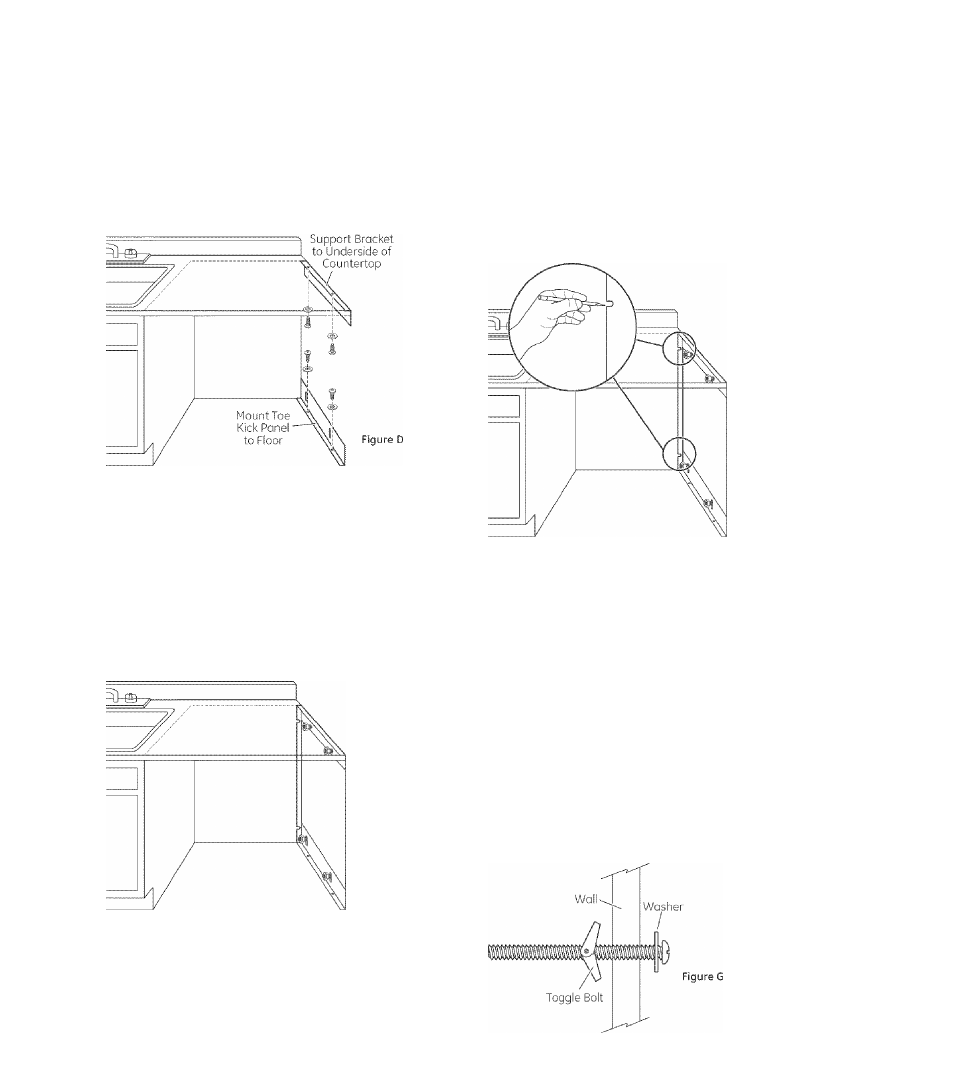

STEP 4 FASTEN PANEL SUPPORT BRACKET
TO UNDERSIDE OF COUNTERTOP
AND TOEKICK PANEL TO FLOOR
Fasten the panel support bracket to the underside of the
countertop using two
#8 x 3/4" wood screws and two 3/16"
flat washers.
Mount Panel
Fasten the toekick panel to the floor using two #10 x 1" wood
screws and two 3/16" flat washers.
If the floor is ceramic tile or similar material that will not accept
screws, use two lag bolts of appropriate size and length along
with 2 flat washers to fosten the toekick panel to the floor.
STEP 5 LOOSELY INSTALL SIDE PANEL
Mount the side panel to the toekick panel and panel support
brocket using four
1/4" x 3/8" machine screws, 4 lock washers
ond four 1/4" nuts. Do not tighten the fosteners at this time.
Figure E
STEP 6 POSITION PANEL AGAINST BACK OF
CABINET
Skip this step and go to Step 10 if the back of the dishwasher
enclosure is not a wall or if you choose not to fasten the side
panel to the back of the dishwosher enclosure.
Gently push side panel against the rear wall of the dishwasher
enclosure. Mork the location of the screw cutouts in the panel
on the back wall of the enclosure.
Figure F
STEP 7 DETERMINE WALL COMPOSITION
If woll is solid or there is a stud behind the panel, attach the
panel to the wall using two #10 x 1" wood screws and two
3/16" flat woshers. Install the screws loosely - do not tighten.
Skip to Step 10
If wall Is hollow, for example, drywoll without a stud, it will
be necessary to use toggle bolts to attach the side panel to
the wall.
STEP 8 INSTALL TOGGLE BOLTS
Remove side panel from toekick and support brocket. Drill a
1/2" hole at each of the positions marked in Step 5. Place a
washer on the 3" mochine screw. Screw the toggle onto the
bolt a few turns. Insert toggle into the top hole in the wall.
Repeot with a second toggle bolt in the bottom hole. Do not
tighten toggle bolts at this time.
