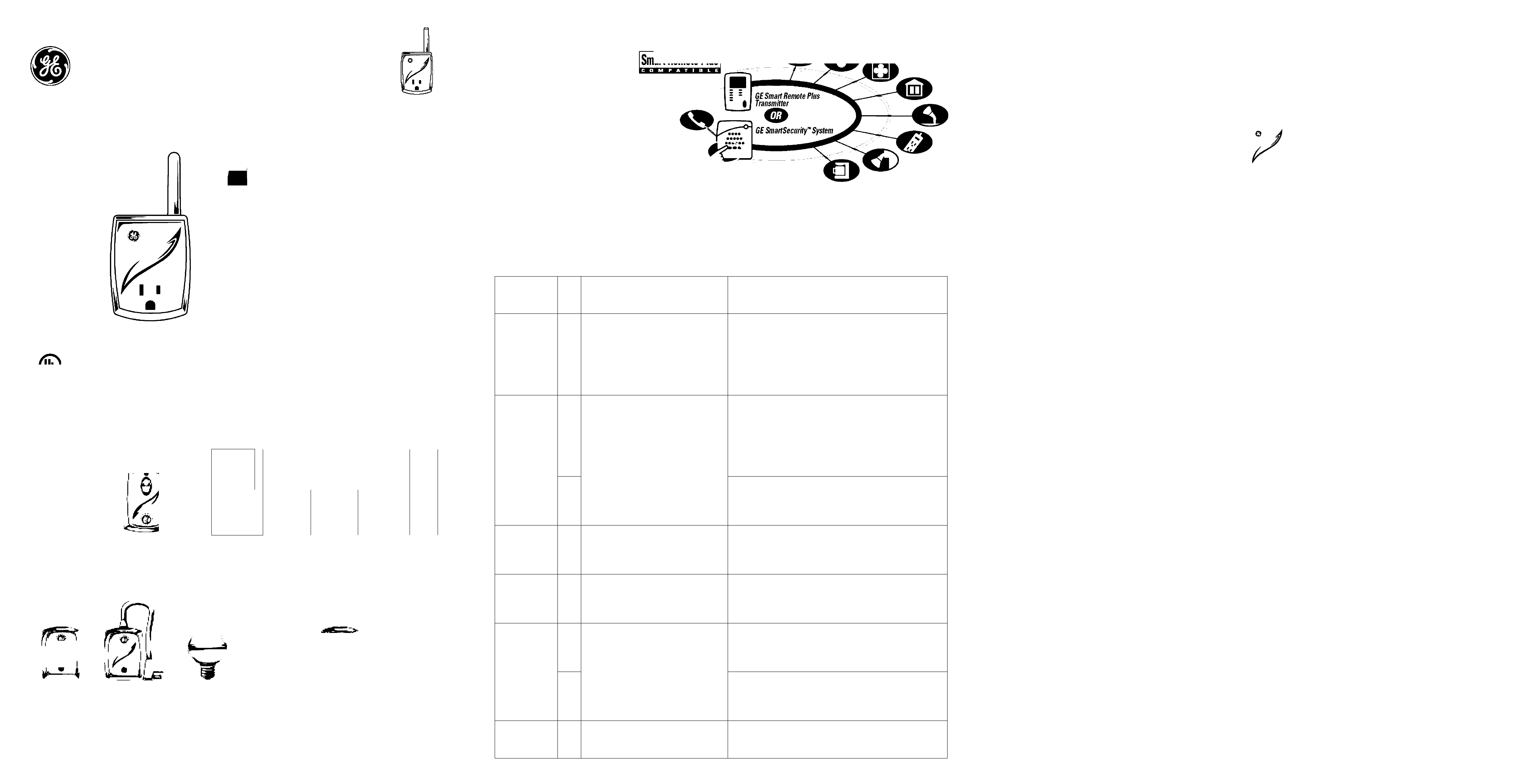

Range Extender
User's Manual
Enclosed you will find
(1) Range Extender
The GE SmartRemote
Plus™ advantage
Any transmitter in the GE Smart Remote Plus
product line is capable of controlling every
receiver—the ultimate in home convenience.
Control any number of light fixtures or
appliances from up to 150ft* away by
choosing the transmitter and receiver
combination that best suits your needs.
Questions?
Call 1-800-443-4924
CV
2
;>US or visit
US
at
listed
A WARNING
Risk of electric shock
• Keep children away
• Use indoors only
• Do not use in wet locations
Risk of fire
• Do not exceed electrical ratings
Range Extender can receive signals from the following GE Smart Remote Plus transmitters (sold separately).
..... . -
r roowc r
1
é mm
1 1
o
aao
aao
□ aa
□ QO
•
Key Chain Remote Wall Mount Control Whole-Home Control Motion-Sensing Control Garage Control
RFIOOTXPS RFI02TXPS RF2000KINPS
RF6I3TX COMING SOONI
.. .And retransmit the signal to any of the following GE Smart Remote Plus receivers (sold separately);
Q
r ^
^
2
^ 'i ^
w
a
Indoor Outlet
RFIOORXPS
Outdoor Outlet
RFI06RXPS
Socket Adapter
RFI04RXPS
Wall Switch
RFI02RXPS
Garage Adapter Dimmer Switch
COMING SOONI COMING SOONI
IMPORTANT! These devices are NOT compatible with devices from other systems.
You must purchase Smart Remote Plus transmitters and receivers to ensure compatibility.
To extend the range of the
transmitters and receivers
in your system, use the
GE Smart Remote Plus
Range Extender
(sold separately).
Range Extender
RFIOORXTX
art Rainnta Plus
Expanding your system
The 6E Smart Remote Plus devices operate on any of 8 user-settable channels. The channels are
easy to set/adjust-with the simple turn of a knob. Setup your GE SmartHome™ by purchasing as
many transmitters and receivers as you need. The following ta ble is just one example of how you
can configure your Smart Remote Plus system:
Area
CH Transmitters
Receivers
Bedroom
1
Bedside-Wall Mount Control
Entrance-Wall Mount Control
(2) Bedside Lamps - (2) Socket Adapters
Corner Torchiere - Indoor Outlet Adapter
Overhead Light Fixture - Wall Switch
Entertainment System - Indoor Outlet Adapter
Living Room
2
Coffee Table - Timer/Controller
Entrance-Wall Mount Control
(2) End Table Lamps - (2) Socket Adapters
Overhead Light Fixture - Wall Switch
Entertainment System - Indoor Outlet Adapter
Christmas Tree - Indoor Outlet Adapter
3
Window Santa - Indoor Outlet Adapter
Lighted Poinsettia - Indoor Outlet Adapter
Basement
4
Entrance-Wall Mount Control
(4) Overhead Can Rxtures - (4) Socket Adapters
(2) Fluorescent Fixtures - (2) Indoor Outlet Adapters
Garage
5
Entrance-Wall Mount Control
(2) Huorescent Rxtures - (2) Outdoor Outlet Adapters
Overhead Light Rxture - Wall Switch
Outdoor
6
Foyer-Wall Mount Control
Car Keys - Key Chain Remote
Entry Light-Wall Switch
Coach Lantern-Wall Switch
7
Christmas Ughts - Outdoor Outlet Adapter
Yard Santa - Outdoor OutletAdapter
Kitchen
8
Entrance-Wall Mount Control
Coffee Maker - Indoor OutletAdapter
Operating Instructions
FOR INDOOR USE ONLY
1. Plug the Range Extender into a powered, grounded 125VAC outlet located halfway between the
transmitters and receivers.
a
ft*a
transmitters
I I
©
j
V
any
receiver(s)
150 FT* transmitter only range
300 FT* transmitter plus Range Extender range
2. The unitwill receive and retransmit signals from transmitters operating on any one of the 8 CHANNELS
and 4 HOUSE CODES (32 combinations). There is no need to set the CHANNEL or HOUSE CODE on
your Range Extender as it is designed to retransmit all 32 combinations automatically.
3. Using any ofthe transmitters, test the installation by using the ON and OFF buttons. An indicator
on the Range Extender lights RED when a signal is received and retransmitted.
4. Use the convenient 'ALWAYS ON' outlet for any lamp or appliance as needed.
If your unit does network properly or if you want additional assistance, please call 1-800-443 4924.
We would be happy to answer ALL of your questions. Visit us on the web a
to download application notes, manuals and to find out more about the GE SmartHome™ product line!
Specifications
FOR INDOOR USE ONLY
DO NOT EXCEED ELECTRICAL RATINGS
Electrical Rating.................................................................................120 V, 15A, 60 Hz
*Functional range may be adversely affected by one or more ofthe following factors: weather, radio
frequency interference, low transmitter battery and obstructions between the transmitter and receiver.
This device complies with Part 15 ofthe FCC rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and;
2. This device must accept any interference received, including interference that may cause
undesired operation.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Made in China for GE Home Electric Products, Inc.
Nela Park, Cleveland, OH 44112
Desc.: RFIOORXTX
