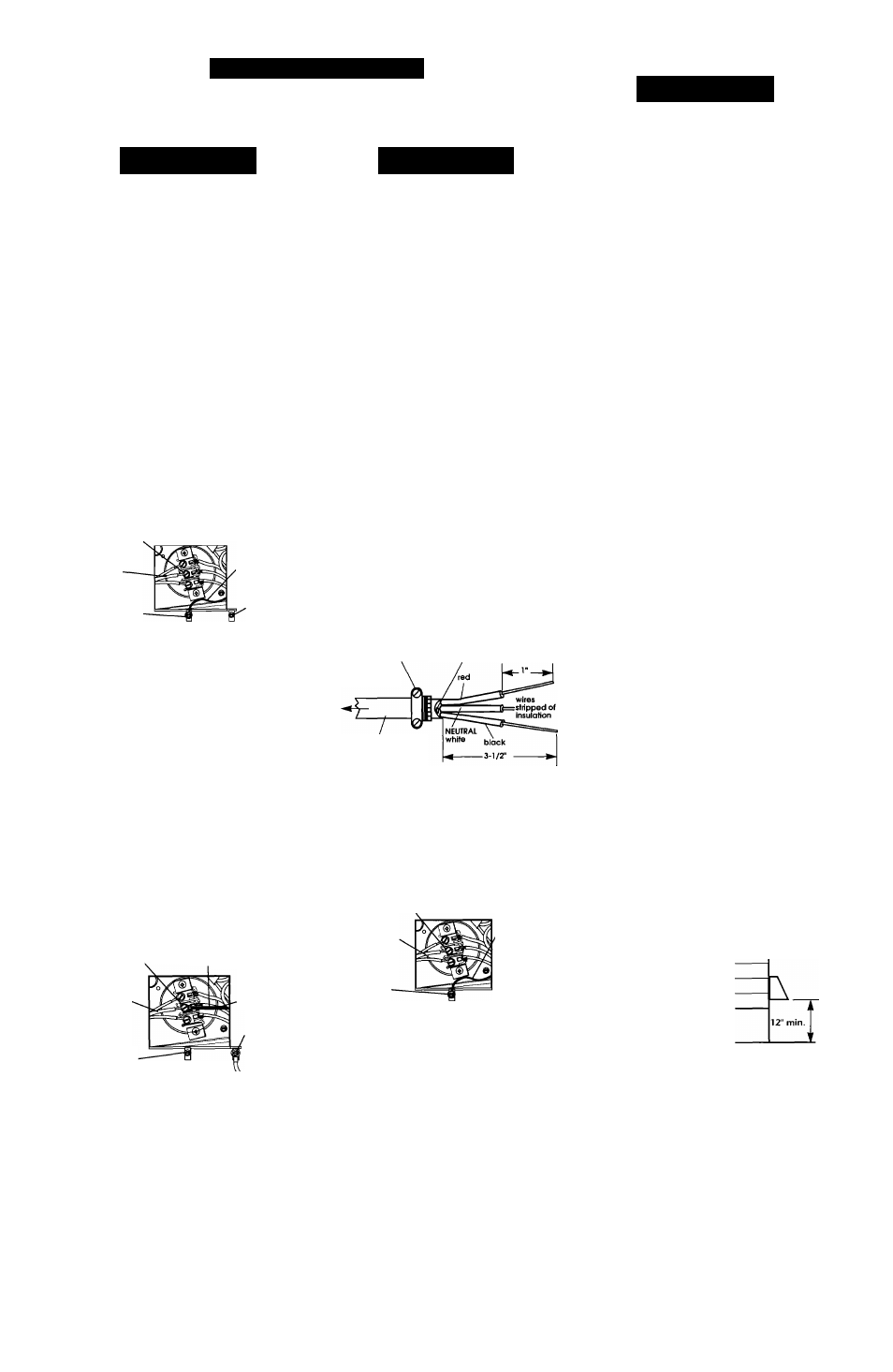

B.
Three-wire connection...
Where local codes permit
connecting cabinet-around
conductor to the neuTral wire:
^WARNING
JÉ
Fire Hazard
Use a new UL approved 30 ampere
power supply cord.
Use a UL approved strain relief.
Disconnect power before making
electrical connections.
Connect neutral wire (white or center
wire) to center terminal (silver).
Ground wire (green or bare wire) must
be connected to green ground
connector.
Connect remaining 2 supply wires to
remaining 2 terminals (gold).
Securely tighten all electrical
connections.
Failure to do so can result in death,
fire, or electrical shock.
POWER SUPPLY CORD
OR DIRECT WIRE
center silver-colored
terminal block screw
neutral
(white or
center)
internal
cabinet-
ground
connector.
appliance
harness
ground wire
(green with
yellow
stripes)
external
cabinet-
ground
connector
Figure 9
1. Disconnect the power supply.
2. Remove terminal block cover
(see Figure 5).
3. Install copper three-wire power supply
cord through strain relief,
4. Connect the neutral wire (white or
center) of the power supply cord to the
center, silver-colored terminal screw of
the terminal block. Connect the other
wires to the outer terminals. Tighten
screws firmly.
5. Tighten strain relief screws,
6. Replace the terminal block cover.
Where local codes permit DO NOT
permit connecting the cabinet-
round conductor to the neutral
white) wire:
POWER SUPPLY CORD
OR DIRECT WIRE
I
center silver-
colored terminal
block screw,
neutral
(white or
center)
internal
cabinet
ground
connector-
appliance harness ground
wire (green with yelTow
stripes)
external
cabinet-
ground
connector
external
ground wire
Connect separate copper ground wire from external
ground connector to approved ground.
Figure 13
1. Disconnect the power supply.
2. Remove terminal block cover (see
Figure 5).
3. Install solid copper, power supply cord
or cable through strain relief.
4. Remove the appliance harness ground
wire (green with yellow stripes) from the
internal ground connector,
5. Connect the ground wire (green with
yellow stripes) and the neutral (white)
wire of the power supply cord or direct
wire cable to the center, silver-colored
terminal screw of the terminal block.
Connect the other wires to the outer
terminals. Tighten screws (see Figure 13).
Where local codes permit
connecting cabinet-ground
conductor to the neuTral wire of the
power suppiy cable:
^WARNING
M
Fire Hazard
Use 10 gauge solid copper wire.
Use a UL approved strain relief.
Disconnect power before making
electricai connections.
Connect neutral wire (white or center
wire) to center terminai (silver).
Ground wire (green or bare wire) must
be connected to green ground
connector.
Connect remaining 2 suppiy wires to
remaining 2 terminals (gold).
Securely tighten all electrical
connections.
Faiiure to do so can resuit in death,
fire, or electrical shock.
DIRECT WIRE
1. Disconnect the power supply.
2. Remove terminal block cover (see
Figure 5).
3. Strip 3-1/2 inches of outer covering from
end of cable. If using three-wire cable
with ground wire, cut the bare wire even
with outer covering. Strip 1 inch of
insulation from the end of each
insulated wire (see Figure 10).
3/4" U.L.-listed
strain reiief
to disconnect
box
Bare wire cut short. Wire is not
used. Dryer is grounded
through direct wire cable.
10-gauge, 3-wire or,
10-gauge, 3-wire with
ground wire (Romex)
Direct wire preparation
Figure 10
r
U-shaped
hook
Shape the end of each wire into
a "U" shaped hook (see Figure
1 1 ),
Figure 11
center siiver-coiored
terminai biock screw
neutrai
(white or
center)
intemai
cabinet-
ground
connector
appiiance
harness
ground wire
(green with
yeiiow
stripes)
extemai
cabinet­
__^ ground
connector
Figure 12
4. Install copper, three-wire power supply
cable through strain relief.
5. Slide the hook end of the neutral (white
or center) wire from the three-wire
power supply cable under the center,
silver-colored terminal screw of the
terminal block. Squeeze the hook end
of the wire together. Tighten screw.
6. Connect the other wires to the outer
terminals using the same method.
Tighten screws firmly (see Figure 12).
7. Tighten strain relief screws.
8. Replace the terminal block cover.
6. Connect a separate copper ground wire
(No.-10 minimum) from the external
ground screw to an adequate ground.
7. Tighten strain relief screws.
8. Replace the terminal block cover.
Exhaust requirements
ÀWARNING
M
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to follow these instructions
can result in death or fire.
Important: Observe all governing codes
and ordinances.
It is recommended that you exhaust
your dryer to the outside for best
performance. Moisture and lint indoors
may cause:
• Lint to gather around the dryer where
it can be fuel for a fire.
• Moisture damage to woodwork,
furniture, paint, wallpaper, carpet,
etc.
• Housecleaning problems and health
problems.
If the washer/dryer is installed in a
confined area such as a bedroom,
bathroom or closet, it must be
exhausted to the outside and provision
must be made for enough air for
ventilation. Check governing codes and
ordinances. Also refer fo the "Recessed
and closet installation instructions" on
Panel G.
Four-inch heavy metal exhaust vent and
clamps must be used. Dura Safe'^ vent
products are recommended.
Dura Safe™ vent products can be
purchased from your dealer or by
calling Whirlpool Parts & Accessories
1-800-442-9991 (CST).
Visit our internet site at
http://whirlpoolappliances.com/accessories.
Four-inch cfiameter vent must be used.
Use a heavy metal vent. Do not use pl(3stic or
metal foil vent,
• Do Not use non-metal flexible vent, or
exhaust hoods with magnetic latches.
• Do Not exhaust dryer into a chimney,
furnace, cold air vent, attic or crawl space,
or any other vent used for venting.
• Do Not install flexible vent in enclosed walls,
ceilings or floors.
Rigid metal vent is recommended to prevent
crushing and kinking.
Flexible metal vent must be fully extended
and supported when the dryer is in its fiixil
position.
Remove excess flexible vent to avoid
sagging and kinking that may result in
reduced air flow.
An exhaust hood should cap the exhaust
vent to prevent rodents and insects from
entering the home.
Exhaust outlet hood must
be at least 12 inches from
the ground or any object
that may be in the path of
the exhaust (such as
flowers, rocks or bushes,
etc.).
If using an existing exhaust
system, clean lint from entire length of system
and make sure exhaust hood is not plugged
with lint. Replace any plastic or metal foil vent
with rigid metal or flexible metal vent.
Use clamps to seal all joints. Do not use duct
tape, screws or other fastening devices that
e)4end into the interior of the vent to secure
yent.
Service check: Back pressure in any exhaust
system used must not exceed 0.2 inches in
water column mecqsured with an inclir^e
manometer at the point thcqt exhaust vent
connects to dryer.
Panel C
