Cleaning and Caring
Continued
Cleaning the condenser
A
warning
Personai Injury and
Product Damage Hazard
’ Be sure the ice maker is OFF and discon
nected from the main power suppiy. Unit
couid suddeniy start if not disconnected.
Condenser fan rotation, sharp condenser
fins and hot tubing could cause personal
injury.
' Condenser fins can bend easiiy. Use care
when vacuuming the condenser to keep
from bending the fins.
3.
Disconnect electrical power supply to the ice
maker and turn the Cycle Control Knob to
“OFF.”

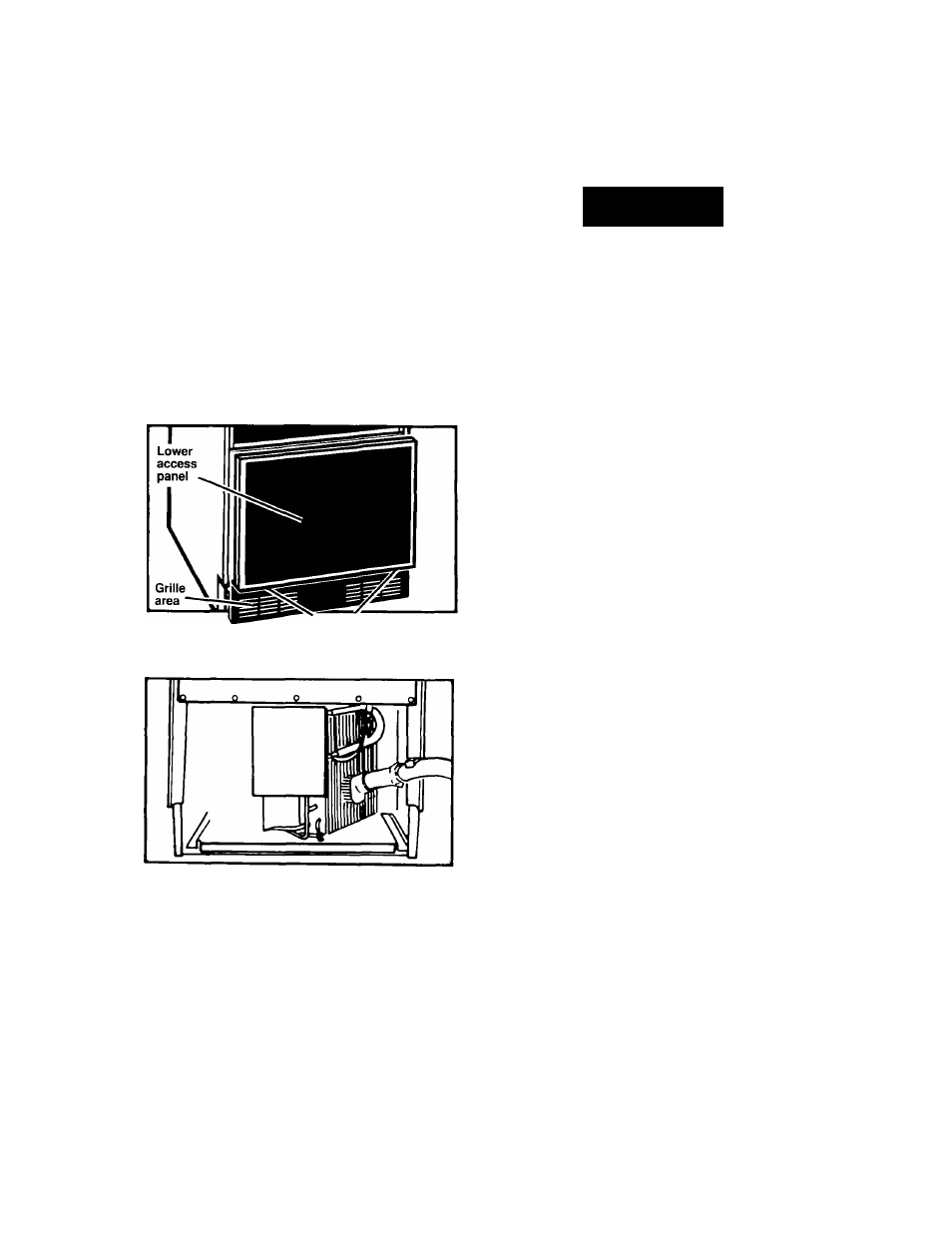

Remove the two screws from the grille area of
the lower access panel.
Pull forward and down to remove the panel.
Screws
Remove dirt and lint from the condenser fins
and the unit compartment with a brush attach
ment attached to a vacuum cleaner.
Replace the lower access panel and screws.
The top of the access panel needs to be
secured under the two metal tabs before
replacing the screws.
Plug unit in and turn the Cycle Control Knob to
“ON.”
