Cleaning the interior
components

warning

Electrical Shock and

Product Damage Hazard

• Do not operate ice maker with lower

access panel or control panel removed.

Electrical shock or personal injury could
result.

• Do not wash plastic parts in dishwasher.

They cannot withstand temperatures
above 145°F(63°C).

1. Turn the Cycle Control Knob to “OFF” and

disconnect the electrical power supply to the

machine. Open the storage bin door and
remove any ice that is in the bin.

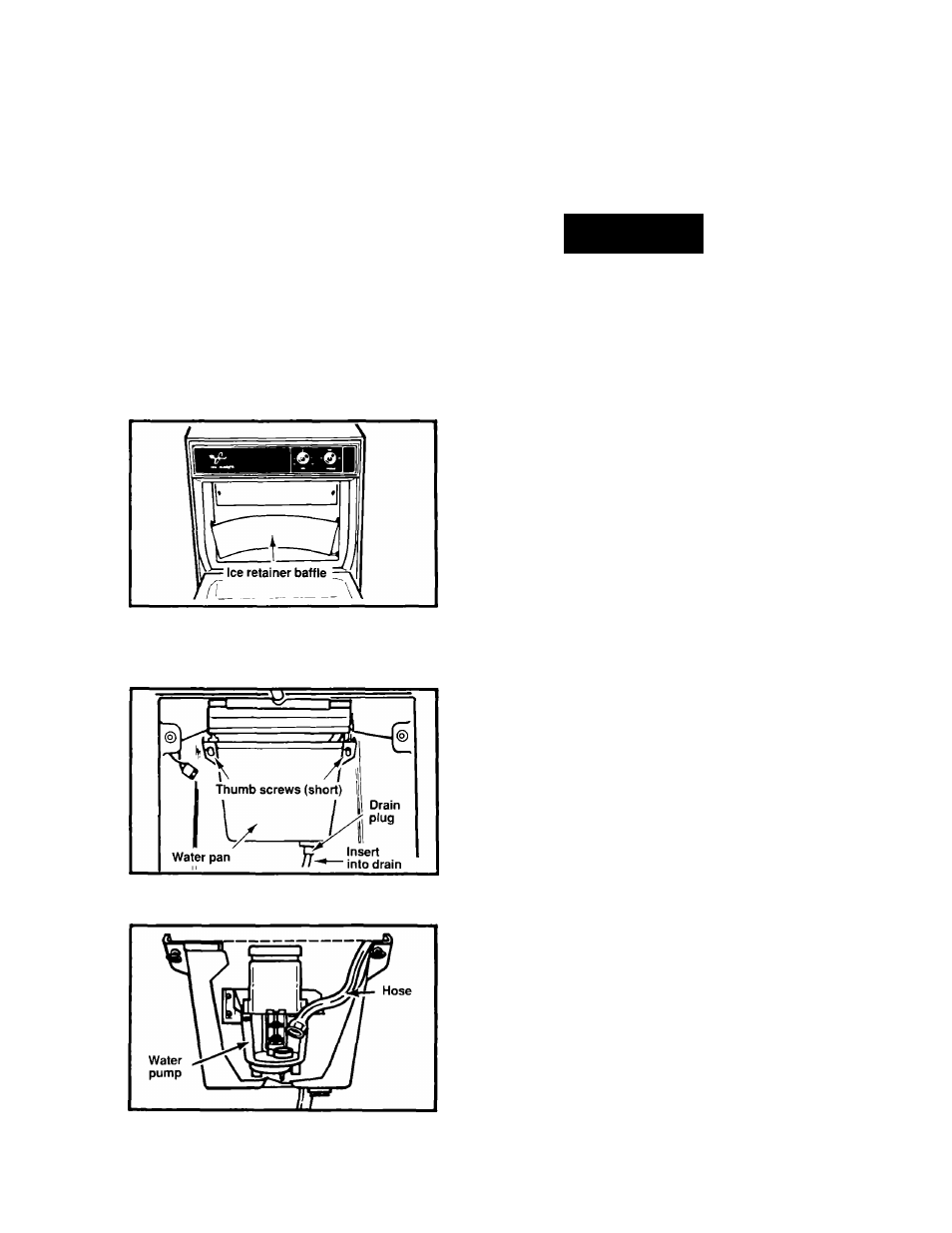

2. Remove ice retainer baffle by flexing it and

then slide it off the studs.

3. Remove the ice cutter grid by unscrewing the

two thumb screws, sliding the grid fonward and

unplugging the electrical wire harness.

i i

4. Remove the water pan by unscrewing and

removing the two thumb screws and washers.

5. Remove the hose from the water pump.
