Whirlpool EVISHEXP - Manual (Page 7)

Optional automatic ice maker...
If you have the automatic ice maker accessory or
plan to add one later (Part No. ECKMF-83 and wiring
harness 1103831), there are a few things you will need
to know:
• The ON ' OFF lever is a wire signal arm
Down ..for making ice automatically.
Up to shut off the ice maker
• Shake the bln occasionally to keep cubes sepa­
rated, and to obtain increased storage capacity.

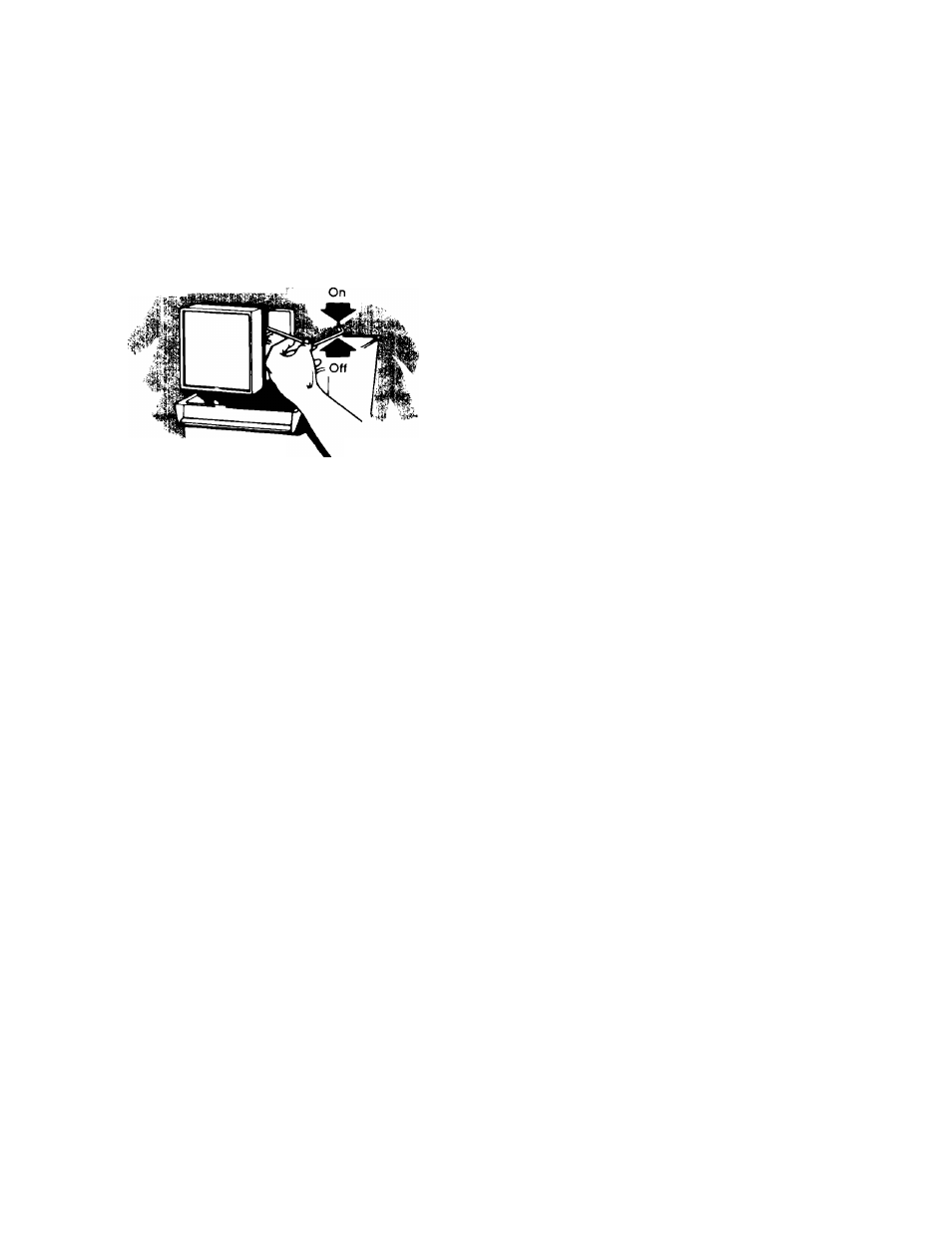

Lower Signal
Arm to Start It.
Raise Signal
Arm to Stop Ice Maker.
• It is normal for ice crescents to be attached by a
corner. They will break apart easily.
• You will hear water running when ice maker is
working. You'll hear ice fall into the bin. Don't let
these sounds bother you
• The ice maker will not operate until the freezer is
cold enough to make ice. This can take overnight.
• Because of new plumbing connections, the first
ice may be discolored or off-flavored. Discard the
first few batches of ice
• If you remove the ice bin, raise the signal arm to
shut off the ice maker. When you return the bin,
push it all the way in and lower the arm to the ON
position.
• If cubes are stored too long, they may develop an
off-flavor , like stale water. Throw them away. They
will be replaced. Cubes in the ice bin can also
become smaller by evaporation
• The ice maker water supply should not be soft­
ened water. The chemicals could damage the ice
maker molds.
Energy saving tips...
You can help your freezer use less electricity,
• Check door gasket and level freezer to assure a
good door seal.
• Clean the condenser coils regularly.
• Keep door openings to a minimum. Remove several
items at one time. Keep contents organized to elimi­
nate searching.
• Fill to capacity. Follow recommended procedures
for freezing foods. See pages 9 and 10
• Set Temperature Control to provide temperatures
around O'F ( -17,8'-C), There is no need to store foods
below O F.
• Keep door locked to ensure door closure.
• Keep Power Saving Control on CFF when humidity is
low.
Cleaning your freezer
This freezer is a No-Frost model and defrosts automatically Complete
cleaning, however, should be done at least once a year
To clean:
1 Turn Temperature Control to CFF
2 Unplug power cord
3 Take out all food
Note: Wrap frozen foods and packages in several
layers of newspaper and cover with a blanket Food
will stay frozen for several hours
4. Remove shelves and basket,
5, Clean freezer according to the following directions.
After cleaning:
1, Replace shelves and basket.
2, Plug in power cord.
3, See directions for "Setting the Temperature Con­
trol," page 5,
WARNING: When moving the freezer, wipe up
any water that may have spilled
from the defrost pan. Spilled water
can cause slipping and injury.
