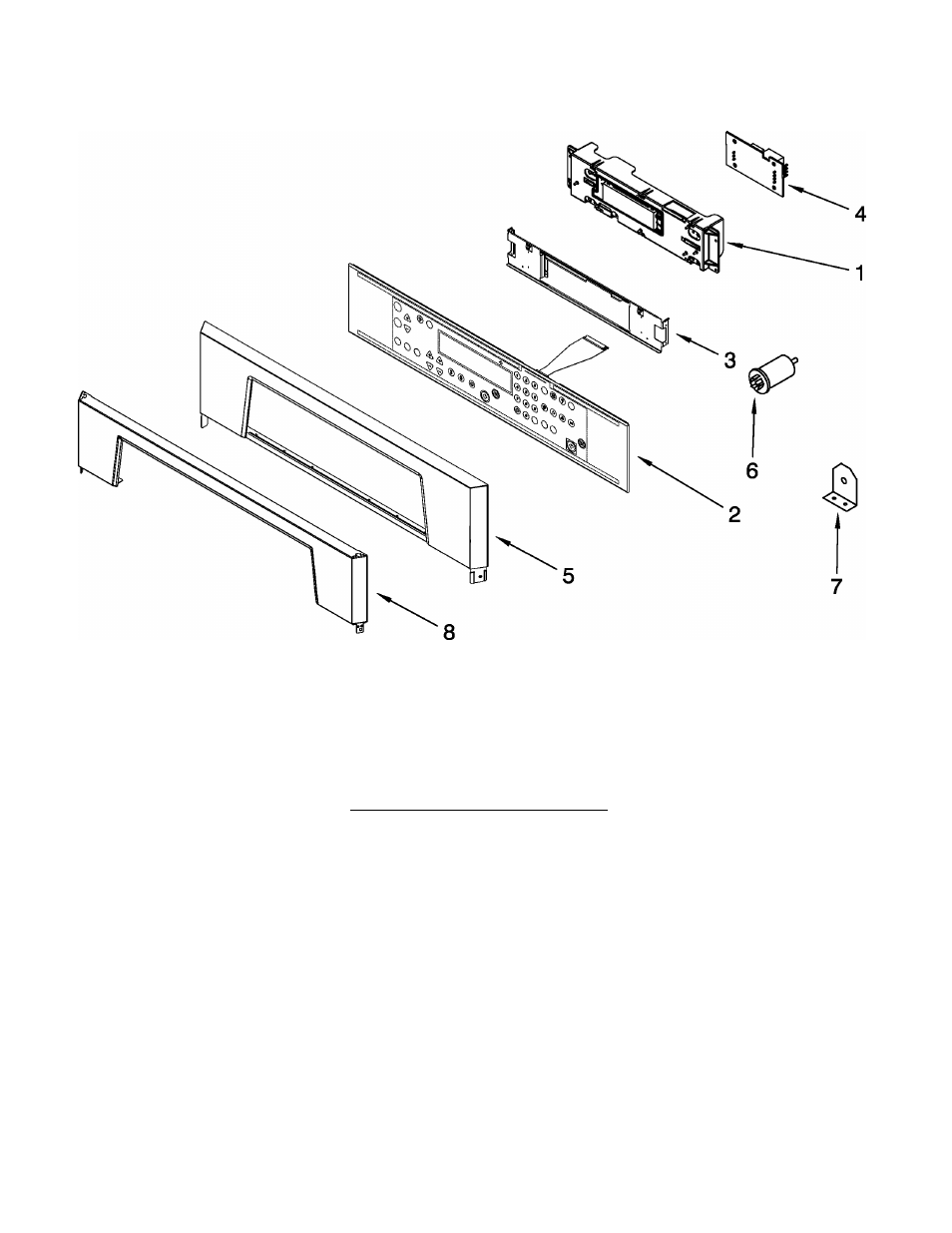

CONTROL PANEL PARTS
For Models:GMC305PRB00, GMC305PRQ00, GMC305PRT00, GMC305PRS00
(Black)
(White) (Biscuit) (S.Steel)
Illus. Part
No.
No.
DESCRIPTION
1
8303819 Assy, Control
2
Assy, Switch
8303183 Black & Steel Mdl
8303225 White Model
8303231 Biscuit Model
3
8302990 Backer, Control
8281179 Screw
4
8301848 Board, Mtrzd Latch
5
Control Panel
8302848 Black & Steel Mdl
8302849 White Model
8302850 Biscuit
4449745 Screw
6
4451592 Filter
7
4451632 Bracket, Filter
8
8302877 Trim-Panel
(Use on S.Steel
model only)
8186303
FOR ORDERING INFORMATION REFER TO PARTS PRICE LIST
