DMX-1655 Manual Version 1.11 15 15 15 15
Pre-programmed shows

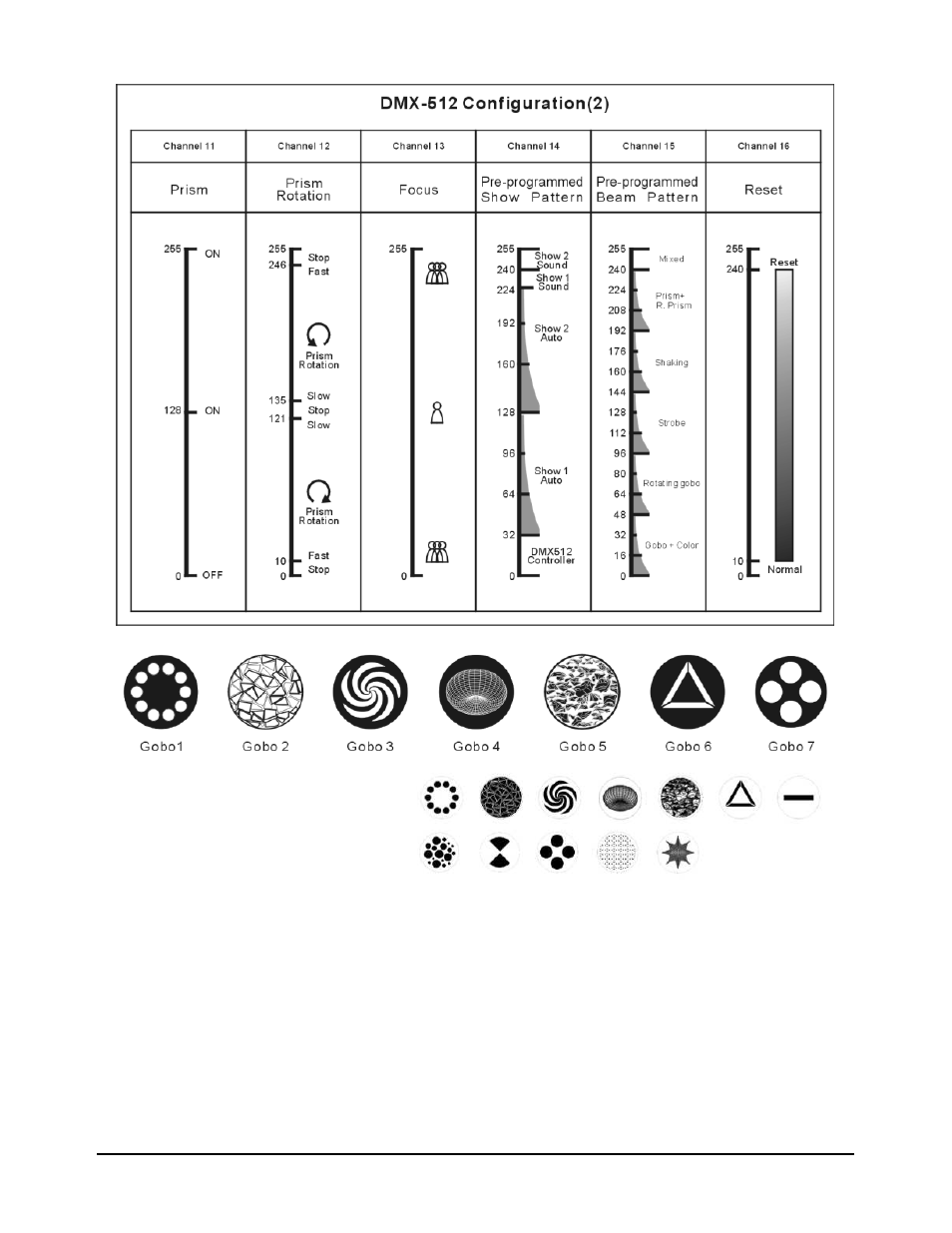

Channel 14 - As illustrated above, beginning on values 32 the stand alone shows are user selectable while in DMX control mode.
All other control except pre-programs on channel 15 becomes inactive.
Channel 15 – As illustrated above and in tandem with the selection of a pre-programmed show on channel 14 various beam
pattern programs can also be selected.
The Legend 250RX
includes the following
extra gobos shown
here on the right!
