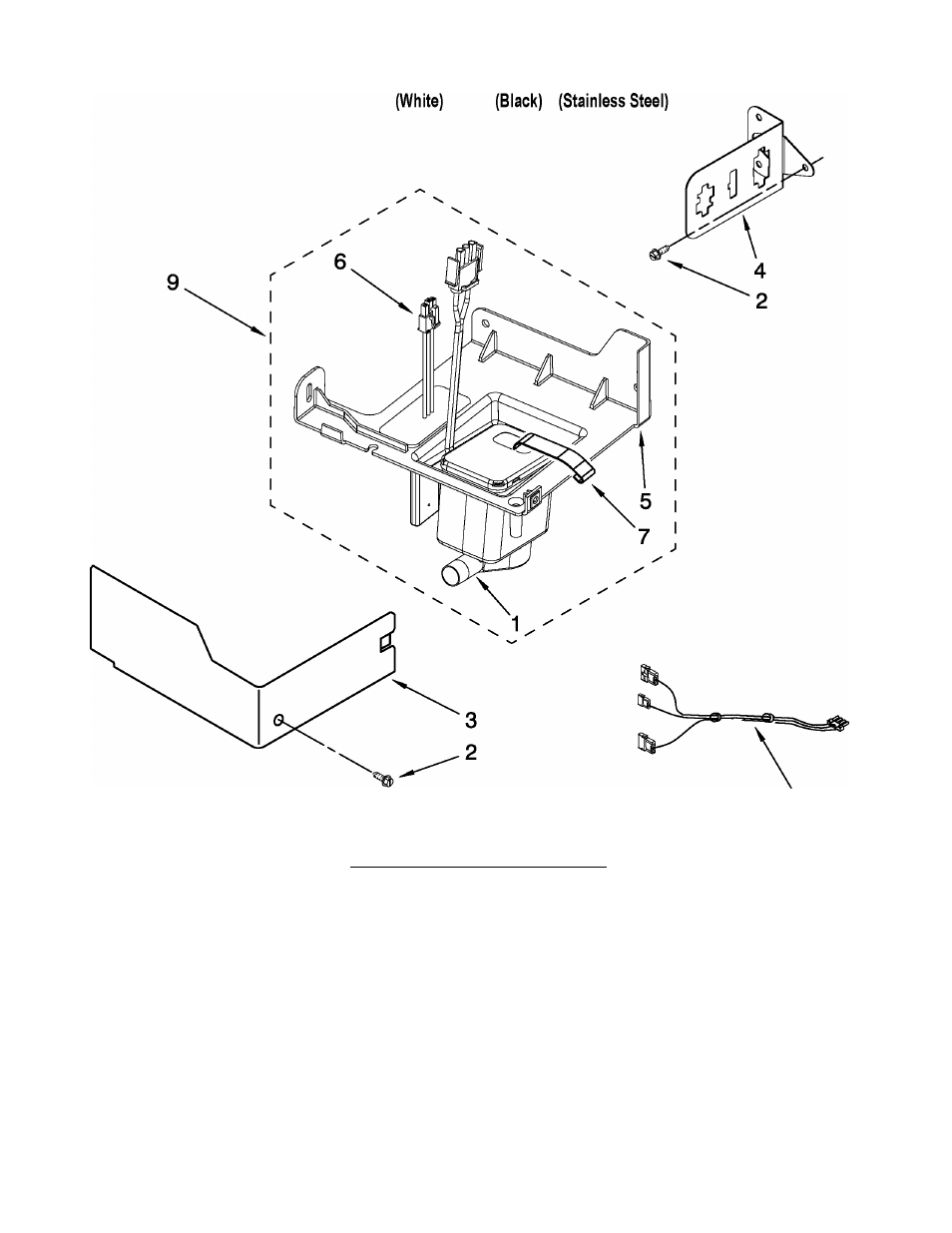

PUMP PARTS
For Models: GI15NDXTQ0, GI15NDXTB0 ,GI15NDXTS0
8
Illus. Part
No. No. DESCRIPTION
1
2313628 Pump-Recirculating
2
3400884 Screw 8-18 x 5/8
3
2185677 Cover, Pump
4
2313844 Bracket, Connector
Assembly
5
2313627 Bracket-Pump
6
2313643 Sensor-Water Level
7
2324307 Clip-Retainer
8
2310092 Wiring Harness
Main To Pump
9
2313702 Pump Assembly
W10121778
FOR ORDERING INFORMATION REFER TO PARTS PRICE LIST
