ENGLISH 100133
ASSEMBLy
12.5
其余

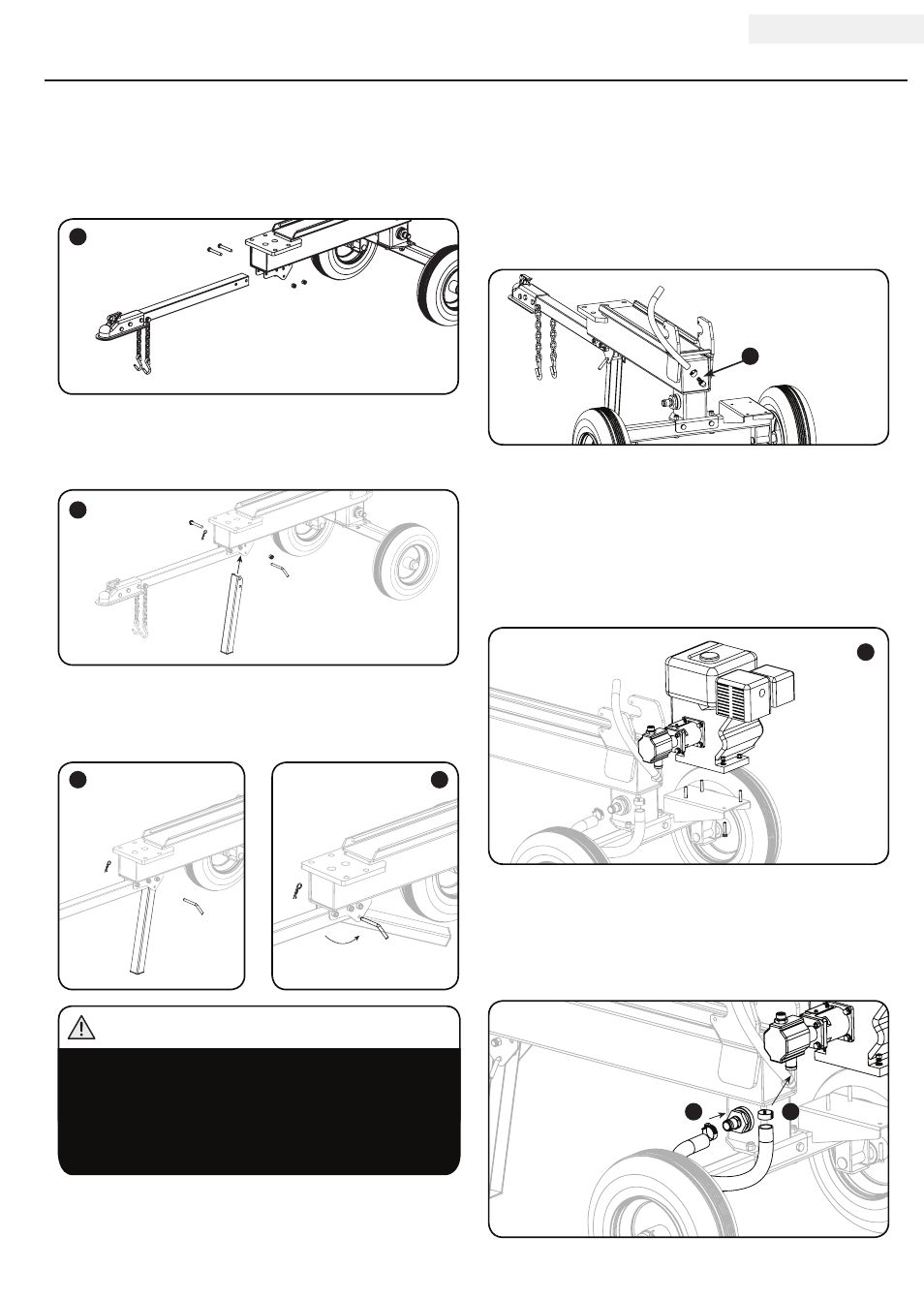

3) Install the Tow Bar and Support Leg
1 . Attach the tow bar to the bracket on the bottom of
the splitting beam opposite the axle . Secure with
two (2) M12x80 bolts and M12 lock nuts . (A)
4) Install the Hydraulic Hose (Tank)
1 . Using a clamp d25, connect and secure the
hydraulic hose to the back of the beam/base of the
tank . (A)
2 . Leave the other end of hose unconnected at this
time .
5) Install the Engine and Hydraulic Hose (pump)
1 . Place the engine on the engine bracket with the pump
facing the cylinder . (A)
2 . Line up the holes in the base of the engine and secure
the engine with four M8x40 bolts, M8 washers, M8 lock
washers and M8 nuts . Tighten to 18 ft-lb . (A)
2 . Attach the support leg to the same bracket on
the bottom of the splitting beam . Secure with one
M12x80 bolt and M12 lock nut . (B)
3 . Secure the support leg in the vertical/horizontal
position by inserting the L-pin through the bracket
and support leg and securing with hair pin clip . (C)
Do not tow with support leg in the down position
or if loose . The support leg must be locked in the
upright position before towing . Towing the unit with
the support leg in the down position or loose may
cause property damage and/or injury .
WARNING
3 . Connect the oil pipe to the connection on the bottom of
the pump . Secure with the d25 clamp . (B)
4 . Connect the other end of the oil pipe to the connection
on the base of the beam/tank . Secure with the d25
clamp . (C)
B C
A
A
A
B
C C
