8

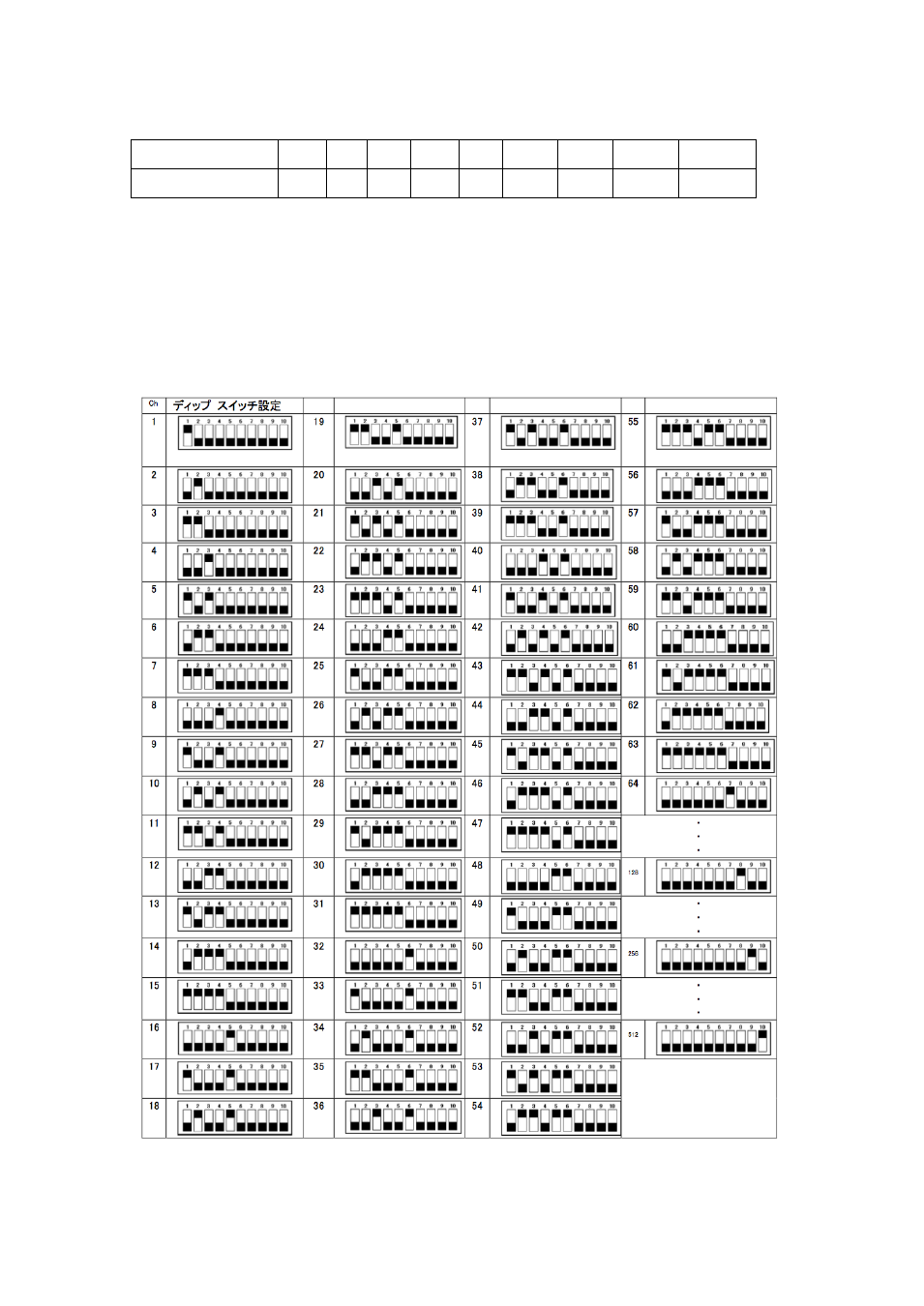

Dip Switch Corresponding Chart
Channel No.
1
2
4
8
16
32
64
128
256
Dip Switch
1
2
3
4
5
6
7
8
9
Example 1: Set DMX starting address to 69
Dip switch # 7 = 64 channel
Dip switch # 3 = 4 channel
Dip switch # 1 = 1 channel
Total = 64 + 4 + 1 = 69 channel
